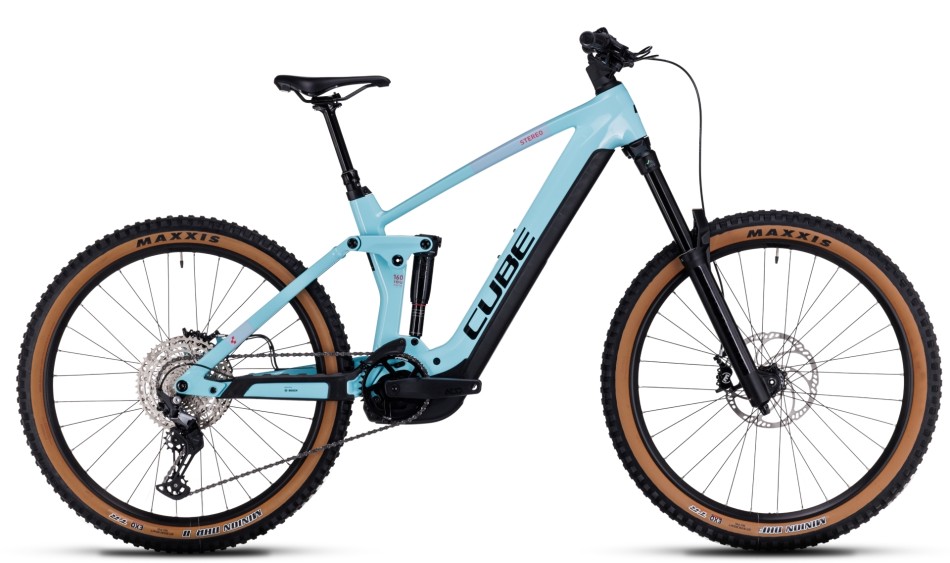

Cube Stereo Hybrid 160 HPC Race 2024 Ice/Black eMTB

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

An enduro-capable bike with Bosch power? You’d better believe it. The Stereo Hybrid 160 HPC’s carbon main frame is built to house the Modular Battery System – including a battery up to 750Wh – and fourth-generation Bosch drive unit, in a full range of sizes to suit almost every rider.

Practicality is key so, for example, there’s room for a bottle cage, and the battery cover has push-button access. On the handling front we’ve incorporated race-inspired geometry, a Boost 148 rear end and 1.5in head tube for on-demand cut-and-paste line choices, no matter how rowdy the trail.

With a trunnion shock mount, oversize linkage bearings and internal cable routing, you can be assured of minimal maintenance downtime and maximum trail fun time.

Mountain taming never used to be this exciting. The stereo hybrid 160 hpc race blends boulder-swallowing suspension with race-inspired agility, carbon frame technology and the power boost of bosch’s smooth, quiet and durable fourth-generation drive system. Are you up for it? Because this bike definitely is.

Specification

Frame	C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Fork	RockShox Domain R, Tapered, 15×110mm, eMTB Approved, 170mm
Shock	RockShox Deluxe Select, 205×65mm, Rebound Adjust, Trunnion Mount
Shock Hardware	Top: 54mm Trunnion Mount, Bottom: 22.2×8mm
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Remote	Bosch LED Remote
Display	N/A
Charger	Bosch 4A (2.3h 50% – 6h 100%)
Brake System	Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear Derailleur	Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano Deore SL-M6100, Rapidfire-Plus
Crankset	ACID E-Crank, 165mm, 36T
Chain Guide	Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	Shimano CN-M6100
Front Hub	Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub	Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims	CUBE EX30, 32H, Disc, Tubeless Ready
Front Tyre	Maxxis Minion DHF, Dual/EXO, Tubeless Ready, 2.5 WT
Rear Tyre	Maxxis Minion DHR II, Dual/EXO, Tubeless Ready, 2.4 WT
Stem	CUBE Performance Stem E-MTB, 31.8mm
Handlebar	Newmen Evolution SL 318.25, 800mm
Grips	ACID React Pro
Seat Post	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
Seatclamp	CUBE Screwlock Semi Integrated, 34.9mm
Saddle	Natural Fit Venec
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm)
Maximum Rider/Bike Weight	135kg – The weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded.
Max System Weight	150kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage attached to the bike combined
Quoted Weight	24.60kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	158cm (5’3”)	168cm (5’6”)
Medium	168cm (5’6”)	175cm (5’9”)
Large	175cm (5’9”)	185cm (6’1”)
X Large	185cm (6’1”)	193cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL
Seat Tube	370	420	460	490
Top Tube Horizontal	570	600	630	660
Seat Tube Angle	76	76	76	76
Head Tube Angle	65	65	65	65
Chainstays	441.5	441.5	441.5	441.5
Head tube	108	120	132	150
Wheelbase	1193.2	1224.7	1256.2	1288.5
BB-Height To Hub	12.5	12.5	12.5	12.5
Standover Height	763	769.9	769.3	792.6
Reach	426.9	453.4	479.8	504.5
Stack	605.2	616.1	626.9	643.3
Crank Length	165	165	165	165
Max Tyre width	67	67	67	67
Seat Post Length	370	420	480	480
Seatpost Diameter	31.6	31.6	31.6	31.6
Stem Angle	12	12	12	12
Crank Length	165	165	165	165
Diameter Tyre Maximum	726	726	726	726
Width Tyre Maximum	67	67	67	67
Stem Length	50	50	50	50
Handlebar Width	800	800	800	800
Seat Post Drop	100	125	150	150

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
