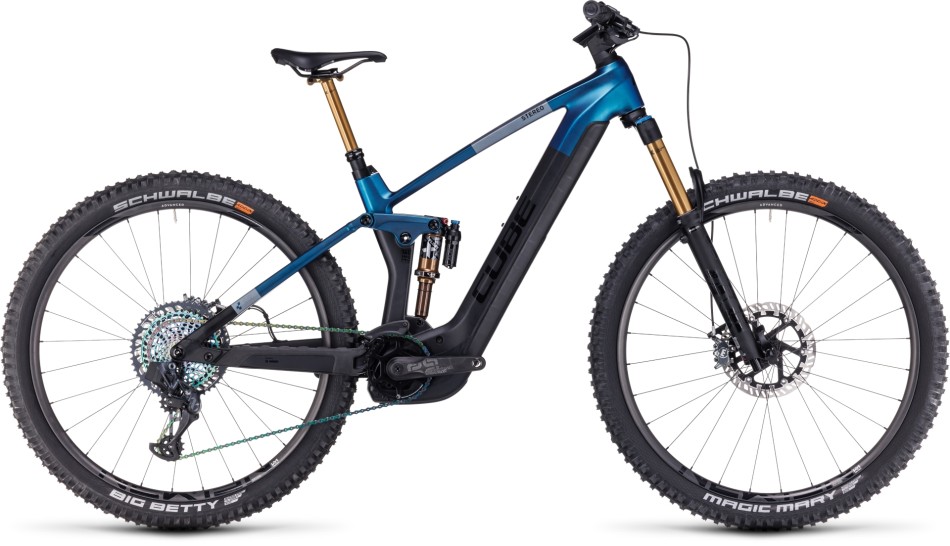

Cube Stereo Hybrid 140 HPC SLT 2024 Nebula/Carbon eMTB

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

Evolution never stops. That’s why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best.

The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you’re exploring the limits of the 140mm rear and 150mm front travel.

Sram’s UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.

Big mountain trails take no prisoners, which is why we equipped the stereo hybrid 140 HPC SLT 750 with the very best components we could find.

From the wireless transmission to the fox suspension and bosch cx drive unit, it’s all designed to take on the ups and downs of all-mountain riding and bring you out on top.

Video

Specification

Frame	C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Wheel Size	27.5” – Small / 29” – Medium, Large, X Large
Fork	Fox 36 Float Factory FIT GRIP2, Tapered, 15×110mm, E-Bike Tune, 150mm, Kashima Coated
Shock	Fox Float X Factory, 205×60mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Shock Hardware	Top: 54mm Trunnion Mount, Bottom: 22.2×8mm
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Remote	Bosch LED Remote
Display	Bosch Kiox 300
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Magura MT7, Hydr. Disc Brake (203/203)
Rear Derailleur	Sram XX1 Eagle AXS™, 12-Speed
Shifter	Sram Eagle AXS™ Controller
Crankset	e*thirteen Plus Crank, 165mm, 34T
Chain Guide	Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Cassette	Sram XG-1299 Eagle™ Rainbow, 10-52T
Chain	Sram PC-XX1 Eagle™ Rainbow
Wheelset	Newmen Advanced SL A.30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tyre	Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Rear Tyre	Schwalbe Big Betty, Super Trail, Addix Soft, Kevlar, 2.4
Stem	CUBE Performance Stem E-MTB, 31.8mm
Handlebar	Newmen Advanced 318.25, Carbon, 780mm
Grips	ACID Disrupt, Soft Compound
Seat Post	Fox Transfer Factory 31.6mm, Kashima Coated (M,L: 150mm, XL: 175mm)
Seatclamp	CUBE Screwlock Semi Integrated, 34.9mm
Saddle	Natural Fit Venec
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mThe weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded.
Maximum Rider/Bike Weight	135kg – The weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded.
Max System Weight	160kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined
Quoted Weight	23.90kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	158cm (5’3”)	168cm (5’6”)
Medium (29” Wheels)	168cm (5’6”)	175cm (5’9”)
Large (29” Wheels)	175cm (5’9”)	183cm (6’0”)
X Large (29” Wheels)	183cm (6’0”)	191cm (6’3”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S 27.5	M 29	L 29	XL 29
Seat Tube	370	420	460	490
Top Tube Horizontal	570	600	630	660
Seat Angle	76	75.5	75.5	75.5
Head Tube Angle	66	66	66	66
Chainstays	450	457	457	457
Head Tube	120	108	120	138
Wheelbase	1187.3	1220.7	1251.6	1282.9
BB-Height to Hub	15.5	36	36	36
Reach	426	446.8	472.8	496.8
Stack	607	625.5	636.5	652.9
Standover Height	764.4	762.6	784.6
Seat Post Length	636.5	418.3	418.3	475.1
Seat Post Diameter	31.6	31.6	31.6	31.6
Stem Angle	12	12	12	12
Crank Length	165	165	165	165
Diameter Tyre Maximum	726	765	765	765
Width Tyre Maximum	67	67	67	67
Stem Length	50	50	50	60
Handlebar Width	780	780	780	780
Seatpost Drop	125	150	150	175

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
