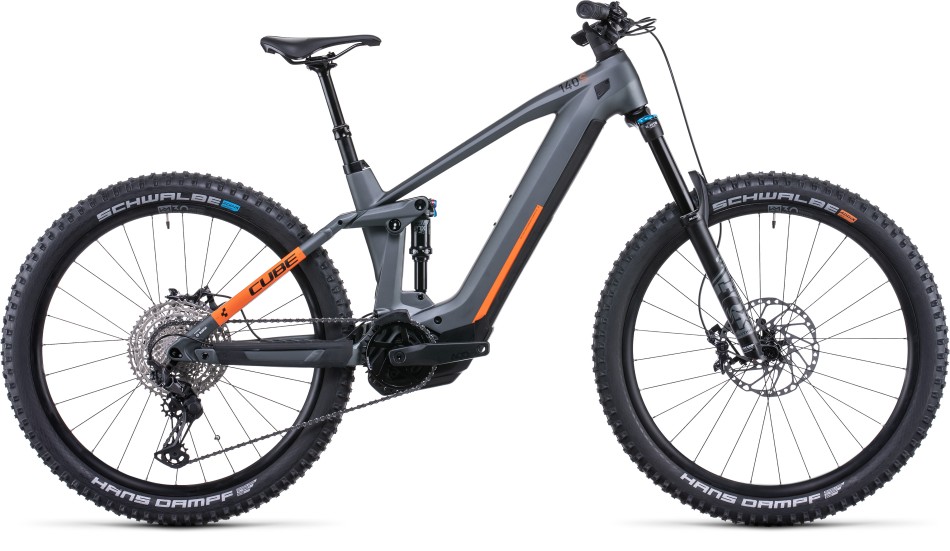

Cube Stereo Hybrid 140 HPC SL 27.5 2022 Small Grey/Orange eMTB
Cube Stereo Hybrid 140 HPC SL 29 2022 Grey/Orange eMTB
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Elite 240 C:62 Pro 2023 Carbon/Blue/Red 24" Kids Bike
Starting at: £1,499.99
-
Cube Aim Pro 2023 Grey/Yellow Mountain Bike
Starting at: £397.99
-
Cube Reaction Hybrid Pro 750 2023 Sky/Black eBike
Starting at: £2,378.99
Details
Looking for bigger frame sizes of this bike? Click here.
The better sorted a bike is, the less you’ll notice it when you’re riding. That’s why, for the compact-framed Stereo Hybrid 140 HPC SL 625, we began by choosing a Fox 34 Rhythm fork and matching Float DPS EVOL shock.
Combined with the Newmen wheelset and Schwalbe 2.6in tyres, it’s the closest thing to a magic carpet ride. Bosch’s fourth-generation CX drive unit and 625Wh battery delivers your power to the trail via Shimano’s slick-shifting, super-reliable XT 1×12 transmission.
Strong, progressive Shimano XT four-piston hydraulic disc brakes with oversize rotors bring you safely to a stop, on demand.
With a remote dropper post thrown into the mix, you’ll be wondering how you ever managed without it. Simply add your spirit of adventure.
Specification
| Frame | C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing |
| Wheel Size | 27.5” |
| Fork | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15×110mm, E-Bike Optimized, 150mm |
| Shock | Fox Float DPS EVOL, 185×55mm, Open/Medium/Firm Mode, Trunnion Mount |
| Shock Hardware | Top: 54mm Trunnion Mount, Bottom: 22.2×8mm |
| Drive Unit | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
| Battery | Bosch PowerTube 625 (battery weight 3.6kg) |
| Display | Bosch Kiox |
| Charger | Bosch 4A (2.1h 50% – 4.9h 100%) |
| Brake System | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| Crankset | ACID E-Crank, 165mm, 36T |
| Chain Guide | e*thirteen Plus e*spec |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
| Wheelset | Newmen Performance 30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready |
| Front Tire | Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6 |
| Rear Tire | Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6 |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Handlebar | Newmen Evolution SL 318.25, 760mm |
| Grips | ACID Disrupt, Soft Compound |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (XS, S: 100mm) |
| Seatclamp | CUBE Screwlock Semi Integrated, 34.9mm |
| Saddle | Natural Fit Venec |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm) |
| Structural Weight | 135 kg – The maximum system weight consists of the bike, rider and load (luggage rack or trailer). |
| Weight | 23,9 kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| X Small (27.5” Wheels) | 152cm (5’0”) | 158cm (5’3”) |
| Small (27.5” Wheels) | 158cm (5’3”) | 168cm (5’6”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | XS | S |
| Seat Tube | 345 | 395 |
| Top Tub Horizontal | 558.5 | 581.1 |
| Seat Tube Angle | 75.3 | 75.3 |
| Head Tube Angle | 66 | 66 |
| Chain Stays | 448 | 448 |
| Head Tube | 105 | 115 |
| Wheelbase | 1157 | 1181.1 |
| BB-Height To Hub | 15.5 | 15.5 |
| Standover Height | 731.3 | 731.5 |
| Reach | 410 | 430 |
| Stack | 579.5 | 588.7 |
| Crank Length | 165 | 165 |
| Max Tyre Width | 67 | 67 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Video
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
Write Your Own Review
