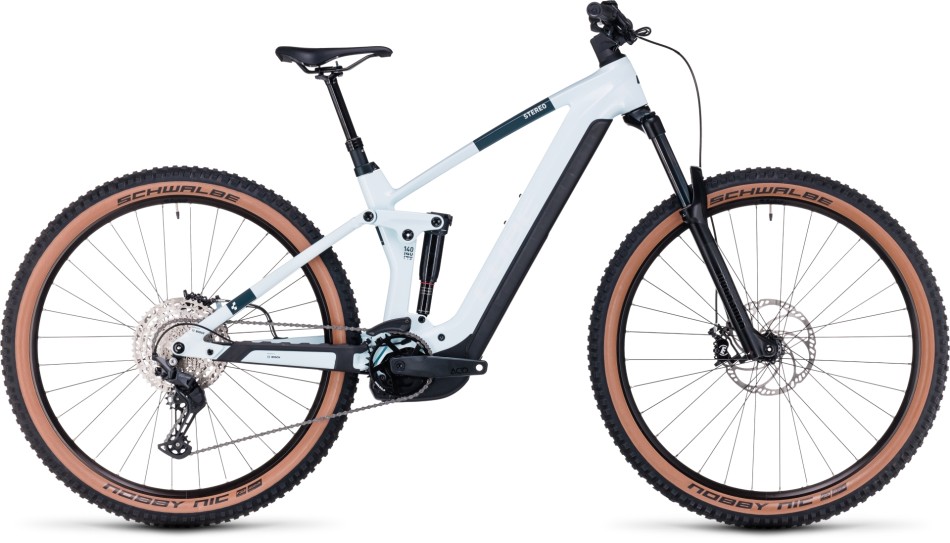

Cube Stereo Hybrid 140 HPC Pro 750 2023 Frost/Grey eMTB

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Evolution never stops. That’s why, across all frames in our SizeSplit system, the Stereo Hybrid 140 HPC now features the ability to house up to a 750Wh battery under its dust- and splash-proof cover. It means you can power the fourth-generation Bosch CX drive unit – with 85Nm of hill-devouring torque – on long rides, whatever frame size fits you best.

The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you’re exploring the limits of the 140mm rear and 150mm front travel.

Sram’s UDH gear hanger helps protect against crash damage and is easily replaceable. And Integrated Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.

Our trail-taming stereo hybrid 140 HPC Pro 750 packs a huge punch into every frame size – including the smallest.

With its large-capacity battery and sophisticated, powerful, fourth-generation bosch cx drive unit, the addition of cube kinematics and 140mm rear and 150mm front wheel travel opens up almost limitless possibilities.

Video

Specification

Frame	C:62 Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Wheels Size	27.5” – Small / 29” – Medium, Large, X Large
Fork	RockShox Recon Silver RL Air, Tapered, 15×110mm, eMTB Approved, 150mm, Lockout
Shock	RockShox Deluxe Select, 205×60mm (27.5: 185×55mm), Rebound Adjust, Trunnion Mount
Shock Hardware	Top: 54mm Trunnion Mount, Bottom: 22.2×8mm
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Remote	Bosch LED Remote
Display	N/A
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear Derailleur	Shimano Deore RD-M5100-SGS, 11-Speed
Shifter	Shimano Deore SL-M5100, Rapidfire-Plus
Crankset	Acid E-Crank, 165mm, 34 T
Chain Guide	Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Cassette	Shimano Deore CS-M5100, 11-51T
Chain	KMC X11
Front Hub	Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub	Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims	Rodi Tryp 30, 32H, Disc, Tubeless Ready
Tyres	Schwalbe Nobby Nic, PerfL, 2.6
Stem	Cube Performance Stem E-MTB, 31.8mm
Handlebar	Newmen Evolution SL 318.25, 760mm
Grips	Acid React Pro
Seat Post	Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm (M: 125mm, L,XL: 150mm)
Seatclamp	Cube Screwlock Semi Integrated, 34.9mm
Saddle	Natural Fit Venec
Headset	Acros AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm)
Quoted Weight	24.50kg
Maximum Rider/Bike Weight	135kg – The weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded.
Max System Weight	140kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small (27.5” Wheels)	158cm (5’3”)	168cm (5’6”)
Medium (29” Wheels)	168cm (5’6”)	175cm (5’9”)
Large (29” Wheels)	175cm (5’9”)	183cm (6’0”)
X Large (29” Wheels)	183cm (6’0”)	191cm (6’3”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S 27.5	M 29	L 29	XL 29
Seat Tube	370	420	460	490
Top Tube Horizontal	570	600	630	660
Seat Angle	76	75.5	75.5	75.5
Head Tube Angle	66	66	66	66
Chainstays	450	457	457	457
Head Tube	120	108	120	138
Wheelbase	1187.3	1220.7	1251.6	1282.9
BB-Height to Hub	15.5	36	36	36
Reach	426	446.8	472.8	496.8
Stack	607	625.5	636.5	652.9
Standover Height	764.4	762.6	784.6
Seat Post Length	636.5	418.3	418.3	475.1
Seat Post Diameter	31.6	31.6	31.6	31.6
Stem Angle	12	12	12	12
Crank Length	165	165	165	165
Diameter Tyre Maximum	726	765	765	765
Width Tyre Maximum	67	67	67	67
Stem Length	50	50	50	60
Handlebar Width	780	780	780	780
Seatpost Drop	125	150	150	175

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
