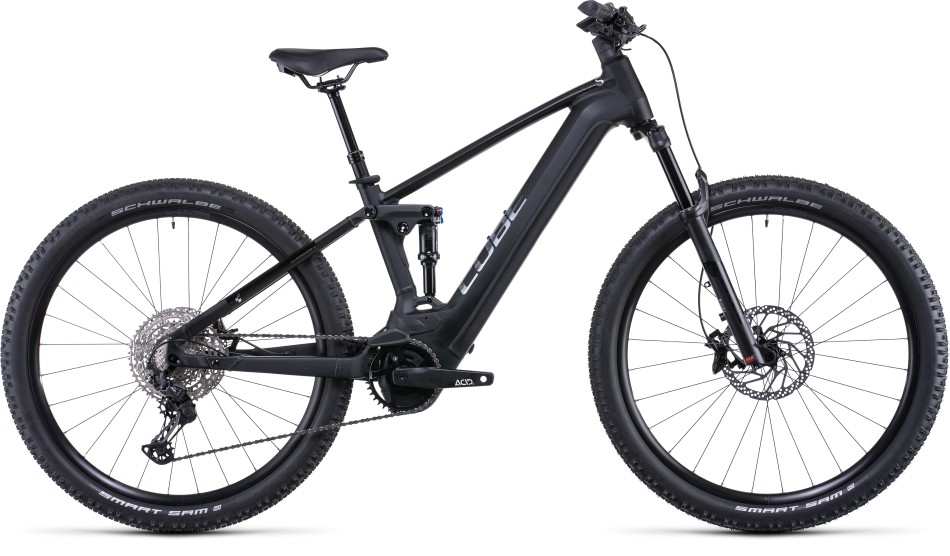

Cube Stereo Hybrid 120 SL 2022 Black/Metal eMTB
Brand new for 2022, our Stereo Hybrid 120 SL 750 frame takes everything that's great about our popular, Bosch-powered trail explorer, and makes it better.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Mondraker Podium RR SL 2025 Cross Country Bike
Starting at: £9,499.00
-
Truvativ Chainring Bolt Kit Steel 4 Arm
£7.00 -
Hope Tech V4 Brake Pads Sintered
£20.00
Details
Brand new for 2022, our Stereo Hybrid 120 SL 750 frame takes everything that’s great about our popular, Bosch-powered trail explorer, and makes it better.
With a 750Wh battery, you’ve more range than ever before to go further – and our Modular Battery System means it’s both easy to get to and safely out of reach of dust and water.
Our integrated cable routing isn’t just neat, it also means there are no cable holes in the head tube.
Comfort Control Geometry puts you in control, while the refined four-bar suspension design keeps you isolated from trail shocks and vibration. We even made it simple to add accessories like mudguards, a luggage carrier and a kickstand.
Specification
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
| Wheel Size | 29” |
| Fork | Fox Next Generation, Embargo until 31.08.21 |
| Shock | Fox Float DPS EVOL, 185×55mm, Open/Medium/Firm Mode, Trunnion Mount |
| Shock Hardware | Top: 54mm Trunnion Mount, Bottom: 30×8mm |
| Drive Unit | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Battery | Bosch PowerTube 750Wh (battery weight 4.4kg) |
| Display | Bosch Kiox 300 |
| Charger | Bosch 4A (2.1h 50% – 6h 100%) |
| Brake System | Shimano BR-MT520, Hydr. Disc Brake (203/203) |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100, Rapidfire-Plus |
| Crankset | ACID E-Crank, 170mm, 38T |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
| Wheelset | Newmen Performance 30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready |
| Tyres | Schwalbe Smart Sam, Active, 2.6 |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Handlebar | Newmen Evolution SL 318.25, 760mm |
| Grips | Natural Fit All Terrain |
| Seat Post | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (M: 120mm, L, XL: 130mm) |
| Seatclamp | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm |
| Saddle | Natural Fit Sequence |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm) |
| Pedals | CUBE PP MTB |
| Quoted Weight | 25.40kg |
| Max System Weight | 135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| Medium (29” Wheels) | 168cm (5’6”) | 175cm (5’9”) |
| Large (29” Wheels) | 175cm (5’9”) | 183cm (6’0”) |
| X Large (29” Wheels) | 183cm (6’0”) | 191cm (6’3”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | M | L | XL |
| Seat Tube | 420 | 465 | 515 |
| Top Tube Horizontal | 610 | 635 | 660 |
| Seat Tube Angle | 76 | 76 | 76 |
| Head Tube Angle | 67 | 67 | 67 |
| Chain Stays | 480 | 480 | 480 |
| Head Tube | 135 | 145 | 160 |
| Wheelsbase | 1244 | 1270 | 1296.8 |
| BB-Height to Hub | -42.5 | -42.5 | -42.5 |
| Standover Height | 783.5 | 790.9 | 831.9 |
| Reach | 454 | 476 | 496.6 |
| Stack | 647 | 656 | 669.5 |
| Max Tyre Width | 66.6 | 66.6 | 66.6 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Video
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
