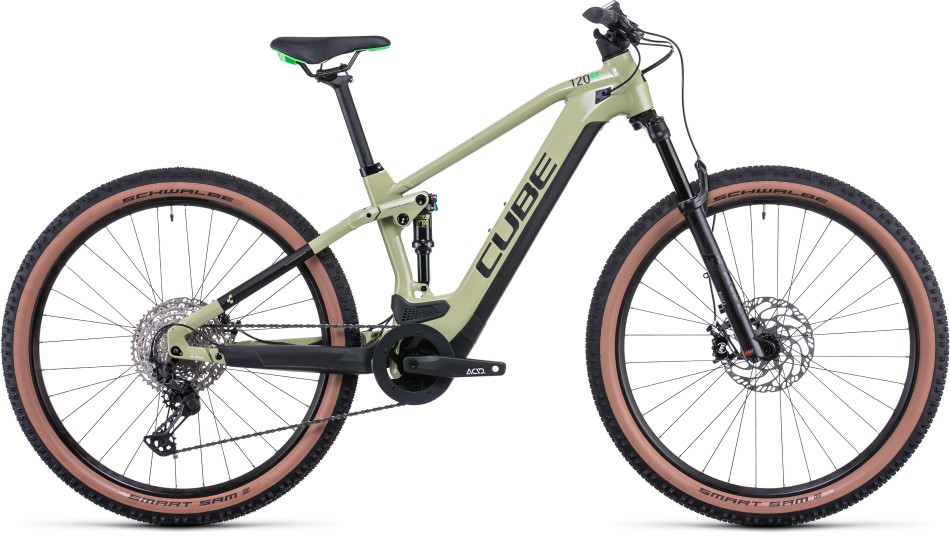

Cube Stereo Hybrid 120 Race 625 2022 Green/Green eMTB
Comfortable, versatile and capable of taking on anything the mountains throw your way. Adventures await...
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Meet the Stereo Hybrid 120 Race – our trail-taming explorer built with you in mind. With its powerful fourth-generation Bosch drive unit, 625Wh battery and versatile Purion controller, it has the capacity to take you further and higher.
Fox’s new 34 AWL fork and Float DPS Performance EVOL shock keep the grippy 2.6in Schwalbe tyres firmly glued to the trail, and powerful Magura hydraulic disc brakes put you firmly in control. The icing on the cake is Shimano’s peerless XT 1×12 transmission, which puts the right gear for any scenario literally at your fingertips. Where will it take you next?
Specification
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
| Fork | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15×110mm, E-Bike Optimized, 120mm |
| Shock | Fox Float DPS EVOL, 185×55mm (27.5: 165×45mm), Open/Medium/Firm Mode, Trunnion Mount |
| Shock Hardware | Top: 54mm Trunnion Mount, Bottom: 30×8mm |
| Brake System | Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifter | Shimano Deore SL-M6100, Rapidfire-Plus |
| Crankset | ACID E-Crank, 170mm, 38T |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear Hub | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
| Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
| Tyres | Schwalbe Smart Sam, Active, 2.6 |
| Stem | CUBE Performance Stem E-MTB, 31.8mm |
| Handlebar | Newmen Evolution SL 318.25, 760mm |
| Grips | Natural Fit All Terrain |
| Seat Post | CUBE Performance Post, 30.9mm |
| Seat Clamp | CUBE Screwlock Semi Integrated, 34.9mm |
| Saddle | Natural Fit Sequence |
| Headset | ACROS AZX-1032 |
| Pedals | ACID PP MTB |
| Weight | 24.9kg |
| Maximum Rider/Bike Weight | 135kg – The weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded. |
| Max System Weight | 160kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| Small (27.5” Wheels) | 158cm (5’3”) | 168cm (5’6”) |
| Medium (29” Wheels) | 168cm (5’6”) | 175cm (5’9”) |
| Large (29” Wheels) | 175cm (5’9”) | 183cm (6’0”) |
| X Large (29” Wheels) | 183cm (6’0”) | 191cm (6’3”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S 27.5 | M 29 | L 29 | XL 29 |
| Seat Tube | 370 | 420 | 465 | 515 |
| Top Tube Horizontal | 577.6 | 610 | 635 | 660 |
| Seat Angle | 76 | 76 | 76 | 76 |
| Head Tube Angle | 66.7 | 67 | 67 | 67 |
| Chainstays | 466 | 480 | 480 | 480 |
| Head Tube | 130 | 135 | 145 | 160 |
| Wheelbase | 1199 | 1244 | 1270 | 1296.8 |
| BB-Height to Hub | -23.6 | -42.5 | -42.5 | -42.5 |
| Reach | 434 | 454 | 476 | 496.6 |
| Stack | 609.6 | 647 | 656 | 669.5 |
| Seat Post Length | 350 | 420 | 480 | 480 |
| Seatpost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Stem Angle | 12 | 12 | 12 | 12 |
| Crank Length | 170 | 170 | 170 | 170 |
| Maximum Tyre Diameter | 759 | 759 | 759 | 759 |
| Maximum Width Tyre | 66.6 | 66.6 | 66.6 | 66.6 |
| Stem Length | 40 | 40 | 50 | 50 |
| Handlebar Width | 760 | 760 | 760 | 760 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
