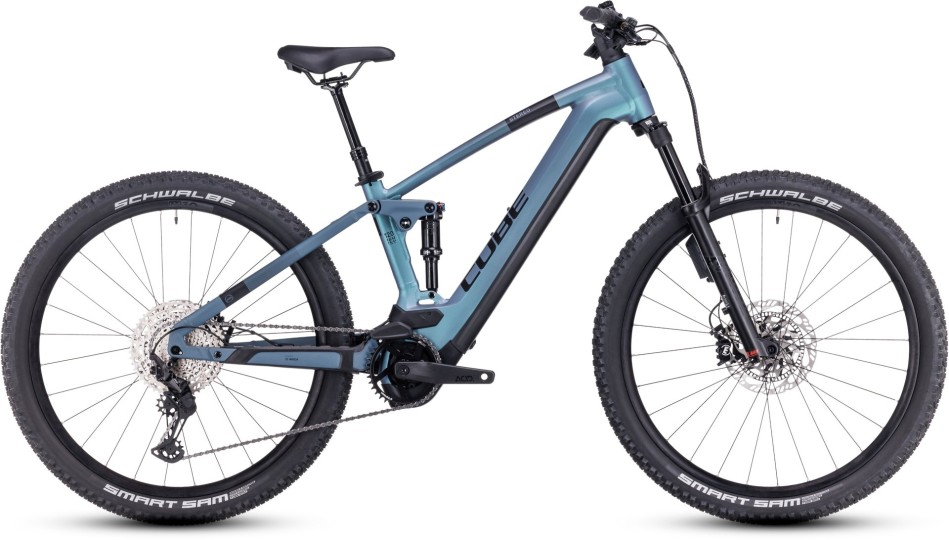

Cube Stereo Hybrid 120 ABS 750 2023 Smaragd/Blue eMTB

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

The Stereo Hybrid’s sleek frame is full of clever touches to make our popular, Bosch-powered trail explorer better than ever.

The Modular Battery System tucks the Bosch battery – up to 750Wh – out of sight, and out of the way of dust and water. Integrated cable routing isn’t just neat, it also means there are no cable holes in the head tube.

The refined four-bar suspension system keeps you isolated from trail shocks for ride-all-day comfort, and the whole lot is wrapped in our Comfort Geometry – with a stiffness-enhancing Boost 148 rear end and 1.5in head tube – for easy handling, plus SizeSplit makes it simple for every rider to find their perfect match.

We even made it simple to add accessories like mudguards, a luggage carrier and a kickstand. It’s ready for pretty much anything. Are you?

When you’re exploring off the beaten path, it’s good to know your bike won’t let you down. That’s why the Stereo Hybrid 120 ABS features Bosch’s sophisticated second-generation anti-lock brake system to reduce stopping distances in complete safety, giving you more control.

The lightweight, integrated system works seamlessly with Magura’s MT C ABS brakes to modulate front brake power, while the powerful fourth-generation Bosch CX motor and Shimano XT 1×12 gears make light work of any route.

There’s a dropper post for extra comfort and control on steep trails, a light and strong Newmen wheelset with 2.6in Schwalbe tyres for sure-footed grip, and a Fox 34 AWL fork and Fox Float DPS Performance shock for comfort and control.

Specification

Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Wheels Size	29”
Fork	Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15×110mm, E-Bike Optimized, 120mm
Shock	Fox Float DPS EVOL, 185×55mm (27.5: 165×45mm), Open/Medium/Firm Mode, Trunnion Mount
Shock Hardware	Top: 54mm Trunnion Mount, Bottom: 30×8mm
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Remote	Bosch LED Remote
Display	Bosch Kiox 300
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Magura MT C ABS, Hydr. Disc Brake (203/203)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano Deore SL-M6100, Rapidfire-Plus
Crankset	e*thirteen Plus Crank, 170mm, 38T
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	Shimano CN-M6100
Wheelset	Newmen Performance 30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Tyres	Schwalbe Smart Sam, Performance, 2.6
Stem	Cube Performance Stem E-MTB, 31.8mm
Handlebar	Newmen Evolution SL 318.25, 760mm
Grips	ACID Hybrid Perform
Seat Post	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (M: 125mm, L, XL: 150mm)
Seatclamp	Cube Screwlock Semi Integrated, 34.9mm
Saddle	Natural Fit Sequence
Headset	Acros AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm)
Pedals	ACID PP MTB
Quoted Weight	26.40kg
Maximum Rider/Bike Weight	135kg – The weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded.
Max System Weight	160kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small (27.5” Wheels)	158cm (5’3”)	168cm (5’6”)
Medium (29” Wheels)	168cm (5’6”)	175cm (5’9”)
Large (29” Wheels)	175cm (5’9”)	183cm (6’0”)
X Large (29” Wheels)	183cm (6’0”)	191cm (6’3”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S 27.5	M 29	L 29	XL 29
Seat Tube	370	420	465	515
Top Tube Horizontal	577.6	610	635	660
Seat Angle	76	76	76	76
Head Tube Angle	66.7	67	67	67
Chainstays	466	480	480	480
Head Tube	130	135	145	160
Wheelbase	1199	1244	1270	1296.8
BB-Height to Hub	-23.6	-42.5	-42.5	-42.5
Reach	434	454	476	496.6
Stack	609.6	647	656	669.5
Seat Post Length	350	420	480	480
Seatpost Diameter	30.9	30.9	30.9	30.9
Stem Angle	12	12	12	12
Crank Length	170	170	170	170
Maximum Tyre Diameter	759	759	759	759
Maximum Width Tyre	66.6	66.6	66.6	66.6
Stem Length	40	40	50	50
Handlebar Width	760	760	760	760

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
