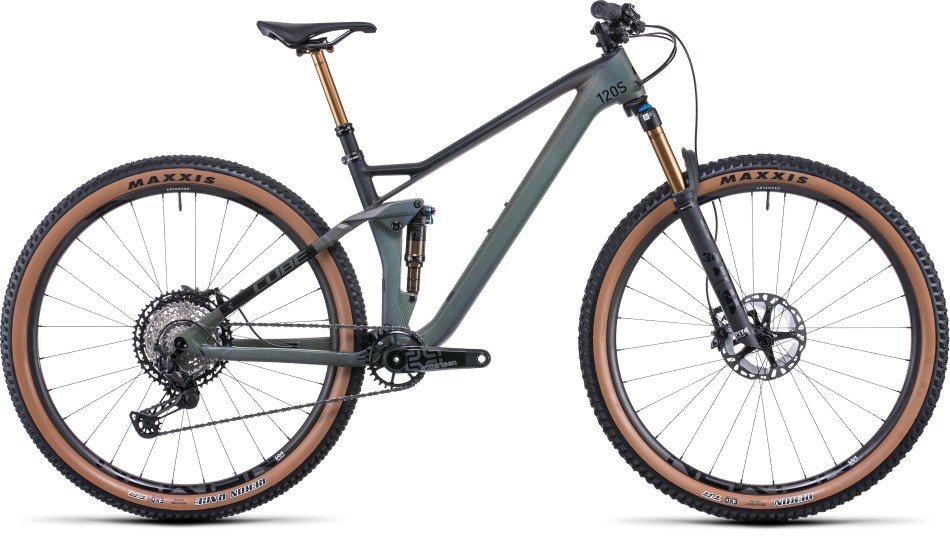

Cube Stereo 120 HPC SLT 2022 Prizm/Carbon Trail Bike
The Stereo 120 HPC SLT 29's trail-taming ability is awesome.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Don’t be fooled by its understated looks – the Stereo 120 HPC SLT 29’s trail-taming ability is awesome. CUBE’s acclaimed suspension kinematics are aided and abetted by a Fox 34 Float Factory fork and Float DPS Factory shock, both featuring Kashima coatings for enhanced bump sensitivity. The remote dropper post gives better control on tough trails.
Shimano’s powerful XT hydraulic disc brakes, grippy Maxxis tyres, light Newmen Advanced carbon wheels and ultra-light Schwalbe inner tubes offer staggering grip and stopping power. And Shimano’s peerless XT 1×12 transmission – powered by an E13 TRSr carbon crank – combines a huge range, super-precise shifting and unmatched reliability.
Specification
| Frame | HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, Boost 148, AXH |
| FORK | Fox 34 Float Factory FIT4, Open(Adjustable)/Medium/Firm Mode, Tapered, 15×110mm, 130mm, Kashima Coated |
| Shock | Fox Float DPS Factory, 190×45mm, Open(Adjustable)/Medium/Firm Mode, Kashima Coated |
| Shock Hardware | Top: 40×8mm, Bottom: 22×8mm |
| Brake System | Shimano XT BR-M8100, Hydr. Disc Brake (180/180) |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Shifter | Shimano XT SL-M8100-IR, Direct Attach |
| Crankset | e*thirteen TRS Race Carbon, 30T, Boost, 175mm (170mm for S) |
| Cassette | Shimano XT CS-M8100, 10-51T |
| Chain | Shimano CN-M6100 |
| Wheelset | Newmen Advanced SL X.A.30 Carbon, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready |
| Front Tyre | Maxxis Rekon, EXO, Tubeless Ready, 2.4 |
| Rear Tyre | Maxxis Rekon Race, EXO, Tubeless Ready, 2.35 |
| Stem | Newmen Evolution SL 318.4, 31.8mm |
| Handlebar | Newmen Advanced SL 318.20, Carbon, 750mm |
| Grips | ACID Disrupt, Soft Compound |
| Seat Post | Fox Transfer Factory 31.6mm, Kashima Coated (S: 125mm, M/L: 150mm, XL: 175mm) |
| Seat Clamp | CUBE Screwlock, 34.9mm |
| Saddle | Natural Fit Nuance SLT Carbon |
| Headset | VP Integrated, Top 1 1/8”, Bottom 1 1/2” |
| Weight | 11.6kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| Small | 163cm (5’3”) | 171cm (5’6”) |
| Medium | 171cm (5’6”) | 179cm (5’9”) |
| Large | 179cm (5’9”) | 187cm (6’1”) |
| X Large | 187cm (6’1”) | 195cm (6’5”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S 29 | M 29 | L 29 | XL 29 |
| Seat Tube | 370 | 420 | 470 | 520 |
| Top Tube Horizontal | 569.9 | 590.8 | 614 | 640.3 |
| Seat angle | 75.3 | 75.3 | 75.3 | 75.3 |
| Head Tube Angle | 67 | 67 | 67 | 67 |
| Chainstays | 435.5 | 435.5 | 435.5 | 435.5 |
| Head Tube | 100 | 103 | 113 | 133 |
| Wheelbase | 1145 | 1166 | 1190 | 1218 |
| Reach | 420 | 440 | 460 | 480 |
| Stack | 604 | 606 | 615 | 634 |
| Seatpost Length | 403 | 425 | 425 | 425 |
| Seatpost Diameter | 31.6 | 31.6 | 31.6 | 31.6 |
| Stem Angle | 6 | 6 | 6 | 6 |
| Crank Length | 170 | 175 | 175 | 175 |
| Stem Length | 50 | 60 | 60 | 70 |
| Handlebar Width | 760 | 760 | 760 | |
| Seatpost Drop | 120 | 130 | 130 | 130 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
