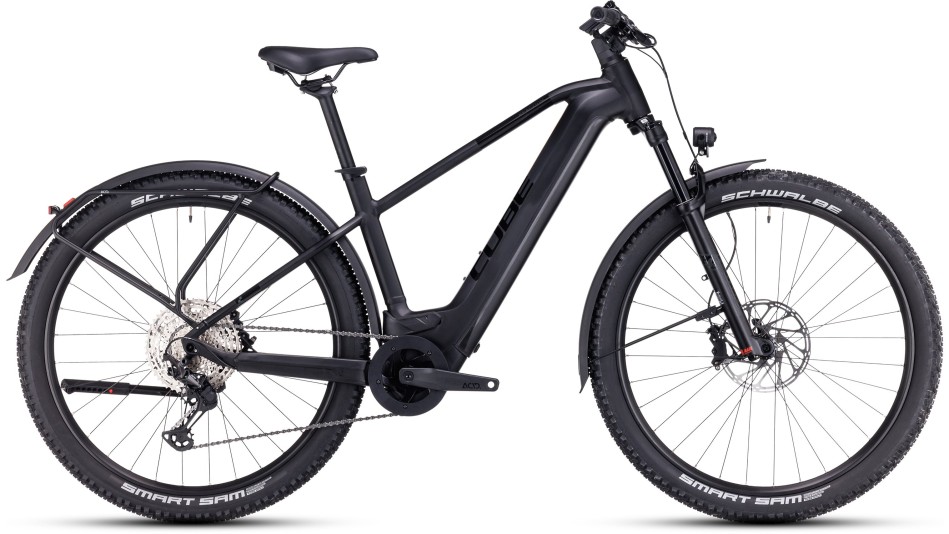

Cube Reaction Hybrid SLX 750 Allroad 2024 Black/Reflex eBike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

It’s all in the detail. So neat is the Reaction Hybrid’s frame design, you’ll barely notice the high-capacity Bosch battery – now up to 750Wh, even for smaller frame sizes – and powerful fourth-generation, Smart System-equipped Bosch CX motor. But you’ll definitely notice the power.

Agile Ride Geometry delivers confidence-inspiring handling, as you’d expect. There’s an Easy Entry frame option, and a new S frame with 27.5in wheels, so everyone can find their ideal Reaction Hybrid.

And, with internally routed cables including a stealth dropper post upgrade option, we’ve reduced the need for maintenance so that you can just enjoy the ride.

Few bikes are more versatile than a well-equipped hardtail. Add a high-capacity battery, versatile frame and sizing options and smooth fourth-generation bosch power to the mix, and you’ve got a bike that’s capable of taking on just about any challenge. That’s the reaction hybrid slx 750: a bike for all reasons.

Specification

Frame	Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Wheels Size	27.5” – Small / 29” – Medium, Large, X Large, XX Large
Fork	Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15×110mm, E-Bike Optimized, 120mm (EE: 100mm)
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Remote	Bosch LED Remote
Display	Bosch Kiox 300
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Sram DB8, Hydr. Disc Brake (200/200)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Crankset	Acid E-Crank, 38T, 175mm
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	Shimano CN-M6100
Front Hub	Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub	Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims	Cube EX30, 32H, Disc, Tubeless Ready
Tyres	Schwalbe Smart Sam, Performance, Double Defense, 2.6, Next Gen
Stem	Cube Performance Stem E-MTB, 31.8mm
Handlebar	Cube Rise Trail Bar Pro, 740mm
Grips	Acid Hybrid Perform
Seat Post	Cube Performance Post, 30.9mm
Seatclamp	Cube Screwlock Semi Integrated, 34.9mm
Saddle	Natural Fit Sequence
Pedals	Acid PP MTB
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm)
Front Light	ACID Front Light PRO-E 110, 5-16V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID FM Pure Kickstand
Mudguards	ACID 75 BB-Mount
Bell	Knog Oi
Pannier Rack	ACID Rail. SIC, 29” Boost
Quoted Weight	24.50kg
Maximum Rider/Bike Weight	150kg – The weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded.
Max System Weight	160kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Medium (29” Wheels)	168cm (5’6”)	175cm (5’9”)
Large (29” Wheels)	175cm (5’9”)	183cm (6’0”)
X Large (29” Wheels)	183cm (6’0”)	191cm (6’3”)
XX Large (29” Wheels)	191cm (6’3”)	198cm (6’6”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	M	L	XL	XXL
Seat Tube	405	450	495	545
Top Tube Horizontal	628	628	645	672
Seat Tube Angle	74	74	74	74
Head Tube Angle	67.5	67.5	68	68
Chain Stays	460	460	460	460
Head Tube	122	122	132	149
Wheelbase	1196	1196	1208	1236
BB-Height To Hub	65	65	65	65
Standover Height	762	768	781	821
Reach	444	442	456	478
Stack	646	651	662	678
Crank Length	175	175	175	175
Max Tyre Width	67	67	67	67
Stem Length	60	60	60	60

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
