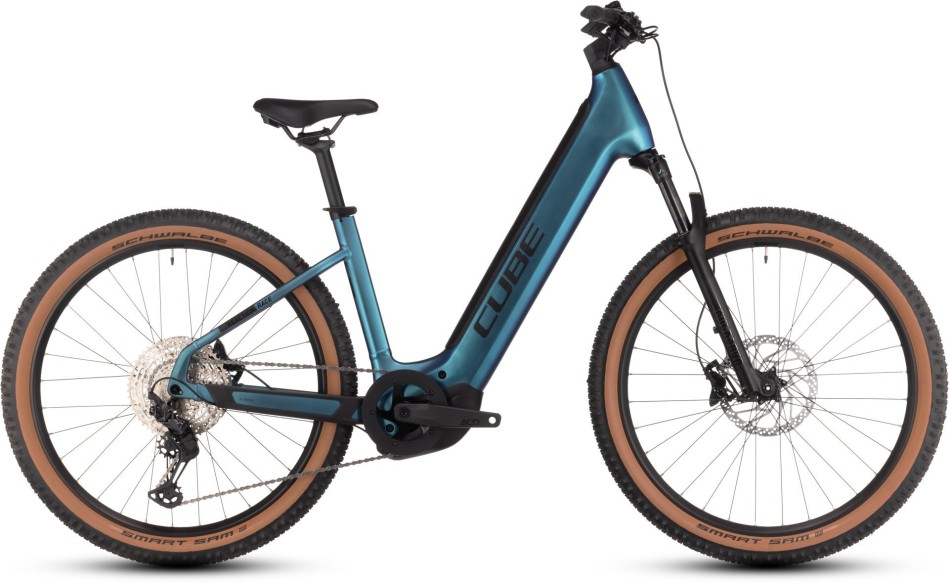

Cube Reaction Hybrid Race 750 2023 Easy Entry Switchblue/Black eBike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

It’s all in the detail. So neat is the Reaction Hybrid’s frame design, you’ll barely notice the high-capacity Bosch battery – now up to 750Wh, even for smaller frame sizes – and powerful fourth-generation, Smart System-equipped Bosch CX motor. But you’ll definitely notice the power.

Agile Ride Geometry delivers confidence-inspiring handling, as you’d expect. There’s an Easy Entry frame option, and a new S frame with 27.5in wheels, so everyone can find their ideal Reaction Hybrid.

And, with internally routed cables including a stealth dropper post upgrade option, we’ve reduced the need for maintenance so that you can just enjoy the ride.

Ain’t no mountain high enough to get in the way of our reaction hybrid race. The choice of frame styles and sizes means there’s one to suit every rider and, with a high-capacity battery and smooth Bosch power, it’s got what you need to take the path less travelled and find out, once and for all, where it leads.

Specification

Frame	Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Wheels Size	27.5”
Fork	RockShox Judy Silver TK Air, Tapered, 15×110mm, eMTB Approved, 100mm, Lockout
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Remote	Bosch LED Remote
Display	Bosch Kiox 300
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Shimano BR-MT420, Hydr. Disc Brake (203/203)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Crankset	Acid E-Crank, 38T, 175mm
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	Shimano CN-M6100
Front Hub	Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub	Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims	Cube EX30, 32H, Disc, Tubeless Ready
Tyres	Schwalbe Smart Sam, Active, 2.6
Stem	Cube Performance Stem E-MTB, 31.8mm
Handlebar	Cube Rise Trail Bar Pro, 740mm
Grips	ACID React Pro
Seat Post	Cube Performance Post, 30.9mm
Seatclamp	Cube Screwlock Semi Integrated, 34.9mm
Saddle	Natural Fit Sequence
Pedals	Acid PP MTB
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm)
Quoted Weight	24.10kg
Maximum Rider/Bike Weight	150kg – The weight includes the bike and the rider incl. clothing, as well as any equipment that may be on the rider’s body (e.g. backpack) and must not be exceeded.
Max System Weight	160kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small (27.5” Wheels)	158cm (5’3”)	168cm (5’6”)
Medium (27.5” Wheels)	168cm (5’6”)	175cm (5’9”)
Large (27.5” Wheels)	175cm (5’9”)	183cm (6’0”)
X Large (27.5” Wheels)	183cm (6’0”)	191cm (6’3”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S 27.5	M 27.5	L 27.5	XL 27.5
Seat Tube	370	420	470	515
Top Tube Horizontal	605	605	625	645
Seat Angle	74	74	74	74
Head Tube Angle	68.5	68.5	68.5	68.5
Chainstays	456	456	456	456
Head Tube	175	175	190	205
Wheelbase	1153.07	1153.07	1175.09	1197.11
BB-Height to Hub	55	55	55	55
Reach	413.14	413.14	429.66	446.18
Stack	664.21	664.21	678.16	692.12
Length Seat Post	350	350	350	400
Diameter Seat Post	30.9	30.9	30.9	30.9
Angle Stem	12	12	12	12
Crank Length	175	175	175	175
Max Tyre Diameter	72	0 720	720	720
Max Tyre Width	68	68	68	68
Stem Length	60	70	80	80
Handlebar Width	740	740	740	740

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
