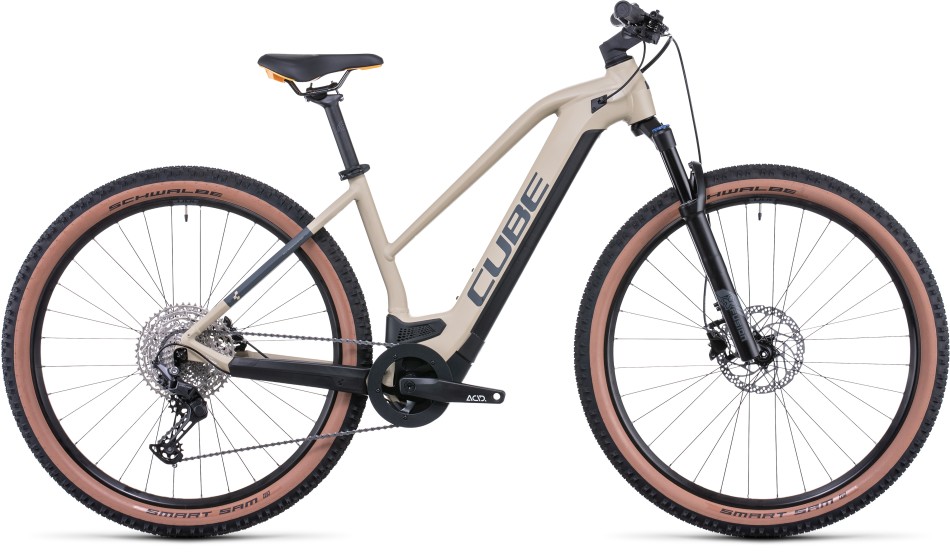

Cube Reaction Hybrid Pro 500 2022 Trapeze Desert/Orange eMTB

The Reaction Hybrid Pro's fourth-generation Bosch CX motor, Purion controller and high-capacity PowerTube battery give you the power you need to explore

Availability: Sold out

Product Name Price

10% of free accessories

Get 10% of free accessories when you purchase a bike.

Excludes discounted bikes, ex-demo bikes and Cyclescheme.

Part exchange + save!

10% off your bike and accessories when you part exchange.

*Terms apply.

Price beat now

We will beat our competitors' prices!

*Terms apply.

We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.

Cube

Recently Viewed

Details

Fitted with range topping 85Nm Bosch Performance CX Generation 4 motor, the Reaction Hybrid Pro packs a serious punch. Upgraded to the excellent X-Fusion MIG32 fork for 2022, you can tackle all but the most serious of mountain bike trails.

Want to get more out of the places you ride? The Reaction Hybrid Pro’s fourth-generation Bosch CX motor, Purion controller and high-capacity PowerTube battery give you the power you need to explore. Combined with Shimano’s legendarily reliable Deore 1×11 transmission, it’s your ticket to riding further, higher and more often than before.

The X-Fusion air fork features a lockout, easy adjustability and Boost front axle for plush bump-swallowing performance. And grippy 2.6in Schwalbe tyres with powerful Shimano hydraulic disc brakes ensure you’re always in full control.

Video

Freeborn’s Take

This electric leisure mountain bike is great for riders looking to do a mixture of flowing off road single track, bridleways and occasional tarmac.

The Reaction Hybrid pro is available in both standard and step through frames, across 6 frame sizes and 3 colour choices. The extra small and small come with 27.5” wheels and medium through to XXL have 29” wheels. The aluminium frame has internal cable routing, a quick release rear wheel and built in chain stay protection. X Small, Small and all Trapeze frame sizes have one set of water bottle cage mounts whilst medium through to XXL have two sets.

Fitted with the coveted Bosch generation 4 CX motor the Reaction Hybrid Pro has more than enough power for the very steepest of inclines. This motor produces up to 85nm of torque and can deliver up to 3.4 times the amount of effort of the rider. The Bosch Powertube battery fitted is offered in both 500 and 625wh versions and can be easily removed from the frame using the supplied key. The battery can be charged whilst installed in the frame or once removed.

The easy to use, backlit, Bosh Purion display is fitted allowing for easy mode change, walk assist and basic ride data including speed, distance and battery range.

The brand new X-Fusion Mig32 fork represents a significant upgrade over the 2021 Reaction Hybrid pro. It comes equipped with 100mm of travel supported by aluminium stanchions and Boost axle spacing. Its air sprung with adjustable compression damping and internally set rebound damping.

Equipped with Shimano’s bomb proof 11 speed Deore group set which offers a whopping 11 to 51 tooth gear range. You will be able grind up even the steepest of hills.

Stopping duties are taken care of by Shimano’s excellent MT200 hydraulic disc brakes with 180mm discs front and rear.

Equipped with Shimano hubs and 30mm wide Cube rims and finished with Schwalbe’s 2.6” Smart Sam tyres, you will have the rolling speed need for fire road blasts and enough grip to keep you out of trouble dry to mixed singletrack.

Cube 720mm handlebars are clad with the new Acid React Pro lock on grips giving you all weather grip and composure. The Cube Natural Fit Sequence saddle with soft supportive padding has proven to be firm favorite with customers since its launch last year.

Specification

Frame Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points
Wheel Size XS and S frame sizes have 27.5” wheels – M, L, XL and XXL frame sizes have 29” wheels
Fork X-Fusion MIG32 Air, Tapered, 15×110mm, 100mm, Lockout
Drive Unit Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery Bosch PowerTube 500 (battery weight 3kg)
Display Bosch Purion
Charger Bosch 2A (3.5h 50% – 7.5h 100%)
Brake System Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear Derailleur Shimano Deore RD-M5100-SGS, 11-Speed
Shifters Shimano Deore SL-M5100, Rapidfire-Plus
Crankset ACID E-Crank, 175mm, 38T
Cassette Shimano Deore CS-M5100, 11-51T
Chain KMC X11
Front Hub Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub Shimano FH-TX505, QR, Centerlock
Rims CUBE EX30, 32H, Disc, Tubeless Ready
Tyres Schwalbe Smart Sam, Active, 2.6
Stem CUBE Performance Stem E-MTB, 31.8mm
Handlebar CUBE Rise Trail Bar, 720mm
Grips ACID React Pro
Seat Post CUBE Performance Post, 30.9mm
Seatclamp CUBE Varioclose, 34.9mm
Saddle Natural Fit Sequence
Headset ACROS AZX-1032 ZS56 Top ZS56 Bottom
Pedals CUBE PP MTB
Quoted Weight 23.10kg
Measured Weight 23.60kg – Measured by Freeborn – Size Small no pedals
Max System Weight 135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size Minimum Height Maximum Height
Small (27.5” Wheels) 158cm (5’3”) 168cm (5’6”)
Medium (29” Wheels) 168cm (5’6”) 175cm (5’9”)
Large (29” Wheels) 175cm (5’9”) 183cm (6’0”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size S M L
Seat Tube 370 405 450
Top Tube Horizontal 577 580 600
Seat Tube Angle 74 74 74
Head Tube Angle 68 68 69
Chain Stays 441 460 460
Head Tube 120 115 120
Wheel base 1119.4 1141 1150
BB-Height To Hub 48 65 65
Standover Height 676 700 709
Reach 409.9 403 420
STACK 602.3 628 638
Max Tyre Width 68 68 68

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Additional Information
Manufacturer Cube
RRP N/A
Write Your Own Review
You're reviewing: Cube Reaction Hybrid Pro 500 2022 Trapeze Desert/Orange eMTB
