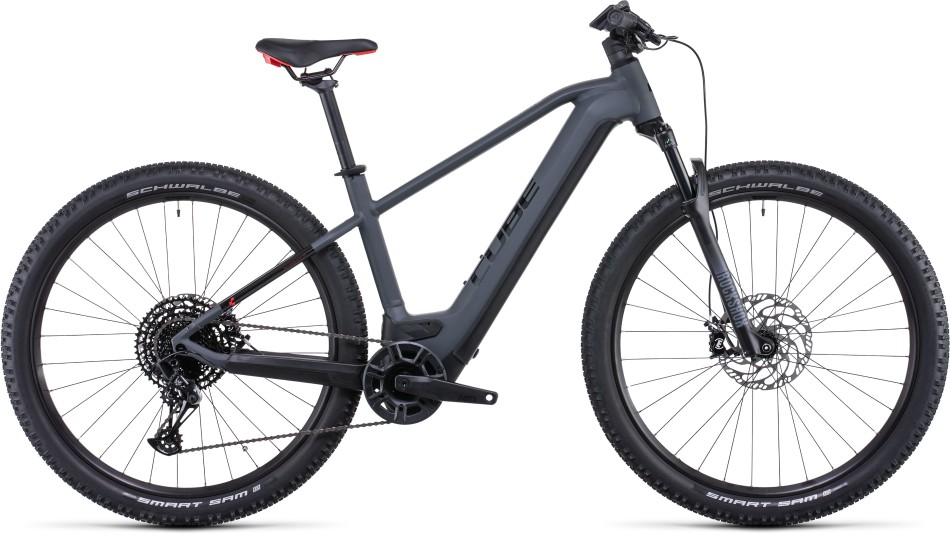

Cube Reaction Hybrid Exc 2022 Grey/Red eBike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Say hi to the Reaction Hybrid EXC 750 29: our versatile hybrid mountain bike with even more range than before. With its high-capacity 750Wh battery, smooth Bosch CX drive unit and new Kiox controller, it’s got even more range to take you to new places.
The huge gear range of Sram’s 1×12 NX Eagle transmission puts the right gear for any situation at your fingertips. We fitted four-piston Magura MT Thirty hydraulic disc brakes with large rotors for safe, assured stopping in all conditions. Add a RockShox Judy air fork with 120mm of plush travel, and you’re all set for weekend adventuring.
Specification
Frame | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
Wheel Size | 29” |
Fork | RockShox Judy Silver TK Air, Tapered, 15×110mm, eMTB Approved, 120mm, Lockout |
Drive Unit | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
Battery | Bosch PowerTube 750Wh (battery weight 4.4kg) |
Display | Bosch Kiox 300 |
Remote | Bosch LED Remote |
Charger | Bosch 4A (2.1h 50% – 6h 100%) |
Brake System | Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
Rear Derailleur | Sram NX Eagle™, 12-Speed |
Shifters | Sram SX Eagle™ Trigger, Single Click |
Crankset | ACID E-Crank, 175mm, 38T |
Cassette | Sram PG-1210 Eagle™, 11-50T |
Chain | Sram SX Eagle™ |
Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
Rear Hub | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
Rims | Rodi TRYP30, 32H, Disc, Tubeless Ready |
Tyres | Schwalbe Smart Sam, Active, 2.6 |
Stem | CUBE Performance Stem E-MTB, 31.8mm |
Handlebar | CUBE Rise Trail Bar, 720mm |
Grips | ACID React Pro |
Seat Post | CUBE Performance Post, 30.9mm |
Seatclamp | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm |
Saddle | Natural Fit Sequence |
Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm) |
Pedals | CUBE PP MTB |
Quoted Weight | 24.40kg |
Max System Weight | 135kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
Medium (29” Wheels) | 168cm (5’6”) | 175cm (5’9”) |
Large (29” Wheels) | 175cm (5’9”) | 183cm (6’0”) |
X Large (29” Wheels) | 183cm (6’0”) | 191cm (6’3”) |
XX Large (29” Wheels) | 191cm (6’3”) | 198cm (6’6”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry

Frame Size | M | L | XL | XXL |
Seat Tube | 405 | 450 | 495 | 545 |
Top Tube Horizontal | 628 | 628 | 645 | 672 |
Seat Tube Angle | 74 | 74 | 74 | 74 |
Head Tube Angle | 67.5 | 67.5 | 68 | 68 |
Chain Stays | 460 | 460 | 460 | 460 |
Head Tube | 122 | 122 | 132 | 149 |
Wheelbase | 1196 | 1196 | 1208 | 1236 |
BB-Height To Hub | 65 | 65 | 65 | 65 |
Standover Height | 762 | 768 | 781 | 821 |
Reach | 444 | 442 | 456 | 478 |
Stack | 646 | 651 | 662 | 678 |
Crank Length | 175 | 175 | 175 | 175 |
Max Tyre Width | 67 | 67 | 67 | 67 |
Stem Length | 60 | 60 | 60 | 60 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Video
Manufacturer | Cube |
---|---|
RRP | No |
