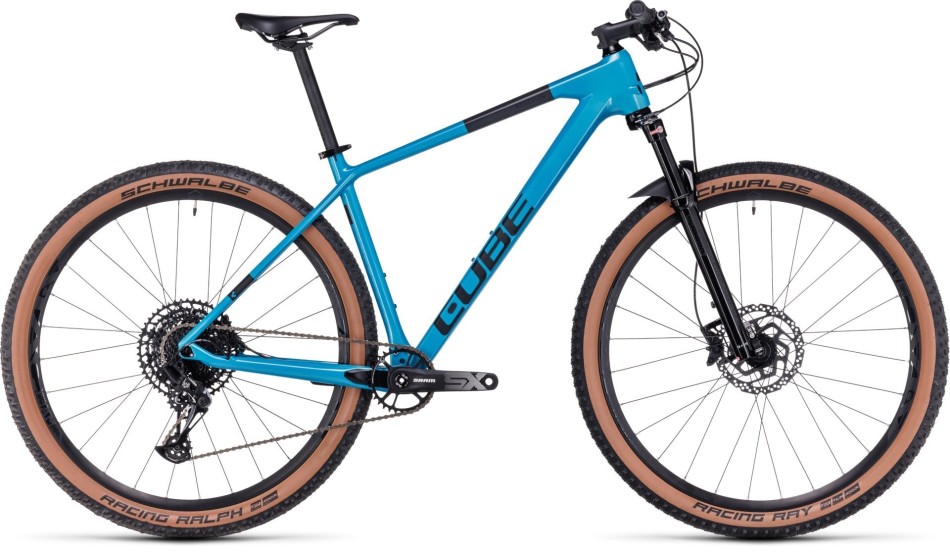

Cube Reaction C:62 One 2023 Aqua/Black Cross Country Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Crafted from our proprietary C:62® carbon using our Advanced Twin Mold manufacturing process, the Reaction C:62 leaves nothing on the table in pursuit of low weight, exceptional speed and precise handling. There’s a short rear end with Boost thru axle, a tapered head tube and Agile Ride Geometry. Taken together it all adds up to a lively, responsive ride feel.

Slim seatstays and a narrow 27.2mm seatpost help keep you comfortable for longer, even when you’re giving it your all. And internal cable routing reduces maintenance, so you can spend more time riding and less time wrenching.

If you’ve been waiting to experience the unique performance qualities of a carbon frame, now’s the time. The Reaction C:62 ONE takes the low weight, sublime comfort and sharp handling of our C:62® carbon frame and combines it with the precise shifting of Sram’s 1×12 transmission for instant acceleration and clean shifts.

Powerful Magura hydraulic disc brakes offer predictable stopping power whatever the trail throws your way, and a Suntour Raidon XC32 suspension fork smooths out the trail ahead. It’s light, fast and guaranteed to put a grin on your face. Are you up for it?

Specification

Frame	C:62® Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, Boost 12×148mm, Internal Cable Routing, Dropper Post Ready
Wheel Size	29”
Fork	SR Suntour Raidon 32 Air, Boost, 100mm, Remote Lockout
Brake System	Shimano Deore BR-M6100, Hydr. Disc Brake (180/160)
Rear Derailleur	Sram NX Eagle™, 12-Speed
Shifter	Sram SX Eagle™ Trigger
Bottom Bracket	Sram DUB MTB, 92mm Pressfit
Crankset	Sram SX Eagle™ DUB 32T
Cassette	Sram PG-1230 Eagle™, 11-50T
Chain	Sram SX Eagle™
Handlebar	CUBE Flat Race Bar, 720mm
Stem	CUBE Performance Stem SLX, 31.8mm
Grips	ACID React Pro
Headset	VP Integrated, Top 1 1/8”, Bottom 1 1/2”
Wheelset	Answer Atac AM, 15×110mm/12×148mm, Tubeless-Ready
Front Tyre	Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25
Rear Tyre	Schwalbe Racing Ralph, Addix Performance, Kevlar, 2.25
Seat Post	CUBE Performance Post, 27.2mm
Saddle	Natural Fit Venec Lite
Pedals	CUBE PP MTB
Weight	11.7kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’4”)
XX Large	195cm (6’4”)	203cm (6’7”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S	M	L	XL	XXL
Seat Tube	370	420	470	515	565
Top Tube Horizontal	567	588	609	628	648
Seat Angle	73.5°	73.5°	73.5°	73.5°	73.5°
Head Tube Angle	69°	69°	69°	69°	69°
Chainstays	423	423	423	423	423
Head Tube	100	110	120	130	145
Wheelbase	1070	1091	1113	1138	1154
BB-Height to Hub	65	65	65	65	65
Reach	389	406	425	441	456
Stack	609	618	627	637	651
Seatpost Length	400	400	400	400	400
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2
Stem Angle	-6°	-6°	-6°	-6°	-6°
Crank Length	170	170	170	175	175
Max Tyre Width	57	57	57	57	57
Stem Length	70	80	90	100	100
Handlebar Width	720	720	720	720	720

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
