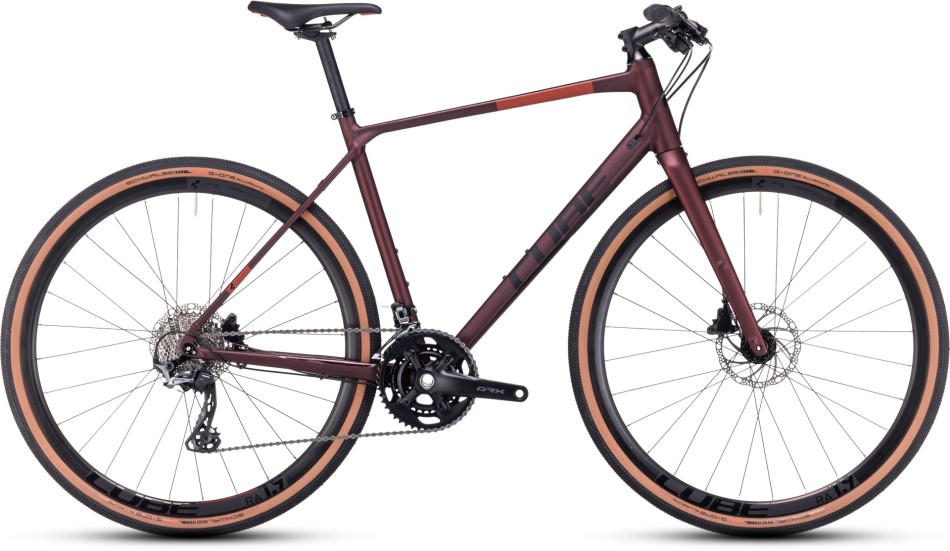

Cube Nulane Race 2023 Ruby/Black Hybrid Bike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

Versatile can be fast, and fast can be versatile, too. That’s why, with the Nulane frame, we added mounting points for easy mudguard and carrier upgrades.

There are even lowrider rack points on the full carbon fork, so it’s practical as well as comfortable.

Superlite double-butted aluminium frame tubes keep the weight down. We added flat mount disc attachment points for sleek looks and the best stopping performance. And finished off with thru axles front and rear to ensure safe and predictable handling, laden or unladen.

This is what happens when you blend the low weight and lively handling of a road bike – complete with full carbon fork – with the practicality of a tourer and the Shimano grx 2×11 gears of a gravel bike. The result? The Nulane Race is quick, comfortable, and almost endlessly versatile. For town, for country, for work, for fun.

Specification

Frame	Aluminium Superlite Trekking Sport, Flat Mount Disc, 12×142mm, AXH
Fork	CUBE TS Disc, Full Carbon, Taper, Flat Mount, 12×100mm
Brake System	Tektro HD-R280, Hydr. Disc, Flat Mount (160/160)
Rear Derailleur	Shimano GRX RD-RX810, 11-Speed
Front Derailleur	Shimano GRX FD-R810
Shifters	Shimano SL-RS700
Bottom Bracket	Shimano BB-MT500PA, 92mm Pressfit
Crankset	Shimano GRX FC-RX600, 46×30T
Cassette	Shimano 105 CS-HG700, 11-34T
Chain	Shimano CN-HG601-11
Handlebar	CUBE Flat Race Bar, 660mm
Stem	CUBE Performance Stem Pro, 31.8mm
Grips	ACID Travel
Headset	VP Semi-Integrated, 1 1/8”, Bottom Integrated, 1 1/4”
Wheelset	CUBE RA 1.9 Aero Disc, Tubeless Ready
Tyres	Schwalbe G-One Allround, Kevlar, 40-622
Seat Post	CUBE Performance Post, 27.2mm
Saddle	Natural Fit Nuance Lite
Pedals	ACID PP Trekking
Weight	10.4kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
X Small	155cm (5’0”)	163cm (5’3”)
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	XS	S	M	L	XL
Seat Tube	460	490	520	550	580
Top Tube Horizontal	542	566	574	593	612
Seat Angle	74	73	73	73	73
Head Tube Angle	70.5	71.5	72	72	72
Chainstays	442	442	442	442	442
Head Tube	137	157	172	197	227
Wheelbase	1044.4	1048.8	1052	1071.5	1091
BB-Height to Hub	60	60	60	60	60
Reach	384.8	391.1	394.5	405.9	416.3
Stack	548.4	570.8	587.2	611	639.6
Length Seatpost	350	350	350	350	350
Diameter Seatpost	27.2	27.2	27.2	27.2	27.2
Stem Angle	6	6	6	6	6
Crank Length	170	170	172.5	175	175
Maximum Tyre Diameter	711	711	711	711	711
Maximum Tyre Width	42	42	42	42	42
Stem Length	90	90	90	90	90
Handlebar Width	660	660	660	660 6	60

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
