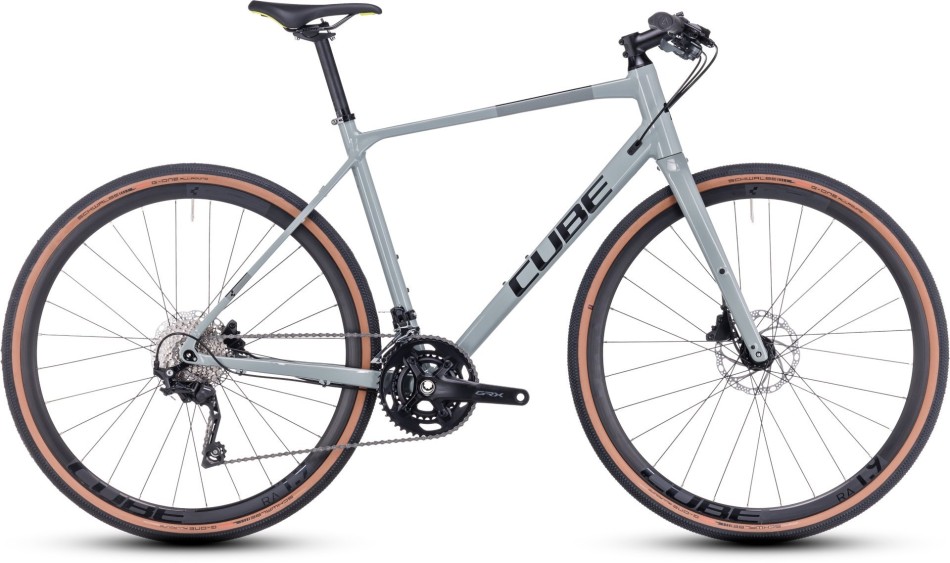

Cube Nulane Pro 2023 Grey/Black Hybrid Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Versatile can be fast, and fast can be versatile, too. That’s why, with the Nulane frame, we added mounting points for easy mudguard and carrier upgrades.

There are even lowrider rack points on the full carbon fork, so it’s practical as well as comfortable.

Keep it simple, but keep your options open, too. The Nulane Pro’s blend of low weight and practicality makes it a force to be reckoned with on city streets and country lanes. Shimano’s GRX 2×10 transmission serves up a wide range of ratios and clean shifting in a durable, light package.

Powerful flat mount Tektro hydraulic disc brakes ensure you’ve always plenty of power on hand to stop safely, even if the weather’s throwing you a curve ball. And the comfortable full carbon fork, Schwalbe G-One Allround tyres and easy accessory upgradeability seal the deal.

Specification

Frame	Aluminium Superlite Trekking Sport, Flat Mount Disc, 12×142mm, AXH
Fork	CUBE TS Disc, Full Carbon, Taper, Flat Mount, 12×100mm
Brake System	Tektro HD-R280, Hydr. Disc, Flat Mount (160/160)
Rear Derailleur	Shimano GRX RD-RX400, 10-Speed
Front Derailleur	Shimano GRX FD-RX400
Shifters	Shimano Tiagra SL-4700
Bottom Bracket	Shimano BB-MT500PA, 92mm Pressfit
Crankset	Shimano GRX FC-RX600, 46×30T
Cassette	Shimano CS-HG500, 11-34T
Chain	KMC X10
Handlebar	CUBE Flat Race Bar, 660mm
Stem	CUBE Performance Stem Pro, 31.8mm
Grips	ACID Travel
Headset	VP Semi-Integrated, 1 1/8”, Bottom Integrated, 1 1/4”
Wheelset	CUBE RA 1.9 Aero Disc, Tubeless Ready
Tyres	Schwalbe G-One Allround, Kevlar, 40-622
Seat Post	CUBE Performance Post, 27.2mm
Saddle	Natural Fit Nuance Lite
Pedals	ACID PP Trekking
Weight	10.3kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
X Small	155cm (5’0”)	163cm (5’3”)
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	XS	S	M	L	XL
Seat Tube	460	490	520	550	580
Top Tube Horizontal	542	566	574	593	612
Seat Angle	74	73	73	73	73
Head Tube Angle	70.5	71.5	72	72	72
Chainstays	442	442	442	442	442
Head Tube	137	157	172	197	227
Wheelbase	1044.4	1048.8	1052	1071.5	1091
BB-Height to Hub	60	60	60	60	60
Reach	384.8	391.1	394.5	405.9	416.3
Stack	548.4	570.8	587.2	611	639.6
Length Seatpost	350	350	350	350	350
Diameter Seatpost	27.2	27.2	27.2	27.2	27.2
Stem Angle	6	6	6	6	6
Crank Length	170	170	172.5	175	175
Maximum Tyre Diameter	711	711	711	711	711
Maximum Tyre Width	42	42	42	42	42
Stem Length	90	90	90	90	90
Handlebar Width	660	660	660	660 6	60

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
