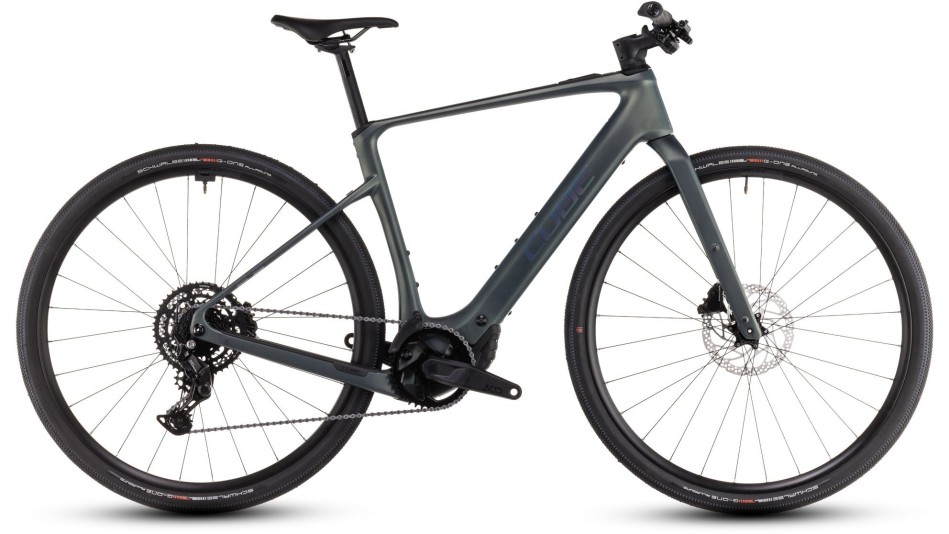

Cube Nulane Hybrid C:62 Race 400X 2025 Sage/Prism Light eBike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Borrowing heavily from our experience building light, fast and tough gravel bikes, the Nulane Hybrid C:62’s carbon frame’s organic curves and clean looks disguise serious intent. There’s clearance for tyres up to 50mm, even with mudguards fitted. We added luggage carrier mounting points both for the rear and on the full carbon fork, so you can tackle the weekday commute or a longer tour easily.

The Bosch drive system’s control unit is incorporated into the top tube – with a mini handlebar remote – and you can add a 250 Wh PowerMore booster battery to the frame for extended range. And, on the technical side, the hidden seat clamp, direct mount chain guide, flat mount kickstand interface, Boost rear end and UDH compatibility make this a future-proof bike for all

It might be the elegant design and lightweight C:62® carbon frame that draws you in, but it’ll be the Nulane Hybrid C:62 Race 400X’s unmatchable functionality that’ll win you over.

The smooth, light Bosch SX motor and 400Wh battery delivers up to 55Nm of pedal assistance. Combined with the simple reliability of Shimano’s 1×9 Cues gears and a strong, light Newmen Performance 25 gravel wheelset, it’s everything you need to deliver you to your destination swiftly and in great shape. Powerful Shimano hydraulic disc brakes and grippy Schwalbe tyres help keep you safe in all weathers.

There’s even a full set of luggage carrier and mudguard mounting points, for a quick and easy upgrade to full weekday commuter or weekend tourer. City slicker or country explorer, it’s entirely up to you.

Specification

Frame	C:62® Advanced Twin Mold, Gravel Endurance Geometry, Advanced Internal Cable Routing, Flat Mount Disc, Fender/Rack & Kickstand Option, Boost 148, UDH™, Fully Integrated Battery
Fork	CUBE C:62® Technology, 1 1/2” – 1 1/2” Tapered, Flat Mount Disc, Fender & Lowrider Mounts, 12×100mm
Headset	ACROS, Top Integrated 1 1/2” w/ Integrated Cable Routing, Bottom Integrated 1 1/2”
Stem	CUBE Performance Stem Pro, 31.8mm
Handlebar	CUBE Rise Trail Bar, 720mm
Brake System	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180)
Motor	Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Battery	Bosch CompactTube 400
Charger	Bosch 2A
Remote	Bosch System Control, incl. Mini Remote
Shifters	Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (180)
Rear Derailleur	Shimano Cues RD-U4000-GS, 9-Speed
Crankset	ACID MTB Hybrid Pro, 40T
Chainring Size	40T
Chain Guide	Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cassette	Shimano Cues CS-LG300, 11-46T
Wheelset	Newmen Performance X.R. 25
Saddle	ACID Nuance Lite
Seatpost	Newmen Evolution, 27.2mm
Quoted Weight	14.6 kg
Max System Weight	130 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
X Small	158cm (5’3”)	168cm (5’6”)
Small	168cm (5’5”)	172cm (5’8”)
Medium	172cm (5’8”)	180cm (5’11”)
Large	178cm (5’10”)	185cm (6’1”)
X Large	183cm (6’0”)	191cm (6’3”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Size	XS	S	M	L	XL
Seat Tube	470	500	530	550	580
Top Tube Horizontal	522	537	560	575	592
Seat Angle	75.5°	74.7°	73.9°	73°	73°
Head Tube Angle	69.5°	70.5°	71.5°	72°	72.5°
Chainstays	453	453	453	453	453
Head Tube	95	112	145	164	187
Wheelbase	1053	1052	1059	1060	1072
BB-Height to Hub	70	70	70	70	70
Reach	387	388	393	392	402
Stack	524	544	579	599	623
Seatpost Length	350	350	350	400	400
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2
Crank Length	160	160	165	165	170
Max Tyre Diameter	728	728	728	728	728
Max Tyre Width	50	50	50	50	50
Stem Length	80	80	80	90	100
Handlebar Width	720	720	720	720	720

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 2
Intended Use	Leisure riding and trekking under moderate effort
Intended Terrain	Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less
Recommended riding skills	No special riding skills required

Additional Information

Manufacturer	Cube
RRP	No
