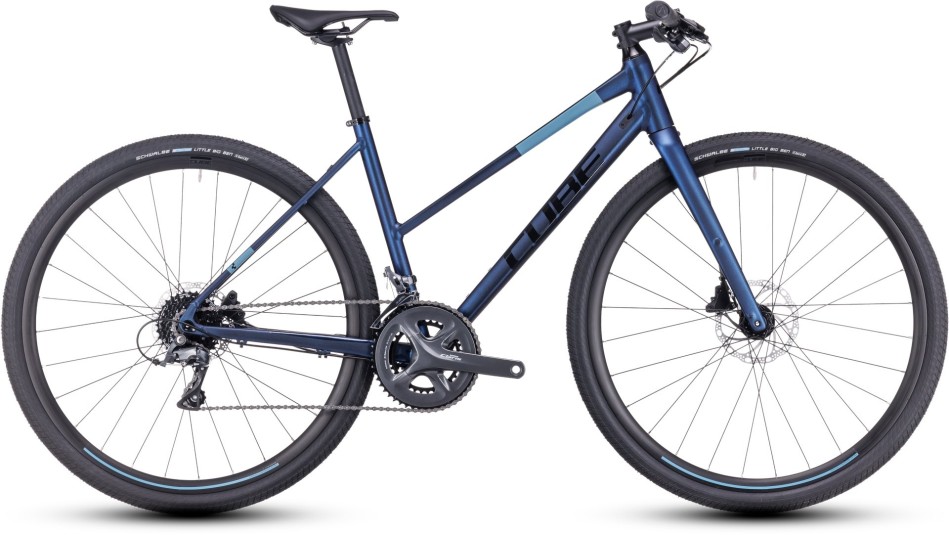

Cube Nulane 2023 Trapeze Blue/Black Hybrid Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Versatile can be fast, and fast can be versatile, too. That’s why, with the Nulane frame, we added mounting points for easy mudguard and carrier upgrades.

There are even lowrider rack points on the full carbon fork, so it’s practical as well as comfortable.

Take the race-inspired DNA of our road bikes, throw in some flat bar practicality, and what do you have? The Nulane, that’s what. Powerful flat mount Tektro disc brakes offer progressive, reassuring stopping power in any weather conditions.

Shimano’s reliable and smooth-shifting Claris 2×8 transmission ensures you’re always in the right gear. And the comfortable, lightweight full carbon fork helps smooth your way, even on rougher roads. Commuter, trainer or explorer: where will your Nulane take you today?

Specification

Frame	Aluminium Superlite Trekking Sport, Flat Mount Disc, 12×142mm, AXH
Fork	CUBE TS Disc, Full Carbon, Taper, Flat Mount, 12×100mm
Brake System	Tektro HD-R280, Hydr. Disc, Flat Mount (160/160)
Rear Derailleur	Shimano Claris RD-R2000-SS, 8-Speed
Front Derailleur	Shimano Claris FD-R2000-BM, 31.8mm
Shifters	Shimano Claris SL-R2000
Bottom Bracket	Shimano BB-MT500PA, 92mm Pressfit
Crankset	Shimano Claris FC-R2000, 50×34T, BB-RS500
Cassette	Shimano CS-HG200, 12-32T
Chain	KMC Z8.3
Handlebar	CUBE Flat Race Bar, 660mm
Stem	CUBE Performance Stem Pro, 31.8mm
Grips	ACID Travel
Headset	VP Semi-Integrated, 1 1/8”, Bottom Integrated, 1 1/4”
Wheelset	CUBE RA 1.9 Aero Disc, Tubeless Ready
Tyres	Schwalbe Little Big Ben, Active, 40-622
Seat Post	CUBE Performance Post, 27.2mm
Saddle	Natural Fit Nuance
Pedals	ACID PP Trekking
Weight	10.9kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
X Small	155cm (5’0”)	163cm (5’3”)
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	XS	S	M
Seat Tube	430	460	490
Top Tube Horizontal	530	544	568
Seat Angle	75°	74.5°	74°
Head Tube Angle	70°	70.5°	71.5°
Chainstays	442	442	442
Head tube	132	142	172
Wheelbase	1047	1052	1062
BB-Height to Hub	60	60	60
Reach	385	391	400
Stack	542	553	585
Seatpost Length	350	350	350
Seatpost Diameter	27.2	27.2	27.2
Stem Angle	6°	6°	6°
Crank Length	170	170	170
Max Tyre Diameter	711	711	711
Max Tyre Width	40	40	40
Stem Length	90	90	90
Handlebar Width	660	660	660

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
