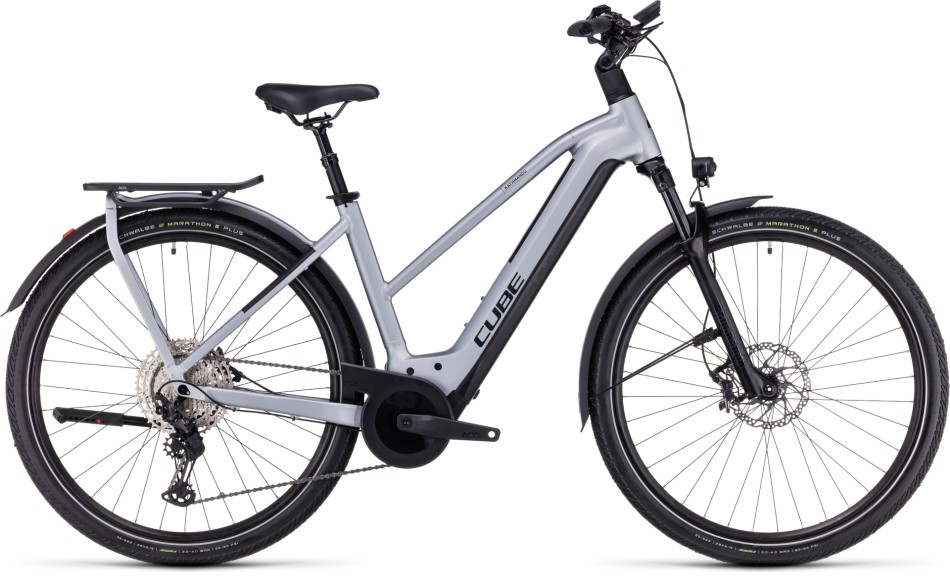

Cube Kathmandu Hybrid SLX 2023 Trapeze Polar/Black eBike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

Designed for comfort, versatility and durability, the Kathmandu’s frame – whether you choose the Men’s version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range.

Efficient Comfort Geometry works exactly the way you’d expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you’ll love – and it’s the perfect way to add accessories and carry whatever you need with you.

It’s not for nothing that many people regard Kathmandu as the adventure capital of the world. With its fourth-generation Bosch power, Rockshox suspension fork and Shimano XT gears and brakes, the Kathmandu Hybrid SLX 750 captures the spirit of adventure and makes it comfortable, accessible and, above all, fun.

Specification

Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Fork	RockShox Recon Silver RL Air, Tapered, 15×110mm, 100mm, Lockout
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Remote	Bosch LED Remote
Display	Bosch Kiox 300
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Shimano XT BR-M8120/M8100, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano Deore SL-M6100-IR, Direct Attach
Crankset	ACID E-Crank, 40T, 175mm (EE: 170mm)
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	Shimano CN-M6100
Front Hub	CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub	CUBE Engineered By Newmen, 12mm, Boost, Centerlock
Rims	CUBE EX23, 36H, Disc, Tubeless Ready
Tyres	Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622
Stem	CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar	CUBE Comfort Trail Bar, 700mm
Grips	ACID Travel Comfort
Seat Post	CUBE Suspension Seatpost HD, 30.9mm
Seatclamp	CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm)
Saddle	Natural Fit Sequence Comfort
Headset	M/Z: ACROS AZF-1035
Pedals	ACID PP Trekking
Front Light	ACID Front Light PRO-E 110, 5-16V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID FM Pure Kickstand
Mudguards	ACID 65 Integrated Carrier 3.0
Bell	Ring Bell
Carrier	CUBE Integrated Carrier 3.0, ACID RILink Adapter Compatible
Weight	27.9 kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
50cm	163cm (5’4”)	173cm (5’7”)
54cm	173cm (5’8”)	180cm (5’11”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	50cm	54cm
Seat Tube	480	520
Top Tube Horizontal	633	635
Seat Tube Angle	74	74
Head Tube Angle	67.5	67.5
Chain Stays	460	460
Head Tube	133	144
Wheelsbase	1195	1198
BB-Height to Hub	75	75
Standover Height	677	689
Reach	447	446
Stack	652	662
Crank Length	170	170
Max Tyre Width	56	56
Stem Length	65	65

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
