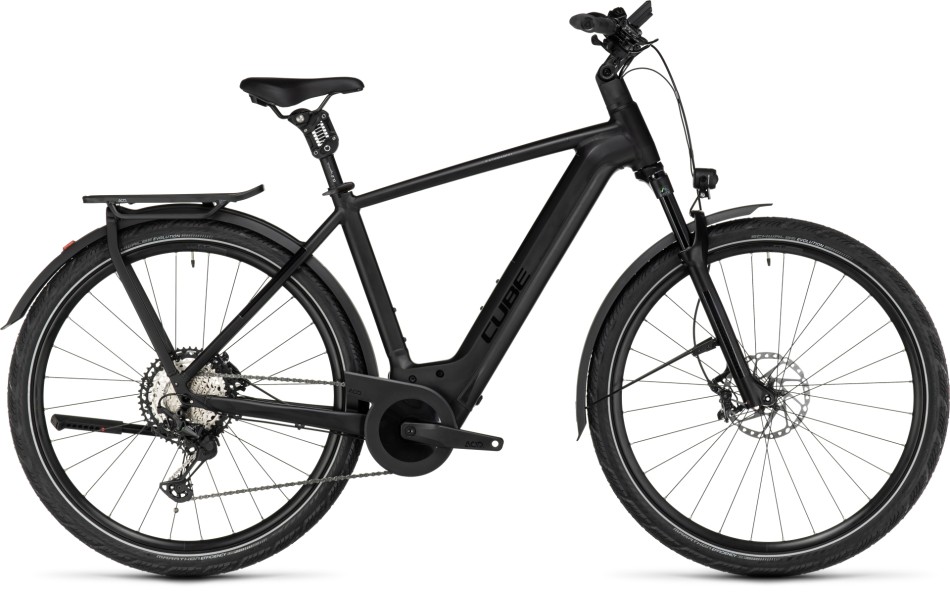

Cube Kathmandu Hybrid SLT 2023 Black/Metal eBike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

Designed for comfort, versatility and durability, the Kathmandu’s frame – whether you choose the Men’s version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range.

Efficient Comfort Geometry works exactly the way you’d expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you’ll love – and it’s the perfect way to add accessories and carry whatever you need with you.

An adventurous spirit can go hand in hand with comfort and style. Combining road-smoothing Rockshox and Byschulz suspension with fourth-generation Bosch power and the reliability of Shimano’s 1×12 gears and powerful hydraulic disc brakes, it’s the Kathmandu Hybrid SLT 750’s sophisticated frame design and clever accessories that seal the deal. A grand tourer for grand tours…

Specification

Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Fork	RockShox Recon Gold RL Air, Tapered, 15×110mm, 100mm, Lockout
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Remote	Bosch LED Remote
Display	Bosch Kiox 300
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Shimano XT BR-M8120/M8100, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano Deore SL-M6100-IR, Direct Attach
Crankset	ACID E-Crank, 40T, 175mm (EE: 170mm)
Cassette	Shimano XT CS-M8100, 10-51T
Chain	Shimano CN-M8100
Wheelset	Newmen Performance 25, 28/28 Spokes, 15×110mm / 12×148mm, Tubeless Ready
Tyres	Schwalbe Marathon Efficiency, Super Race, V-Guard, 55-622
Stem	CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar	CUBE Comfort Trail Bar, 700mm
Grips	ACID Travel Comfort
Seat Post	BySchulz G.2 Parallelogram Suspension Seatpost, 30.9mm
Seatclamp	CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm)
Saddle	Natural Fit Sequence Comfort
Headset	M/Z: ACROS AZF-1035
Pedals	ACID PP Trekking
Front Light	ACID Front Light PRO-E 110, 5-16V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID FM Pure Kickstand
Mudguards	ACID 65 Integrated Carrier 3.0
Bell	Ring Bell
Carrier	CUBE Integrated Carrier 3.0, ACID RILink Adapter Compatible
Weight	27.9 kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
50cm	163cm (5’4”)	173cm (5’7”)
54cm	173cm (5’8”)	180cm (5’11”)
58cm	180cm (5’11”)	188cm (6’2”)
62cm	188cm (6’2”)	196cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	50cm	54cm	58cm	62cm
Seat Tube	480	520	560	600
Top Tube Horizontal	634	635	640	650
Seat Tube Angle	74	74	74	74
Head Tube Angle	67.5	67.5	67.5	67.5
Chain Stays	460	460	460	460
Head Tube	124	124	143	164
Wheelsbase	1196	1197	1203	1215
BB-Height to Hub	75	75	75	75
Standover Height	797	823	856	889
Reach	451	452	451	455
Stack	644	644	661	681
Crank Length	170	170	170	170
Width Tires Maximum	56	56	56	56
Stem Length	65	65	80	80

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
