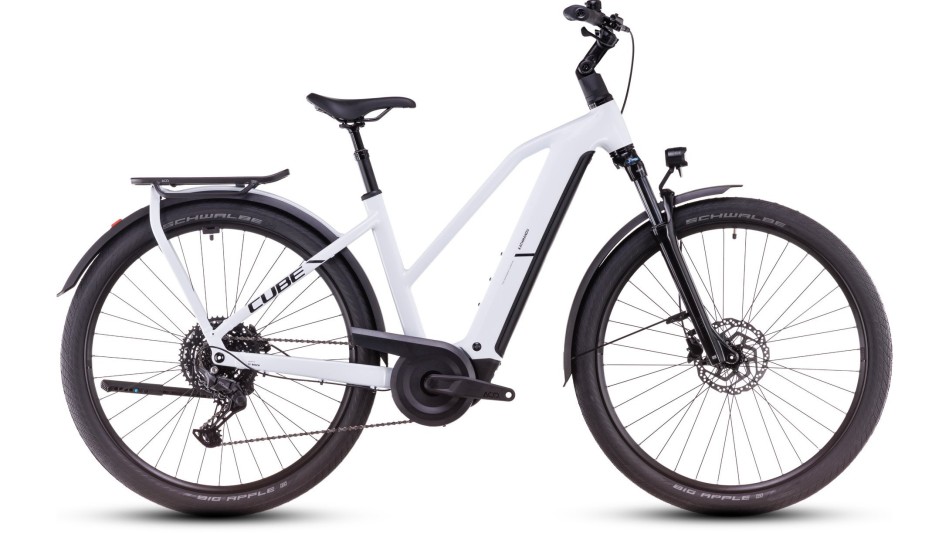

Cube Kathmandu Hybrid One 800 2025 Trapeze Polar/Black eBike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

You’ll instantly recognise CUBE’s Kathmandu Hybrid as a piece of timelessly elegant bicycle design, but it’s stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800 Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough.

Integrated cables complement the frame’s clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there’s an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Adventure is what you make it, and the Kathmandu Hybrid ONE 800 from CUBE is ready whenever you are. With its 800 Wh PowerTube battery and powerful Bosch CX drive, you’ve up to 85 Nm of pedalling assistance at your disposal. Combined with the easy shifting and wide range of Shimano’s Cues 1×10 gears, it’s more than enough to take on any route with ease.

The Suntour air suspension fork, suspension seatpost and adjustable stem are all there to make even long days in the saddle enjoyable. Strong, dependable Shimano hydraulic disc brakes give you safe stopping in all weathers. And a full complement of accessories, including lights and mudguards to accompany our Integrated Carrier 3.0, means you’re ready for anything.

Specification

Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
Fork	SR Suntour NX1-32 LO Air, Tapered, 15×110mm, 100mm
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm), HIC
Stem	CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar	CUBE Comfort Trail Bar, 700mm
Brake System	Shimano BR-MT200, Hydr. Disc Brake (180/180)
Motor	Bosch Drive Unit Performance Line CX Generation 5, 85Nm (BDU38), Smart System
Battery	Bosch PowerTube 800
Charger	Bosch 2A
Remote	Bosch Purion 200 w/ Integrated Display
Display	0
Shifter	Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano Cues RD-U6000-GS, 10-Speed
Crankset	ACID MTB Hybrid Pro
Cassette	Shimano Cues CS-LG300, 11-48T
Chain	KMC eGlide
Rims	CUBE EX25, 36H, Disc, Tubeless Ready
Front Hub	CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub	Shimano FH-MT400-B, 12mm, Boost, Centerlock
Tyres	Schwalbe Big Apple, Active, 55-622
Pedals	ACID PP MTB
Saddle	ACID Sequence Pro Plus
Seatpost	CUBE Suspension Seatpost HD, 31.6mm
Front Light	ACID Front Light PRO-E 60 X-Connect, 12V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID FM Pure Kickstand
Mudguard	ACID 65 Integrated Carrier 3.0
Quoted Weight	27.4 kg
Max System Weight	140 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
46cm	153cm (5’0”)	163cm (5’4”)
50cm	163cm (5’4”)	173cm (5’7”)
54cm	173cm (5’8”)	180cm (5’11”)
58cm	180cm (5’11”)	188cm (6’2”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	46cm	50cm	54cm	58cm
Seat Tube	420	460	510	560
Top Tube Horizontal	590	590	610	630
Seat Angle	73.5°	73.5°	73°	73°
Head Tube Angle	68°	68°	68.5°	68.5°
Chainstays	499	499	499	499
Head Tube	110	110	125	140
Wheelbase	1173	1173	1182	1204
BB Height	68	68	68	68
Protrusion Height – 80Mm	769	777	817	850
Reach	401	401	410	426
Stack	638	638	654	668
Length Seat Post	300	300	300	300
Diameter Seatpost	31.6	31.6	31.6	31.6
Crank Length	175	175	175	175
Diameter Tire Maximum	750	750	750	750
Width Tire Maximum	56	56	56	56
Stem Length	65	65	80	80
Handlebar Width	700	700	700	700

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 2
Intended Use	Leisure riding and trekking under moderate effort
Intended Terrain	Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less
Recommended riding skills	No special riding skills required

Additional Information

Manufacturer	Cube
RRP	No
