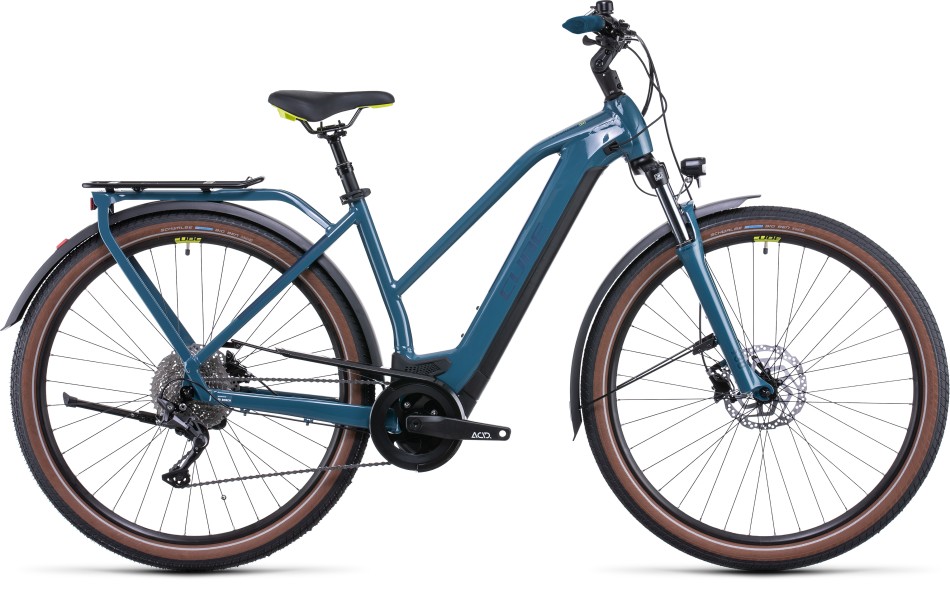

Cube Kathmandu Hybrid One 625 2022 Trapeze Teal/Lime eBike
The Kathmandu Hybrid ONE 625 will help you get to wherever your imagination leads you.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Mondraker Chaser 2023 Graphite/Black eMTB
Starting at: £3,374.99
-
Mondraker Crafty RR 2023 eMTB
Starting at: £4,874.99
-
Cube Touring Hybrid One 500 2023 Grey/White eBike
Starting at: £1,818.99
Details
The Kathmandu Hybrid ONE 625 will help you get to wherever your imagination leads you. Shimano’s easy-to-use, legendarily reliable 1×10 gears work seamlessly with Bosch’s smooth, fourth-generation drive unit and high-capacity 625Wh battery to make light work of any journey, whether it’s across town or across countries.
The Suntour suspension fork, suspension seatpost and adjustable stem ensure you’re comfortable for the duration.
Powerful Shimano hydraulic disc brakes bring you safely to a stop in all weathers. And a full complement of accessories – from lights and mudguards to our neat Integrated Carrier – means you’re ready for anything.
Specification
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0 |
| Fork | SR Suntour NVX30 Coil, 100mm |
| Drive Unit | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
| Battery | Bosch PowerTube 625 (battery weight 3.6kg) |
| Display | Bosch Purion |
| Charger | Bosch 2A (4.2h 50% – 8.8h 100%) |
| Brake System | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| Rear Derailleur | Shimano Deore RD-M4120-SGS, 10-Speed |
| Shifters | Shimano Deore SL-M4100, Rapidfire-Plus |
| Crankset | ACID E-Crank, 38T, 175mm (EE: 170mm) |
| Cassette | Shimano Deore CS-M4100, 11-42T |
| Chain | KMC X10 |
| Front Hub | Shimano HB-TX505, QR, Centerlock |
| Rear Hub | Shimano FH-TX505, QR, Centerlock |
| Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
| Tyres | Schwalbe Big Ben, Performance, 55-622 |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar | CUBE Comfort Trail Bar, 700mm |
| Grips | Natural Fit Comfort |
| Seat Post | CUBE Suspension Seatpost HD, 30.9mm |
| Seatclamp | CUBE Varioclose, 34.9mm |
| Saddle | Natural Fit Sequence Comfort |
| Headset | M/Z: ACROS AZF-1039 |
| Pedals | ACID PP Trekking |
| Front Light | CUBE Shiny 50 Lux, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | CUBEstand Cmpt |
| Mudguards | ACID 65 BB-Mount |
| Bell | Easy Bell |
| Carrier | CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible |
| Structural Weight | 140 kg – The maximum structural weight consists of the bike, rider and load (luggage rack or trailer). |
| Weight | 26,1 kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| 46cm | 153cm (5’0”) | 163cm (5’4”) |
| 50cm | 163cm (5’4”) | 173cm (5’8”) |
| 54cm | 173cm (5’8”) | 180cm (5’11”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | 46cm | 50cm | 54cm | |
| Seat Tube | 440 | 480 | 520 | |
| Top Tube Horizontal | 580 | 590.1 | 600.3 | |
| Seat Tube Angle | 72 | 71.3 | 71.3 | |
| Head Tube Angle | 68.5 | 68.5 | 68.5 | |
| Chain Stays | 460 | 460 | 460 | |
| Head Tube | 114 | 125 | 134 | |
| Wheelsbase | 1140.3 | 1145.2 | 1155.7 | |
| BB-Height to Hub | 67.5 | 67.5 | 67.5 | |
| Standover Height | 777.4 | 775.1 | 776.4 | |
| Reach | 407.6 | 408.5 | 415.7 | |
| Stack | 632.6 | 642.7 | 650.3 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Video
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
