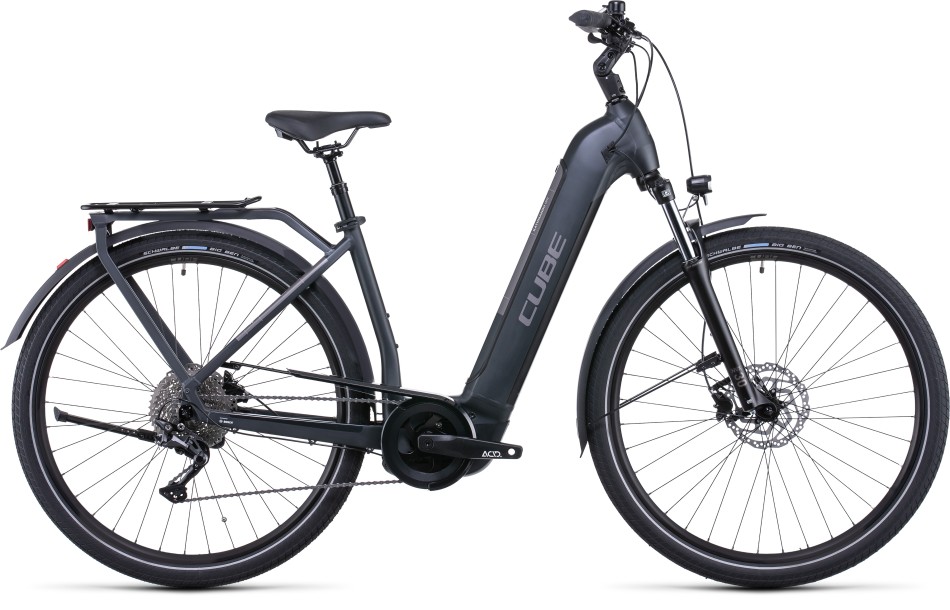

Cube Kathmandu Hybrid One 625 2022 Easy Entry Grey/Teak eBike

The Kathmandu Hybrid ONE 625 will help you get to wherever your imagination leads you.

Availability: Sold out

Product Name Price

10% of free accessories

Get 10% of free accessories when you purchase a bike.

Excludes discounted bikes, ex-demo bikes and Cyclescheme.

Part exchange + save!

10% off your bike and accessories when you part exchange.

*Terms apply.

Price beat now

We will beat our competitors' prices!

*Terms apply.

We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.

Cube

Recently Viewed

Details

The Kathmandu Hybrid ONE 625 will help you get to wherever your imagination leads you. Shimano’s easy-to-use, legendarily reliable 1×10 gears work seamlessly with Bosch’s smooth, fourth-generation drive unit and high-capacity 625Wh battery to make light work of any journey, whether it’s across town or across countries.

The Suntour suspension fork, suspension seatpost and adjustable stem ensure you’re comfortable for the duration.

Powerful Shimano hydraulic disc brakes bring you safely to a stop in all weathers. And a full complement of accessories – from lights and mudguards to our neat Integrated Carrier – means you’re ready for anything.

Specification

Frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
Fork SR Suntour NVX30 Coil, 100mm
Drive Unit Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery Bosch PowerTube 625 (battery weight 3.6kg)
Display Bosch Purion
Charger Bosch 2A (4.2h 50% – 8.8h 100%)
Brake System Shimano BR-MT200, Hydr. Disc Brake (180/180)
Rear Derailleur Shimano Deore RD-M4120-SGS, 10-Speed
Shifters Shimano Deore SL-M4100, Rapidfire-Plus
Crankset ACID E-Crank, 38T, 175mm (EE: 170mm)
Cassette Shimano Deore CS-M4100, 11-42T
Chain KMC X10
Front Hub Shimano HB-TX505, QR, Centerlock
Rear Hub Shimano FH-TX505, QR, Centerlock
Rims CUBE EX23, 36H, Disc, Tubeless Ready
Tyres Schwalbe Big Ben, Performance, 55-622
Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar CUBE Comfort Trail Bar, 700mm
Grips Natural Fit Comfort
Seat Post CUBE Suspension Seatpost HD, 30.9mm
Seatclamp CUBE Varioclose, 34.9mm
Saddle Natural Fit Sequence Comfort
Headset M/Z: ACROS AZF-1039
Pedals ACID PP Trekking
Front Light CUBE Shiny 50 Lux, 12V, DC
Rear Light ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand CUBEstand Cmpt
Mudguards ACID 65 BB-Mount
Bell Easy Bell
Carrier CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible
Structural Weight 140 kg – The maximum structural weight consists of the bike, rider and load (luggage rack or trailer).
Weight 26,1 kg

Specifications are subject to change without notice

Size Guide

Frame Size Minimum Height Maximum Height
46cm 153cm (5’0”) 163cm (5’4”)
50cm 163cm (5’4”) 173cm (5’8”)
54cm 173cm (5’8”) 180cm (5’11”)
58cm 180cm (5’11”) 188cm (6’2”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size 50cm 54cm 58cm 62cm
Seat Tube 440 480 520 560
Top Tube Horizontal 590 600 610 620
Seat Tube Angle 75 75 75 75
Head Tube Angle 68.5 68.5 68.5 68.5
Chain Stays 490 490 490 490
Head Tube 145 150 155 160
Wheelsbase 1157.3 1167.9 1178.5 1189.1
BB-Height to Hub 75 75 75 75
Standover Height 498.2 494.1 494.1 494.1
Reach 384.5 393.3 402 410.8
Stack 668.3 673 677.7 682.5
Max Tyre Width 56 56 56 56

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Video

Additional Information
Manufacturer Cube
RRP N/A
Write Your Own Review
You're reviewing: Cube Kathmandu Hybrid One 625 2022 Easy Entry Grey/Teak eBike
