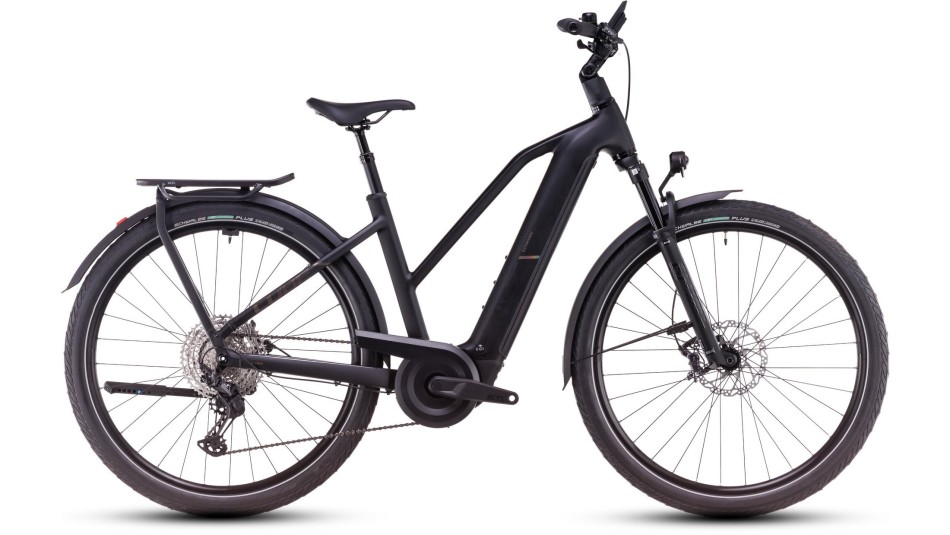

Cube Kathmandu Hybrid Exc 800 2025 Trapeze Black/Prism eBike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

The CUBE Kathmandu Hybrid’s design is classically elegant – familiar, even – but it’s stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and 800 Wh PowerTube battery are just the start.

Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame’s clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof.

And, of course, there’s an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

The CUBE Kathmandu Hybrid EXC 800 is built to go places. We started with Bosch’s CX motor and an 800 Wh PowerTube battery, to give you up to 85 Nm of pedal assistance on your way to work or to adventure. Then we chose Shimano’s legendary XT 1×12 gears, for their huge range and dependable performance. Added Shimano XT hydraulic disc brakes, so you know you can always slow and stop safely.

And finished with a smooth, comfortable Fox 34 AWL Sport suspension fork. But that’s not quite all, because of course there’s also an adjustable stem, suspension seatpost and our strong, elegant and versatile Integrated Carrier 3.0, plus a full complement of accessories.

Specification

Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
Fork	Fox 34 Float Sport AWL , Tapered, 15×110mm, E-Bike Optimized, 100mm
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm), HIC
Stem	CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar	CUBE Comfort Trail Bar, 700mm
Brake System	Shimano XT BR-M8120, Hydr. Disc Brake (180/180)
Motor	Bosch Drive Unit Performance Line CX Generation 5, 85Nm (BDU38), Smart System
Battery	Bosch PowerTube 800
Charger	Bosch 2A
Remote	Bosch LED Remote
Display	Bosch Kiox 500
Shifters	Shimano XT BR-M8120, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Crankset	ACID MTB Hybrid Pro
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	KMC e12
Rims	CUBE EX25, 32H, Disc, Tubeless Ready
Front Hub	CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub	CUBE Engineered By Newmen, 12mm, Boost, Centerlock
Tyres	Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Pedals	ACID PP MTB
Saddle	ACID Sequence Pro Plus
Seatpost	CUBE Suspension Seatpost HD, 31.6mm
Front Light	ACID Front Light PRO-E 150 X-Connect, 12V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID FM Pure Kickstand
Quoted Weight	27.1 kg
Max System Weight	160 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
46cm	153cm (5’0”)	163cm (5’4”)
50cm	163cm (5’4”)	173cm (5’7”)
54cm	173cm (5’8”)	180cm (5’11”)
58cm	180cm (5’11”)	188cm (6’2”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	46cm	50cm	54cm	58cm
Seat Tube	420	460	510	560
Top Tube Horizontal	590	590	610	630
Seat Angle	73.5°	73.5°	73°	73°
Head Tube Angle	68°	68°	68.5°	68.5°
Chainstays	499	499	499	499
Head Tube	110	110	125	140
Wheelbase	1173	1173	1182	1204
BB Height	68	68	68	68
Protrusion Height – 80Mm	769	777	817	850
Reach	401	401	410	426
Stack	638	638	654	668
Length Seat Post	300	300	300	300
Diameter Seatpost	31.6	31.6	31.6	31.6
Crank Length	175	175	175	175
Diameter Tire Maximum	750	750	750	750
Width Tire Maximum	56	56	56	56
Stem Length	65	65	80	80
Handlebar Width	700	700	700	700

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 2
Intended Use	Leisure riding and trekking under moderate effort
Intended Terrain	Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less
Recommended riding skills	No special riding skills required

Additional Information

Manufacturer	Cube
