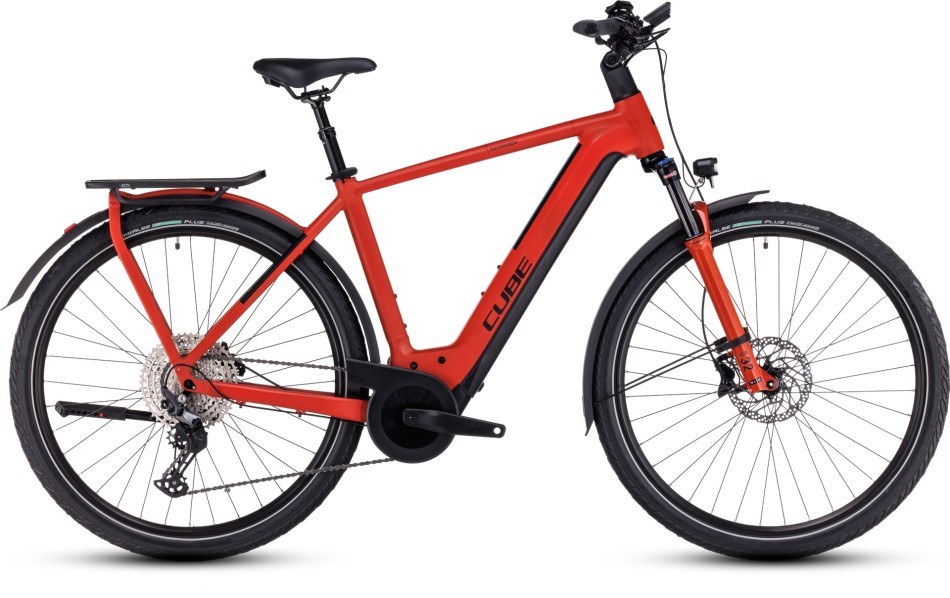

Cube Kathmandu Hybrid Exc 2023 Red/Black eBike

54cm in stock now! Delivery in 2-3 working days. Other sizes shown available with Cube. Expect delivery within 14 days of placing an order.

Designed for comfort, versatility and durability, the Kathmandu’s frame – whether you choose the Men’s version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range.

Efficient Comfort Geometry works exactly the way you’d expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you’ll love – and it’s the perfect way to add accessories and carry whatever you need with you.

The further you pedal, the more you need a bike that won’t let you down. With its fourth-generation Bosch CX drive system, high-capacity 750wh battery and dependable Shimano 1×12 gears, the Kathmandu Hybrid Exc 750 has got your back. For leisure, for commuting, for exploring the world… It’s the ideal companion.

Specification

Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Fork	SR Suntour XCR32 LO-R Air, Tapered, 15×110mm, 100mm, Lockout
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Remote	Bosch LED Remote
Display	Bosch Kiox 300
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shifters	Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Crankset	ACID E-Crank, 40T, 175mm (EE: 170mm)
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	Shimano CN-M6100
Front Hub	Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub	Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims	CUBE EX23, 36H, Disc, Tubeless Ready
Tyres	Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Stem	CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar	CUBE Comfort Trail Bar, 700mm
Grips	Natural Fit Comfort
Seat Post	CUBE Suspension Seatpost HD, 30.9mm
Seatclamp	CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm)
Saddle	Natural Fit Sequence Comfort
Headset	M/Z: ACROS AZF-1035
Pedals	ACID PP Trekking
Front Light	CUBE Shiny 50 Lux, 12V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID Pro Flat Mount Kickstand
Mudguards	ACID 65 Integrated Carrier 3.0
Bell	Ring Bell
Carrier	CUBE Integrated Carrier 3.0, ACID RILink Adapter Compatible
Weight	27.7 kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
50cm	163cm (5’4”)	173cm (5’7”)
54cm	173cm (5’8”)	180cm (5’11”)
58cm	180cm (5’11”)	188cm (6’2”)
62cm	188cm (6’2”)	196cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	50cm	54cm	58cm	62cm
Seat Tube	480	520	560	600
Top Tube Horizontal	634	635	640	650
Seat Tube Angle	74	74	74	74
Head Tube Angle	67.5	67.5	67.5	67.5
Chain Stays	460	460	460	460
Head Tube	124	124	143	164
Wheelsbase	1196	1197	1203	1215
BB-Height to Hub	75	75	75	75
Standover Height	797	823	856	889
Reach	451	452	451	455
Stack	644	644	661	681
Crank Length	170	170	170	170
Width Tires Maximum	56	56	56	56
Stem Length	65	65	80	80

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
