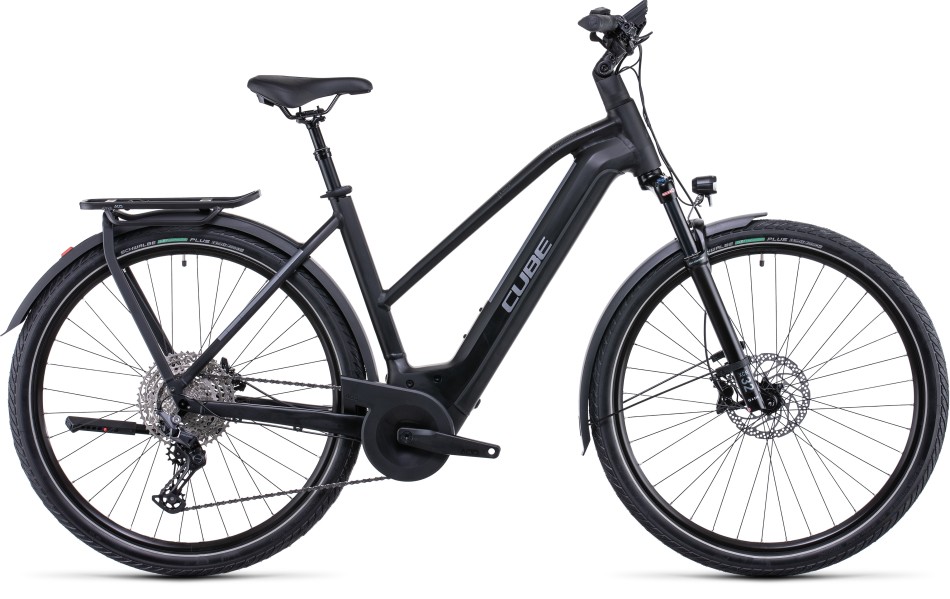

Cube Kathmandu Hybrid Exc 2022 Trapeze Black/Silver eBike
Cube Kathmandu Hybrid Exc 2022 Trapeze Black/Silver eBike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Marin Alpine Trail Carbon 1 2024 Enduro Bike
Starting at: £2,276.99
-
Hope Tech V4 Brake Pads Sintered
£20.00 -
Marin Gestalt 1 2024 Gravel Bike
Starting at: £1,044.99
Details
Brand-new for 2022, the Kathmandu Hybrid EXC 750 offers our largest capacity battery yet, so you can ride for longer. We’ve kept all the best bits, like Bosch’s fourth-generation drive system, and added the reliability and huge range of Shimano’s Deore 1×12 gears – which will help you tackle any route with ease.
Powerful four-piston Shimano hydraulic disc brakes have the stopping power to keep you safe in all weathers. A suspension seatpost, adjustable stem and air-sprung Suntour suspension fork ensure you’re comfortable, even for long days out. And the Integrated Carrier 3.0, mudguards, lighting system and kickstand give you the tools you need for any errand or adventure.
Specification
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube) |
| Fork | SR Suntour XCR32 LO-R Air, Tapered, 15×110mm, 100mm, Lockout |
| Drive Unit | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Battery | Bosch PowerTube 750Wh (battery weight 4.4kg) |
| Display | Bosch Kiox 300 |
| Charger | Bosch 4A (2.1h 50% – 6h 100%) |
| Brake System | Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180) |
| Rear Derailleur | Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed |
| Shifters | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| Crankset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear Hub | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
| Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
| Tyres | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar | CUBE Comfort Trail Bar, 700mm |
| Grips | Natural Fit Comfort |
| Seat Post | CUBE Suspension Seatpost HD, 30.9mm |
| Seatclamp | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm) |
| Saddle | Natural Fit Sequence Comfort |
| Headset | M/Z: ACROS AZF-1035 |
| Pedals | ACID PP Trekking |
| Front Light | CUBE Shiny 50 Lux, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | ACID Pro Flat Mount Kickstand |
| Mudguards | ACID 65 Integrated Carrier 3.0 |
| Bell | Ring Bell |
| Carrier | CUBE Integrated Carrier 3.0, ACID RILink Adapter Compatible |
| Weight | 27,5 kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| 50cm | 163cm (5’4”) | 173cm (5’7”) |
| 54cm | 173cm (5’8”) | 180cm (5’11”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | 50cm | 54cm |
| Seat Tube | 480 | 520 |
| Top Tube Horizontal | 633 | 635 |
| Seat Tube Angle | 74 | 74 |
| Head Tube Angle | 67.5 | 67.5 |
| Chain Stays | 460 | 460 |
| Head Tube | 133 | 144 |
| Wheelsbase | 1195 | 1198 |
| BB-Height to Hub | 75 | 75 |
| Standover Height | 677 | 689 |
| Reach | 447 | 446 |
| Stack | 652 | 662 |
| Crank Length | 170 | 170 |
| Max Tyre Width | 56 | 56 |
| Stem Length | 65 | 65 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Video
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
