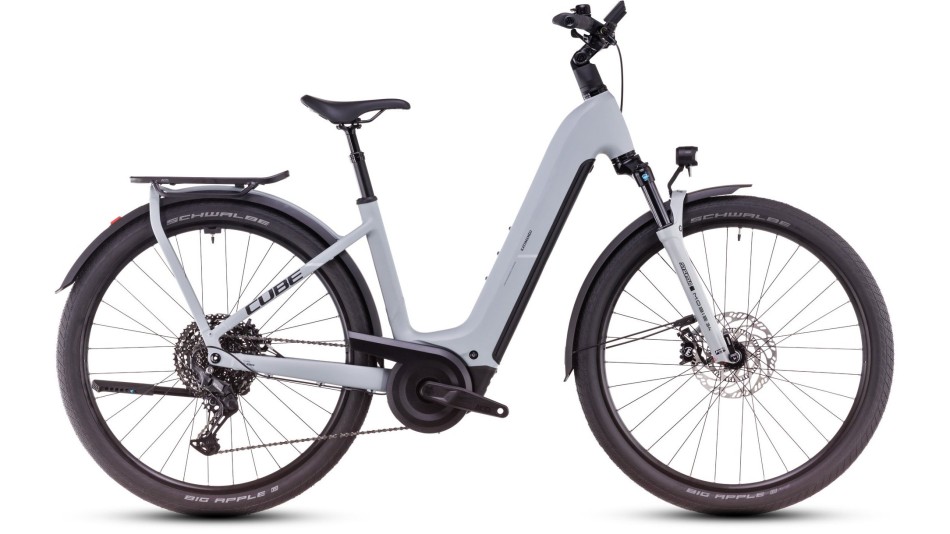

Cube Kathmandu Hybrid EX 800 2025 Easy Entry Haze/Black eBike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

The Kathmandu Hybrid’s Easy Entry frame is designed to do exactly what it says, making adventurous cycling as accessible and straightforward as possible.

The neatly housed Bosch CX drive and 800 Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame’s clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof.

And, of course, there’s an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

The Kathmandu Hybrid EX 800 from CUBE has got your back, wherever you take it. Its powerful Magura MT C ABS hydraulic disc brakes feature an ABS system to prevent the front wheel from losing grip, helping to keep you safe in all weathers and even under heavy braking.

The Bosch CX drive has up to 85 Nm of torque in pedal assistance to dish out, backed up by the 800 Wh PowerTube battery and delivered to the rear wheel via Shimano’s easy-to-use Cues 11-speed gears.

There’s a suspension seatpost, adjustable stem and a Suntour Mobie 34 fork to keep you comfortable. The Integrated Carrier 3.0 is adaptable and sturdy enough to take care of pretty much any load-carrying, whether it’s for commuting or touring. And there’s a full complement of accessories, so you can just concentrate on the ride.

Specification

Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
Fork	SR Suntour Mobie 35 EQ Air, ABS, Tapered, 15×110mm, 100mm
Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2” (ZS 56mm), Bottom Zero-Stack 1 1/2” (ZS 56mm), HIC
Stem	CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar	CUBE Comfort Trail Bar, 700mm
Brake System	Magura MT C ABS, Hydr. Disc Brake (203/203)
Motor	Bosch Drive Unit Performance Line CX Generation 5, 85Nm (BDU38), Smart System
Battery	Bosch PowerTube 800
Charger	Bosch 2A
Remote	Bosch LED Remote
Display	Bosch Kiox 300
Shifters	Magura MT C ABS, Hydr. Disc Brake (203/203)
Rear Derailleur	Shimano Cues RD-U6000-GS, 11-Speed
Crankset	ACID MTB Hybrid Pro
Cassette	Shimano Cues CS-LG400, 11-50T
Chain	KMC eGlide
Rims	CUBE EX25, 32H, Disc, Tubeless Ready
Front Hub	CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt
Rear Hub	CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt
Tyres	Schwalbe Big Apple, Active, 55-622
Pedals	ACID PP MTB
Saddle	ACID Sequence Pro Plus
Seatpost	CUBE Suspension Seatpost HD, 31.6mm
Front Light	ACID Front Light PRO-E 60 X-Connect, 12V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID FM Pure Kickstand
Mudguard	ACID 65 Integrated Carrier 3.0
Quoted Weight	29.2 kg
Max System Weight	160 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
46cm	153cm (5’0”)	163cm (5’4”)
50cm	163cm (5’4”)	173cm (5’8”)
54cm	173cm (5’8”)	180cm (5’11”)
58cm	180cm (5’11”)	188cm (6’2”)
62cm	188cm (6’2”)	196cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Frame Size	46cm	50cm	54cm	58cm	62cm
Seat Tube	420	460	510	560	600
Top Tube Horizontal	580	590	600	620	640
Seat Angle	73.5°	73.5°	73°	73°	73°
Head Tube Angle	67.5°	67.5°	68.5°	68.5°	68.5°
Chainstays	499	499	499	499	499
Head Tube	150	150	150	160	175
Wheelbase	1169	1179	1171	1192	1213
BB Height	75	75	75	75	75
Reach	378	388	390	408	424
Stack	680	680	685	694	708
Length Seat Post	300	300	300	300	300
Diameter Seatpost	31.6	31.6	31.6	31.6	31.6
Crank Length	170	170	170	170	170
Diameter Tire Maximum	750	750	750	750	750
Width Tire Maximum	56	56	56	56	56
Stem Length	65	90	90	90	90
Handlebar Width	700	700	700	700	700

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 2
Intended Use	Leisure riding and trekking under moderate effort
Intended Terrain	Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less
Recommended riding skills	No special riding skills required
