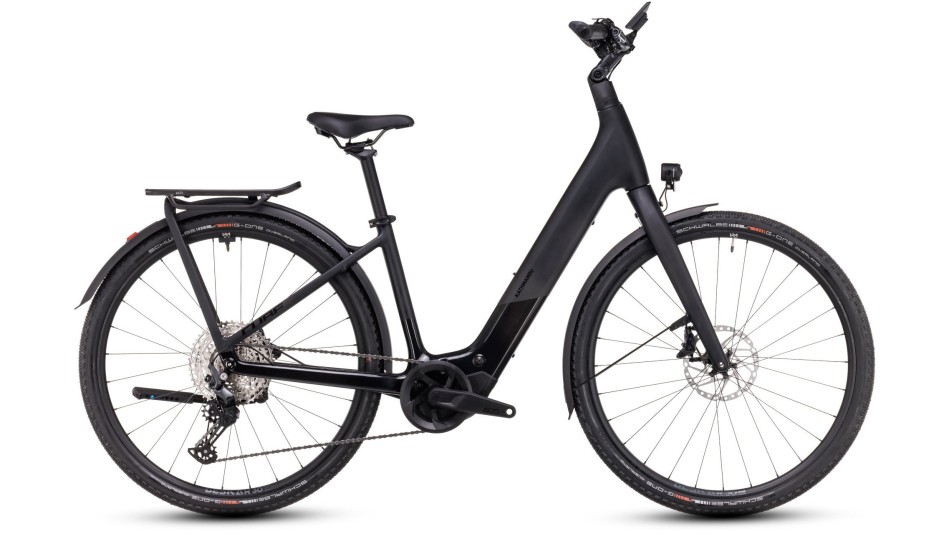

Cube Kathmandu Hybrid C:62 SLX 400X 2025 Easy Entry Carbon/Black Light eBike
A lighter touring bike means you can take more with you, but low weight is no good without strength. That's why, for the Kathmandu Hybrid C:62, we used our tried-and-tested C:62® carbon to build a frame structure
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
A lighter touring bike means you can take more with you, but low weight is no good without strength. That’s why, for the Kathmandu Hybrid C:62, we used our tried-and-tested C:62® carbon to build a frame structure that combines the load-bearing capacity you need with the comfort and ride handling that you’d expect from CUBE.
With a future-proof UDH gear hanger, advanced internal cable routing and Boost front and rear axles, it’s both elegant and easy to live with.
The rigid carbon fork is light and responsive, while the IC 3.0 rear carrier is adaptable and offers a sturdy platform for carrying whatever you need to take with you. Add the 400Wh battery, and it’s the complete package for lightweight hybrid touring.
Specification
| Frame | C:62® Advanced Twin Mold, Efficient Comfort Geometry, Boost148, Fixed Integrated Battery, Flat Mount Disc, Integrated Carrier 3.0, Advanced Internal Cable Routing, UDH™ |
| Fork | CUBE C:62® Technology, 1 1/2” – 1 1/2” Tapered, Internal Light Cable Option, 15×110mm |
| Drive Unit | Bosch Drive Unit Performance SX (55Nm) Cruise (250Watt), Smart System |
| Battery | Bosch CompactTuve 400 Smart System (battery weight 2.0kg) |
| Remote | Bosch LED Remote |
| Display | Bosch Kiox 500 |
| Charger | Bosch 4A Smart System (1.5h 50% – 3.5h 100%) |
| Brake System | Shimano Deore BR-M6100, Hydr. Disc Brake (180/180) |
| Rear Derailleur | Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed |
| Shifter | Shimano Deore SL-M6100-IR, Direct Attach |
| Crankset | ACID EMTB Hybrid Pro |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
| Wheelset | Newmen Beskar 30, 28/28 Spokes (Light/Base), 15×110mm / 12×148mm, Tubeless Ready |
| Tyres | Schwalbe G-ONE Overland, SuperGround, Kevlar, 50-622 |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar | CUBE Comfort Trail Bar, 700mm |
| Grips | ACID Travel Comfort |
| Seat Post | CUBE Performance Post, 31.6mm |
| Seatclamp | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm) |
| Saddle | Natural Fit Sequence Comfort |
| Headset | M/Z: ACROS AZF-1035 |
| Pedals | ACID PP MTB |
| Front Light | ACID Front Light PRO-E 110, 5-16V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | ACID FM Pure Kickstand |
| Mudguards | ACID 60 Integrated Carrier 3.0 |
| Bell | ACID Alpha GR |
| Carrier | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| Weight | 17.2 kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| 46cm | 153cm (5’0”) | 163cm (5’4”) |
| 50cm | 163cm (5’4”) | 173cm (5’8”) |
| 54cm | 173cm (5’8”) | 180cm (5’11”) |
| 58cm | 180cm (5’11”) | 188cm (6’2”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | 46cm | 50 cm | 54 cm | 58 cm |
| Seat Tube | 400 | 440 | 490 | 540 |
| Top Tube Horizontal | 593 | 605 | 617 | 629 |
| Seat Angle | 75° | 75° | 75° | 75° |
| Head Tube Angle | 70° | 70° | 70° | 70° |
| Chainstays | 490 | 490 | 490 | 490 |
| Head Tube | 180 | 195 | 210 | 230 |
| Wheelbase | 1143 | 1156 | 1170 | 1183 |
| BB-Height to Hub | 75 | 75 | 75 | 75 |
| Reach | 395 | 403 | 411 | 418 |
| Stack | 665 | 679 | 693 | 712 |
| Seatpost Length | 300 | 300 | 350 | 350 |
| Seatpost Diameter | 31.6 | 31.6 | 31.6 | 31.6 |
| Crank Length | 165 | 165 | 165 | 165 |
| Max Tyre Diameter | 746 | 746 | 746 | 746 |
| Max Tyre Width | 50 | 50 | 50 | 50 |
| Stem Length | 65 | 90 | 90 | 90 |
| Handlebar Width | 700 | 700 | 700 | 700 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Bike Classification
| Bike Classification | Category 2 |
| Intended Use | Leisure riding and trekking under moderate effort |
| Intended Terrain | Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less |
| Recommended riding skills | No special riding skills required |
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | No |
