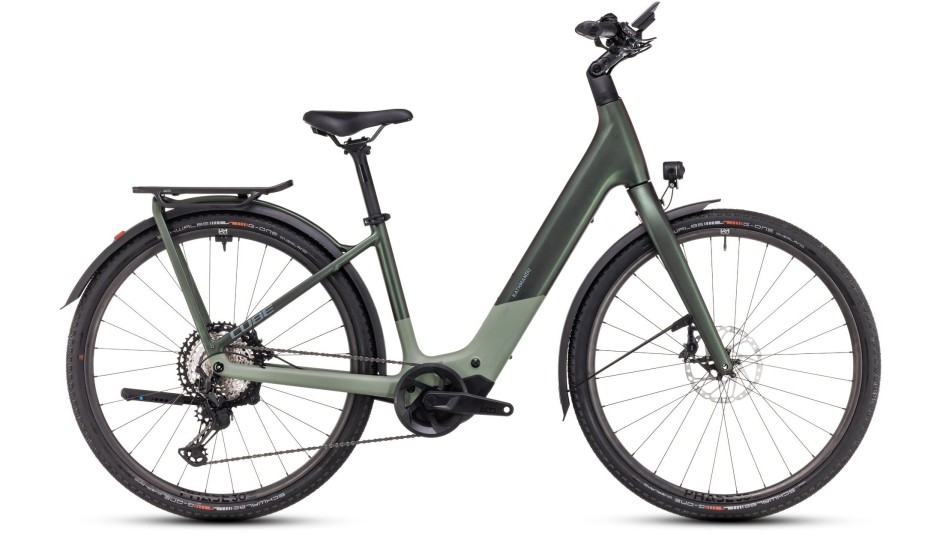

Cube Kathmandu Hybrid C:62 SLT 400X 2025 Easy Entry Stellar/Green Light eBike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

A lighter touring bike means you can take more with you, but low weight is no good without strength. That’s why, for the Kathmandu Hybrid C:62, we used our tried-and-tested C:62® carbon to build a frame structure that combines the load-bearing capacity you need with the comfort and ride handling that you’d expect from CUBE.

With a future-proof UDH gear hanger, advanced internal cable routing and Boost front and rear axles, it’s both elegant and easy to live with.

The rigid carbon fork is light and responsive, while the IC 3.0 rear carrier is adaptable and offers a sturdy platform for carrying whatever you need to take with you. Add the 400Wh battery, and it’s the complete package for lightweight hybrid touring.

Specification

Frame	C:62® Advanced Twin Mold, Efficient Comfort Geometry, Boost148, Fixed Integrated Battery, Flat Mount Disc, Integrated Carrier 3.0, Advanced Internal Cable Routing, UDH™
Fork	CUBE C:62® Technology, 1 1/2” – 1 1/2” Tapered, Internal Light Cable Option, 15×110mm
Stem	CUBE Performance Stem Pro, 31.8mm
Handlebar	CUBE Comfort Trail Bar, 700mm
Brake System	Shimano XT BR-M8100, Hydr. Disc Brake (180/180)
Motor	Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Battery	Bosch CompactTube 400
Charger	Bosch 4A
Remote	Bosch LED Remote
Display	Bosch Kiox 500
Shifters	Shimano XT BR-M8100, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Crankset	ACID MTB Hybrid Pro
Cassette	Shimano XT CS-M8100, 10-51T
Chain	Shimano CN-M8100
Wheelset	Newmen Phase 30, 28/28 Spokes (Light/Base), 15×110mm / 12×148mm, Tubeless Ready
Tyres	Schwalbe G-ONE Overland, SuperGround, Kevlar, 50-622
Pedals	ACID PP MTB
Saddle	Natural Fit Sequence Comfort
Seatpost	Newmen Advanced, Carbon, 31.6mm
Seatpost Clamp	CUBE Varioclose, 34.9mm
Front Light	ACID Front Light PRO-E 110, 5-16V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID FM Pure Kickstand
Quoted Weight	16.3 kg
Max System Weight	135 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
46cm	153cm (5’0”)	163cm (5’4”)
50cm	163cm (5’4”)	173cm (5’8”)
54cm	173cm (5’8”)	180cm (5’11”)
58cm	180cm (5’11”)	188cm (6’2”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	46cm	50 cm	54 cm	58 cm
Seat Tube	400	440	490	540
Top Tube Horizontal	593	605	617	629
Seat Angle	75°	75°	75°	75°
Head Tube Angle	70°	70°	70°	70°
Chainstays	490	490	490	490
Head Tube	180	195	210	230
Wheelbase	1143	1156	1170	1183
BB-Height to Hub	75	75	75	75
Reach	395	403	411	418
Stack	665	679	693	712
Seatpost Length	300	300	350	350
Seatpost Diameter	31.6	31.6	31.6	31.6
Crank Length	165	165	165	165
Max Tyre Diameter	746	746	746	746
Max Tyre Width	50	50	50	50
Stem Length	65	90	90	90
Handlebar Width	700	700	700	700

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 2
Intended Use	Leisure riding and trekking under moderate effort
Intended Terrain	Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less
Recommended riding skills	No special riding skills required

Additional Information
