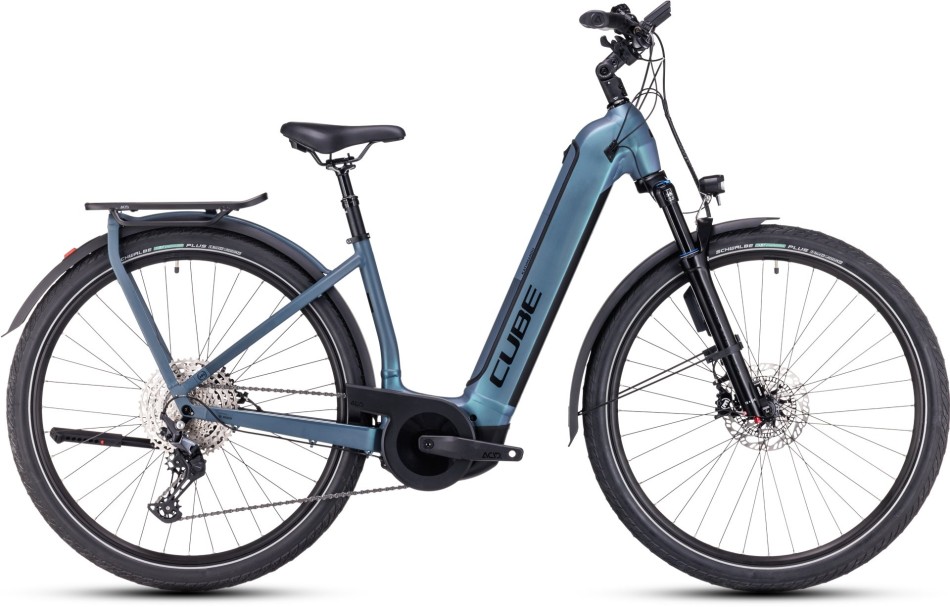

Cube Kathmandu Hybrid ABS 2024 Easy Entry eBike
Ushering in a new era of safe cycling, the Kathmandu Hybrid ABS 750 is the Bosch-powered hybrid that's got your back – literally.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
Designed for comfort, versatility and durability, the Kathmandu’s frame – whether you choose the Men’s version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range.
Efficient Comfort Geometry works exactly the way you’d expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you’ll love – and it’s the perfect way to add accessories and carry whatever you need with you.
In the old days, many people only used the rear brake out of caution or fear. The new Bosch eBike ABS now lets you brake more safely and confidently with both brakes at the same time. It can prevent the front wheel from locking and thus help to avoid skidding.
You remain safely in the saddle even during sudden heavy braking – whether you are on firm asphalt or slippery gravel paths. Because every e-bike is different, there is no one-size-fits-all ABS. Instead, there’s the right ABS for your e-bike type, supporting your braking process in the best possible way.
Ushering in a new era of safe cycling, the Kathmandu Hybrid ABS 750 is the Bosch-powered hybrid that’s got your back – literally. Featuring Bosch’s second-generation anti-lock brake system, you can ride in all weathers assured that the sophisticated electronics and powerful Magura hydraulic disc brakes will always ensure you can stop quickly and safely.
Specification
| Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube) |
| Fork | SR Suntour Mobie 35 EQ Air, ABS, Tapered, 15×110mm, 100mm |
| Drive Unit | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Battery | Bosch PowerTube 750Wh Smart System (battery weight 4.3kg) |
| Remote | Bosch LED Remote |
| Display | Bosch Kiox 300 |
| Charger | Bosch 4A Smart System (2.3h 50% – 6h 100%) |
| Brake System | Magura MT C ABS, Hydr. Disc Brake (180/180) |
| Rear Derailleur | Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed |
| Shifter | Shimano Deore SL-M6100-IR, Direct Attach |
| Crankset | ACID E-Crank, 40T, 175mm (EE: 170mm) |
| Cassette | Shimano Deore CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
| Front Hub | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| Rear Hub | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
| Rims | CUBE EX23, 36H, Disc, Tubeless Ready |
| Tyres | Schwalbe Energizer Plus, Performance, Green Guard, 55-622 |
| Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| Handlebar | CUBE Comfort Trail Bar, 700mm |
| Grips | ACID Travel Comfort |
| Seat Post | CUBE Suspension Seatpost HD, 30.9mm |
| Seatclamp | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm) |
| Saddle | Natural Fit Sequence Comfort |
| Headset | M/Z: ACROS AZF-1035 |
| Pedals | ACID PP Trekking |
| Front Light | CUBE Shiny 50 Lux, 12V, DC |
| Rear Light | ACID Mudguard Rear Light PRO-E, 12V, DC |
| Kickstand | ACID FM Pure Kickstand |
| Mudguards | ACID 65 Integrated Carrier 3.0 |
| Bell | Ring Bell |
| Carrier | CUBE Integrated Carrier 3.0, ACID RILink Adapter Compatible |
| Weight | 27.6 kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| 46cm | 153cm (5’0”) | 163cm (5’4”) |
| 50cm | 163cm (5’4”) | 173cm (5’8”) |
| 54cm | 173cm (5’8”) | 180cm (5’11”) |
| 58cm | 180cm (5’11”) | 188cm (6’2”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | 46cm | 50cm | 54cm | 58cm | |
| Seat Tube | 440 | 480 | 520 | 560 | |
| Top Tube Horizontal | 600 | 600 | 610 | 620 | |
| Seat Tube Angle | 75 | 75 | 75 | 75 | |
| Head Tube Angle | 68.5 | 68.5 | 68.5 | 68.5 | |
| Chain Stays | 490 | 490 | 490 | 490 | |
| Head Tube | 150 | 150 | 155 | 160 | |
| Wheelbase | 1167.9 | 1167.9 | 1178.5 | 1189.1 | |
| BB-Height to Hub | 75 | 75 | 75 | 75 | |
| Standover Height | 494.5 | 494.5 | 494.5 | 494.5 | |
| Reach | 393.3 | 393.3 | 402 | 410.8 | |
| Stack | 673.1 | 673.1 | 677.7 | 682.4 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Video
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | No |
