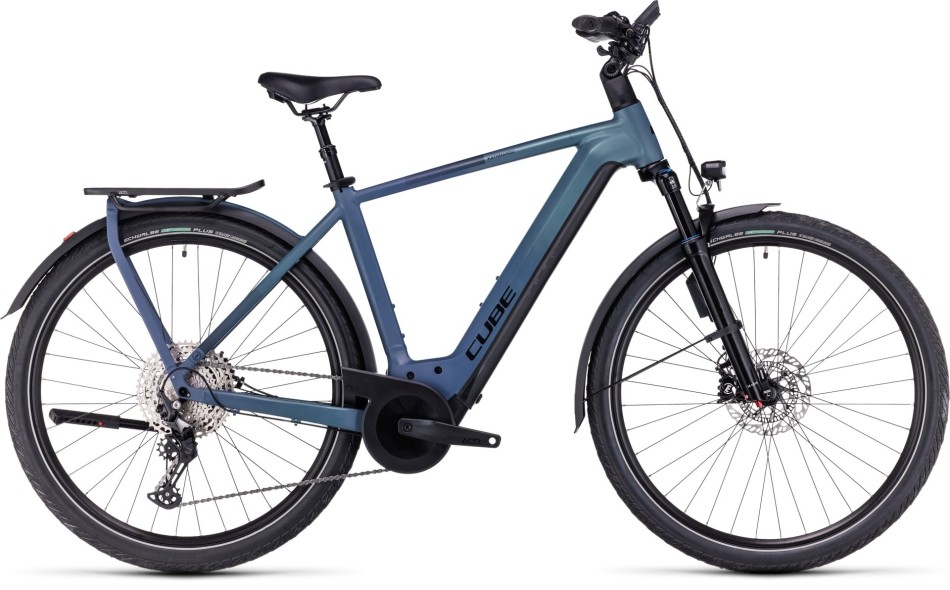

Cube Kathmandu Hybrid ABS 2023 eBike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Designed for comfort, versatility and durability, the Kathmandu’s frame – whether you choose the Men’s version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range.

Efficient Comfort Geometry works exactly the way you’d expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you’ll love – and it’s the perfect way to add accessories and carry whatever you need with you.

In the old days, many people only used the rear brake out of caution or fear. The new Bosch eBike ABS now lets you brake more safely and confidently with both brakes at the same time. It can prevent the front wheel from locking and thus help to avoid skidding.

You remain safely in the saddle even during sudden heavy braking – whether you are on firm asphalt or slippery gravel paths. Because every e-bike is different, there is no one-size-fits-all ABS. Instead, there’s the right ABS for your e-bike type, supporting your braking process in the best possible way.

Ushering in a new era of safe cycling, the Kathmandu Hybrid ABS 750 is the Bosch-powered hybrid that’s got your back – literally. Featuring Bosch’s second-generation anti-lock brake system, you can ride in all weathers assured that the sophisticated electronics and powerful Magura hydraulic disc brakes will always ensure you can stop quickly and safely.

Specification

Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Fork	SR Suntour Mobie 35 EQ Air, ABS, Tapered, 15×110mm, 100mm
Drive Unit	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery	Bosch PowerTube 750Wh Smart System (battery weight 4.3kg)
Remote	Bosch LED Remote
Display	Bosch Kiox 300
Charger	Bosch 4A Smart System (2.3h 50% – 6h 100%)
Brake System	Magura MT C ABS, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano Deore SL-M6100-IR, Direct Attach
Crankset	ACID E-Crank, 40T, 175mm (EE: 170mm)
Cassette	Shimano Deore CS-M6100, 10-51T
Chain	Shimano CN-M6100
Front Hub	Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub	Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims	CUBE EX23, 36H, Disc, Tubeless Ready
Tyres	Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Stem	CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar	CUBE Comfort Trail Bar, 700mm
Grips	ACID Travel Comfort
Seat Post	CUBE Suspension Seatpost HD, 30.9mm
Seatclamp	CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm)
Saddle	Natural Fit Sequence Comfort
Headset	M/Z: ACROS AZF-1035
Pedals	ACID PP Trekking
Front Light	CUBE Shiny 50 Lux, 12V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	ACID FM Pure Kickstand
Mudguards	ACID 65 Integrated Carrier 3.0
Bell	Ring Bell
Carrier	CUBE Integrated Carrier 3.0, ACID RILink Adapter Compatible
Weight	27.6 kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
50cm	163cm (5’4”)	173cm (5’7”)
54cm	173cm (5’8”)	180cm (5’11”)
58cm	180cm (5’11”)	188cm (6’2”)
62cm	188cm (6’2”)	196cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	50cm	54cm	58cm	62cm
Seat Tube	480	520	560	600
Top Tube Horizontal	634	635	640	650
Seat Tube Angle	74	74	74	74
Head Tube Angle	67.5	67.5	67.5	67.5
Chain Stays	460	460	460	460
Head Tube	124	124	143	164
Wheelsbase	1196	1197	1203	1215
BB-Height to Hub	75	75	75	75
Standover Height	797	823	856	889
Reach	451	452	451	455
Stack	644	644	661	681
Crank Length	170	170	170	170
Width Tires Maximum	56	56	56	56
Stem Length	65	65	80	80

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
