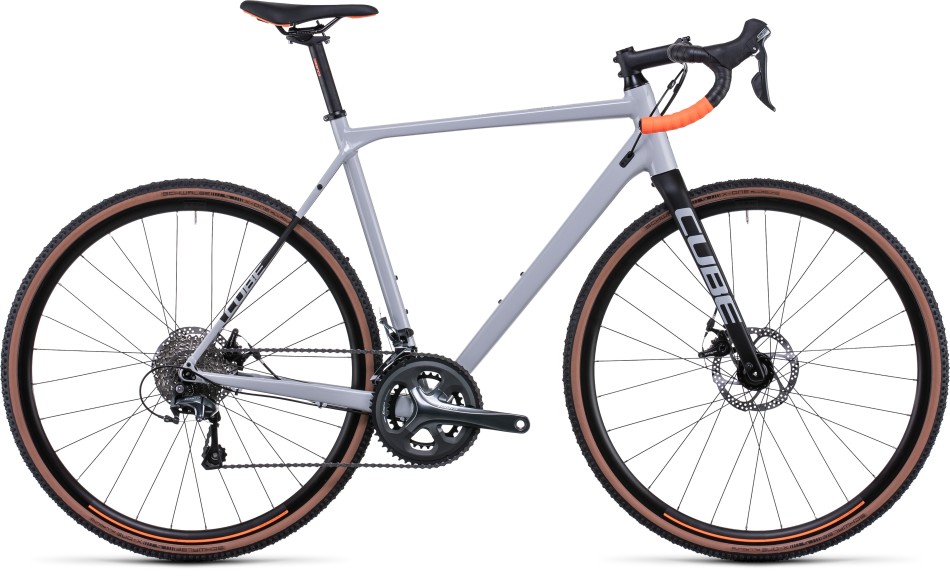

Cube Cross Race 2022 Grey/Orange Cyclocross Bike
Cyclocross racing may be an acquired taste, but the Cross Race is an ideal introduction to this fast, challenging and accessible sport.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
The Cross Race is your ticket to muddy fun and off-season fitness. With a light, tough aluminium frame and vibration-damping full carbon fork, it offers a blend of comfort and control in the rough and tumble of cyclocross racing.
Shimano’s Tiagra 2×10-speed transmission has the range you need at your fingertips, and there are powerful and easy-to-adjust mechanical disc brakes to ensure you’re always in control. A CUBE wheelset – built with care in-house right here in Germany – and Schwalbe tyres designed to cut through the mud complete the package.
Specification
| Frame | Aluminium Superlite, Double Butted, Advanced Mechanical Forming, Smooth Welded, Internal Cable Routing, Flat Mount Disc, 12×142mm, AXH |
| Fork | CUBE Cross Race Disc, Full Carbon, 1 1/8” – 1 1/4” Tapered, Flat Mount |
| Brake System | TRP Spyre MD-C610C, Flat Mount (160/160) |
| Rear Derailleur | Shimano Tiagra RD-4700GS, 10-Speed |
| Front Derailleur | Shimano Tiagra FD-4700, 31.8mm Clamp |
| Shift/ Brake Levers | Shimano Tiagra ST-4700 |
| Crankset | Shimano Tiagra FC-4700, 50×34T |
| Cassette | Shimano CS-HG500, 11-34T |
| Chain | KMC X10 |
| Wheelset | CUBE CX 2.1, 12×100mm / 12×142mm |
| Tyres | Schwalbe X-One Allround, Performance Kevlar, 33-622 |
| Stem | CUBE Performance Stem SL, 31.8mm |
| Handlebar | CUBE Compact Race Bar |
| Handlebar TAPE | ACID Bartape CX |
| Seat Post | CUBE Performance Post, 27.2mm |
| Seat Clamp | CUBE Screwlock, 31.8mm |
| Saddle | Natural Fit Venec Lite |
| Headset | VP Z-t, Top Zero-Stack 1 1/8” (OD 44mm), Bottom Integrated 1 1/4” |
| Weight | 10.3kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| 50cm | 158cm (5’2”) | 166cm (5’5”) |
| 53cm | 166cm (5’5”) | 174cm (5’8”) |
| 56cm | 174cm (5’8”) | 182cm (6’0”) |
| 58cm | 182cm (6’0”) | 190cm (6’2”) |
| 61cm | 190cm (6’2”) | 193cm (6’4”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | 50 | 53 | 56 | 58 | 61 |
| Seat Tube | 500 | 530 | 560 | 580 | 610 |
| Top Tube Horizontal | 520.5 | 536 | 554 | 570 | 588 |
| Seat Angle | 74.8 | 73.6 | 73.2 | 73 | 73 |
| Head Tube Angle | 70.3 | 70.8 | 72 | 72.5 | 73 |
| Chainstays | 430 | 430 | 430 | 430 | 430 |
| Head Tube | 115 | 140 | 160 | 180 | 205 |
| Wheelbase | 1015.4 | 1015.6 | 1018.2 | 1027.1 | 1039.9 |
| BB-Height to Hub | 68 | 68 | 68 | 68 | 68 |
| Reach | 376.6 | 372.6 | 379.3 | 386 | 396.8 |
| Stack | 529.8 | 555.3 | 578.8 | 599.7 | 625.5 |
| Length Seatpost | 350 | 350 | 350 | 350 | 350 |
| Diameter Seatpost | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Stem Angle | 6 | 6 | 6 | 6 | 6 |
| Crank Length | 170 | 170 | 172.5 | 175 | 175 |
| Max Tyre Diameter | 714 | 714 | 714 | 714 | 714 |
| Max Tyre Width | 33 | 33 | 33 | 33 | 33 |
| Stem Length | 90 | 90 | 100 | 110 | 120 |
| Handlebar Width | 400 | 420 | 440 | 440 | 460 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
