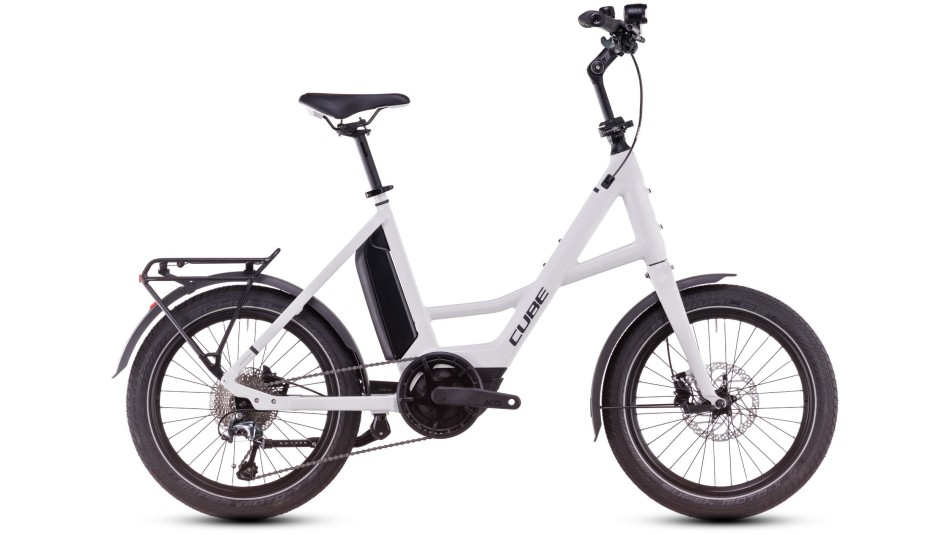

Cube Compact Hybrid 500 2025 Cotton/Reflex eBike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

At CUBE we know that the simplest solutions are often the best. The Compact Hybrid’s cross-braced down tube is elegant, stiff and strong. It also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle. There’s a long head tube for accurate, safe steering.

The smooth and powerful Bosch Performance drive unit lives in a custom housing at the bottom of the frame, with the battery tucked out of the way of both luggage and rider.

Getting from A to B doesn’t need to involve sitting in a tin box – and here’s the proof. The Compact Hybrid’s rugged, easy step-through design fits riders of all sizes and is easy to store and transport. Bosch’s powerful Performance drive unit takes the sweat out of everyday riding, while Shimano’s wide-ranging and reliable 10-speed Tiagra gears make light work of any route.

Powerful hydraulic disc brakes ensure you can stop safely in all weathers. And the lighting system, mudguards, luggage carrier and kickstand ensure that the Compact Hybrid will slot easily into your life. For work, for play, for any reason.

Specification

Frame	Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout
Fork	Aluminium Rigid Fork, 20”
Headset	Cube H835D3, Semi-Integrated, Sealed bearing
Stem	BySchulz Speedlifter Twist Pro SDS T15
Handlebar	CUBE Comfort Trail Bar, 680mm
Brake System	Shimano BR-MT200, Hydr. Disc Brake (180/160)
Motor	Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Battery	Bosch PowerPack 500
Charger	Bosch 2A
Display	Bosch Purion
Shifter	Shimano BR-MT200, Hydr. Disc Brake (180/160)
Rear Derailleur	Shimano Tiagra RD-4700GS, 10-Speed
Crankset	ACID Trekking Hybrid, 40T
Chainring Size	40T
Cassette	Shimano CS-HG500, 11-34T
Chain	KMC X10
Rims	CUBE EX30, 32H, Disc, Tubeless Ready
Front Hub	Shimano HB-QC300, QR, Centerlock
Rear Hub	Shimano FH-QC300-HM, QR, Centerlock
Tyres	Schwalbe Super Moto-X, Double Defense, 62-406
Pedals	ACID PP MTB
Saddle	Natural Fit Sequence
Seatpost	Newmen Evolution, 27.2mm
Seatpost Clamp	CUBE Varioclose, 31.8mm
Front Light	ACID Front Light PRO-E 60, 12V, DC
Rear Light	ACID Mudguard Rear Light PRO-E, 12V, DC
Kickstand	CUBE CenterStand
Mudguards	ACID 75, BB-Mount
Quoted Weight	22.8 kg
Max System Weight	142 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
50cm	163cm (5’4”)	173cm (5’7”)
54cm	173cm (5’8”)	180cm (5’11”)
58cm	180cm (5’11”)	188cm (6’2”)
62cm	188cm (6’2”)	196cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	One Size
Seat Tube	480
Top Tube Horizontal	580
Seat Angle	72°
Head Tube Angle	72°
Chainstays	445
Head Tube	260
Wheelbase	1080
BB Height	21
Protrusion Height – 80Mm	500
Reach	408
Stack	544
Length Seat Post	430
Diameter Seatpost	27.2
Crank Length	165
Diameter Tire Maximum	539
Width Tire Maximum	62
Handlebar Width	680

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
