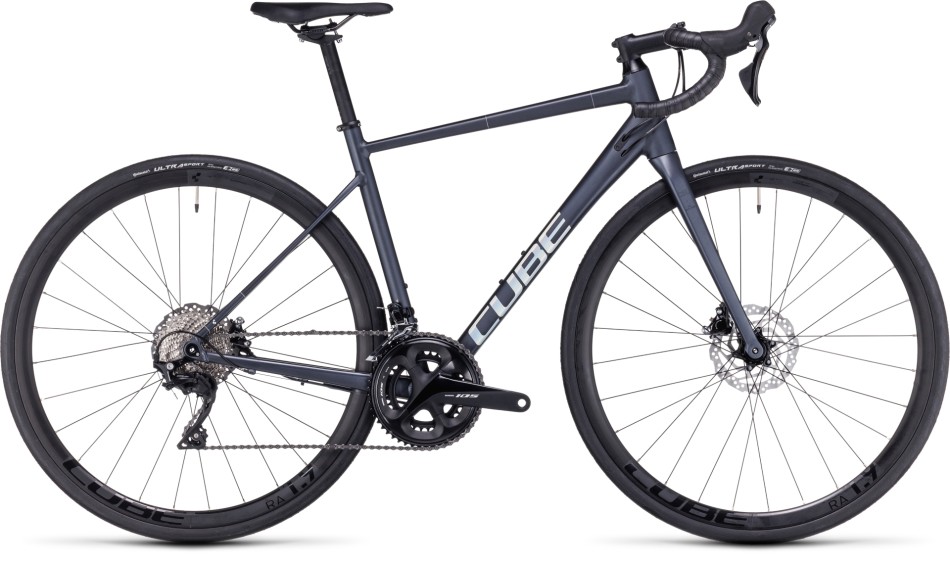

Cube Axial WS Race 2023 Metal/Rainbow Road Bike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

A fast bike should also be a comfortable bike, and the Axial WS’s double-butted aluminium, disc-compatible chassis combines both in a beautifully integrated package.

The tapered head tube and cross-ovalised down tube ensure accurate steering and rapid forward progress, while the carbon fork and slender seatstays help filter out road buzz and shock to keep you comfortable for the long haul. It’s the best of both worlds.

It’s all in the detail. The Axial WS Race’s legendarily reliable Shimano 105 gears give you the range and pace you need to cover the miles, but it’s the cube design details like the full carbon fork – which is lighter and more comfortable than the alternative – that really seal the deal.

Getting the best out of your riding, training or racing is important. It’s why we made the Axial WS Race. Designed to combine comfort and speed, the legendary reliability and performance of Shimano’s 105 components let you concentrate on the ride.

Slick, wide-ranging 2×11 gears tackle any route with ease, while powerful hydraulic disc brakes give you the confidence to push your limits, whatever the conditions. Ride fast, ride free.

Specification

Frame	Aluminium 6061 T6 Superlite, Road Comfort Geometry, Fender Option, 12×142mm
Fork	CUBE CSL Race Disc, Full Carbon, 1 1/8” – 1 1/4” Tapered, Flat Mount, 12×100mm
Brake System	Shimano 105 BR-R7070, Hydr. Disc Brake, Flat Mount (160/160)
Rear Derailleur	Shimano 105 RD-R7000-DGS, 11-Speed
Front Derailleur	Shimano 105 FD-R7000, 31.8mm Clamp
Shift/Brake Levers	Shimano 105 ST-R7025
Bottom Bracket	Shimano BB-RS500, 68mm BSA
Crankset	Shimano 105 FC-R7000, 50×34T
Cassette	Shimano 105 CS-HG700, 11-34T
Chain	Shimano CN-HG600-11
Handlebar	CUBE Compact Race Bar
Stem	CUBE Performance Stem SLX, 31.8mm
Grips	ACID Bartape RD
Headset	VP Z-t, Top Zero-Stack 1 1/8” (OD 44mm), Bottom Integrated 1 1/4”
Wheelset	CUBE RA 1.9 Aero Disc, 12×100mm / 12×142mm
Tyres	Conti Ultra Sport 3, 28-622
Seat Post	CUBE Performance Post, 27.2mm
Saddle	Cube Natural Fit Venec Lite WS
Pedals	N/A
Weight	9.6kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
47cm	150cm (4’11”)	158cm (5’2”)
50cm	158cm (5’2”)	166cm (5’5”)
53cm	166cm (5’5”)	174cm (5’8”)
56cm	174cm (5’8”)	182cm (6’0”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	47	50	53	56
Seat Tube	430	460	490	520
Top Tube Horizontal	510	517	537	560
Seat Angle	74.6	74.6	74	73.5
Head Tube Angle	70.6	71.5	72	72.5
Chainstays	415	415	415	415
Head Tube	120	130	152	182
Wheelbase	985.6	985.1	995.3	1008.7
BB-Height to Hub	74	74	74	74
Reach	365.3	369	376.2	384.7
Stack	525.2	537.7	561.7	591.2
Length Seatpost	350	350	350	350
Diameter Seatpost	27.2	27.2	27.2	27.2
Stem Angle	6	6	6	6
Crank Length	165	170	170	170
Max Tyre Diameter	690	690	690	690
Max Tyre Width	29.3	29.3	29.3	29.3
Stem Length	70	90	90	100
Handlebar Width	380	400	400	420

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
