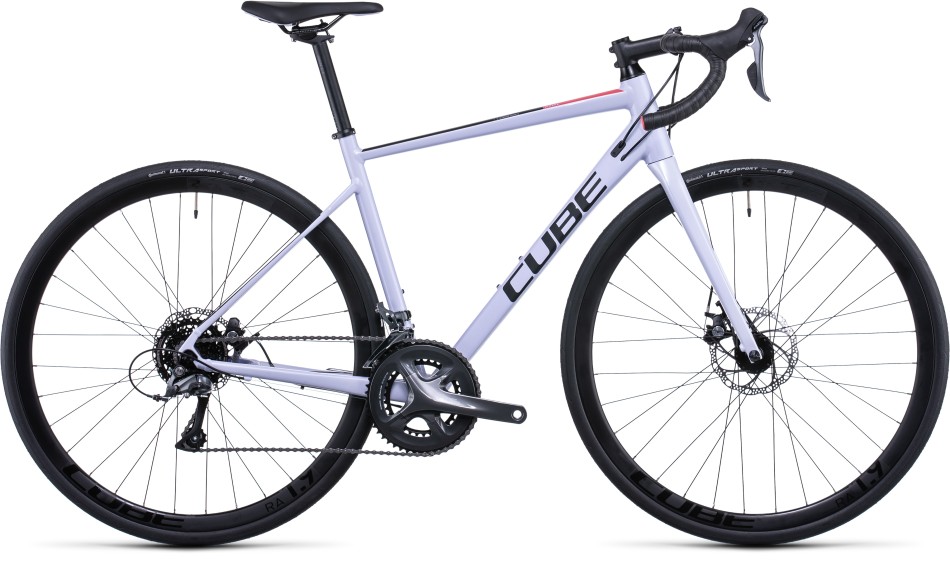

Cube Axial WS 2022 Violet/Coral Women's Road Bike
The Axial WS's blend of speed and comfort is an ideal introduction to the world of pedal-powered fitness and freedom.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Stereo Hybrid 140 HPC Race 750 2023 Grey/Chrome eMTB
Starting at: £3,099.99
-
Mondraker Crafty Carbon R 2024 eMTB
Starting at: £7,699.00
-
Marin Rift Zone 29 Carbon XR 2023 Trail Bike
Starting at: £2,899.99
Details
The Axial WS’s blend of speed and comfort is an ideal introduction to the world of pedal-powered fitness and freedom. New for 2022, its disc brake setup ensures you can slow and stop safely in any weather conditions.
Shimano’s 2×8 Claris gears offer a wide range, ease of use and legendary reliability. There’s a carbon fork for extra ride comfort, and we chose contact points like the saddle and handlebars carefully so that you can be sure every ride is comfortable from start to finish.
Throw in a pair of fast-rolling, grippy Continental Ultra Sport tyres and you’re all set.
Specification
| Frame | Aluminium 6061 T6 Superlite, Road Comfort Geometry, Fender Option, QR Dropout |
| Fork | CUBE CSL Race Disc, Full Carbon, 1 1/8” – 1 1/4” Tapered, Flat Mount, QR |
| Brake System | Tektro MD-C310C, Flat Mount (160/160) |
| Rear Derailleur | Shimano Claris RD-R2000-GS, 8-Speed |
| Front Derailleur | Shimano Claris FD-R2000-BM, 31.8mm |
| Shift/ Brake Levers | Shimano Claris ST-R2000 |
| Crankset | Shimano Claris FC-R2000, 50×34T, BB-RS500 |
| Cassette | Shimano CS-HG31, 11-34T |
| Chain | KMC Z7 |
| Front Hub | Shimano HB-TX506, QR, 6-Bolt |
| Rear Hub | Shimano HB-TX506, QR, 6-Bolt |
| Rims | CUBE RA 1.9 Disc |
| Tyres | Conti Ultra Sport 3, 28-622 |
| Stem | CUBE Performance Stem SL, 31.8mm |
| Handlebar | CUBE Compact Race Bar |
| Handlebar Tape | ACID Bartape RD |
| Seat Post | CUBE Performance Post, 27.2mm |
| Seatclamp | CUBE Screwlock, 31.8mm |
| Saddle | Natural Fit Venec Lite WS |
| Headset | VP Z-t, Top Zero-Stack 1 1/8” (OD 44mm), Bottom Integrated 1 1/4” |
| Weight | 10,5 kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| 47cm | 152cm (5’1”) | 160cm (5’3”) |
| 50cm | 160cm (5’3”) | 168cm (5’6”) |
| 53cm | 168cm (5’6”) | 173cm (5’8”) |
| 56cm | 173cm (5’8”) | 178cm (5’10”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | 47cm | 50cm | 53cm | 56cm |
| Seat Tube | 430 | 460 | 490 | 520 |
| Top Tube Horizontal | 510 | 517 | 537 | 560 |
| Seat Tube Angle | 74.6 | 74.6 | 74 | 73.5 |
| Head Tube Angle | 70.6 | 71.5 | 72 | 72.5 |
| Chain Stays | 415 | 415 | 415 | 415 |
| Head Tube | 120 | 130 | 152 | 182 |
| Wheelbase | 980 | 985 | 995 | 1009 |
| BB-Height to Hub | -74 | -74 | -74 | -74 |
| Standover Height | 700 | 723 | 750 | 780 |
| Reach | 365 | 369 | 376 | 385 |
| Stack | 525 | 538 | 561 | 591 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Video
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
