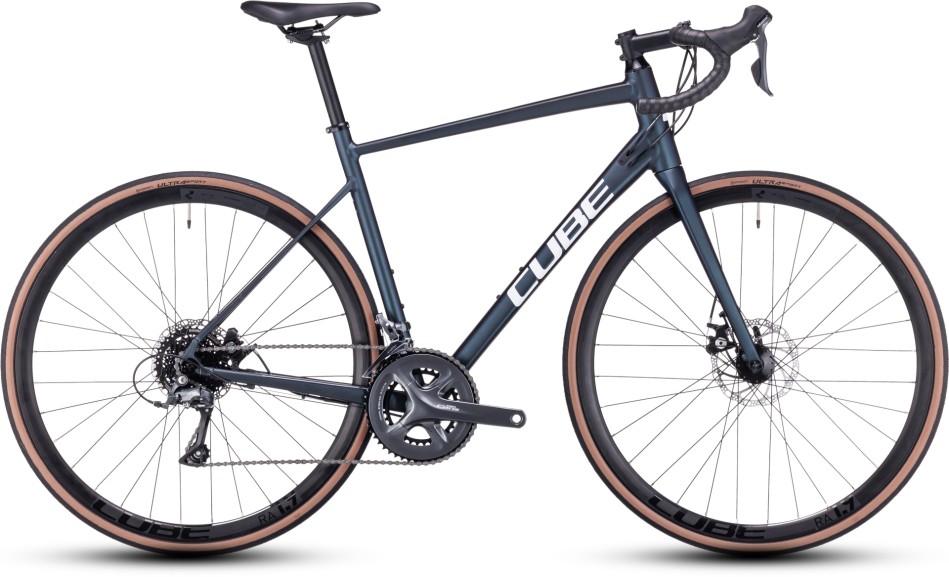

Cube Attain 2024 Blue/White Road Bike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

You shouldn’t have to suffer for your sport. That’s why we built the Attain’s 6061 disc brake-ready aluminium chassis with both comfort and performance in mind. Double-butted tubes save weight wherever possible, without sacrificing strength.

Smooth Welding gives tube joints a premium, almost organic appearance. The tapered steerer ensures pinpoint precision accuracy. And slender seatstays and a full carbon fork help reduce road shock and vibration for significantly improved rider comfort.

A fast bike can also be a comfortable bike, and here’s the proof. The Attain’s full carbon fork and elegant frame combine easy handling out on the road with the comfort you need to make the most of long days in the saddle. The open road is calling – how will you answer?

Specification

Frame	Aluminium 6061 T6 Superlite, Road Comfort Geometry, Fender Option
Fork	CUBE CSL Race, Full Carbon, 1 1/8” – 1 1/4” Tapered, Fender Mount Option
Brake System	Tektro MD-C510, Flat Mount (160/160)
Rear Derailleur	Shimano Claris RD-R2000-GS, 8-Speed
Front Derailleur	Shimano Claris FD-R2000-BM, 31.8mm
Shift/Brake Levers	Shimano Claris ST-R2000
Crankset	Shimano Claris FC-R2000, 50×34T, BB-RS500
Cassette	Shimano CS-HG31, 11-34T
Chain	KMC Z8.3
Handlebar	CUBE Compact Race Bar
Stem	CUBE Performance Stem SLX, 31.8mm
Grips	ACID Bartape RD
Headset	VP Z-t, Top Zero-Stack 1 1/8” (OD 44mm), Bottom Integrated 1 1/4”
Front Hub	Shimano HB-TX506, QR, 6-Bolt
Rear Hub	Shimano HB-TX506, QR, 6-Bolt
Rims	CUBE RA 1.9 Disc
Tyres	Conti Ultra Sport 3, 28-622
Seat Post	CUBE Performance Post, 27.2mm
Saddle	Natural Fit Venec Lite
Pedals	N/A
Weight	10.5kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
47cm	150cm (4’11”)	158cm (5’2”)
50cm	158cm (5’2”)	166cm (5’5”)
53cm	166cm (5’5”)	174cm (5’8”)
56cm	174cm (5’8”)	182cm (6’0”)
58cm	182cm (6’0”)	190cm (6’2”)
60cm	190cm (6’2”)	193cm (6’4”)
62cm	193cm (6’3”)	196cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	47	50	53	56	58	60	62
Seat Tube	430	460	490	520	540	560	580
Top Tube Horizontal	510	517	537	560	575	590	595
Seat Angle	74.6	74.6	74	73.5	73	72.5	72.5
Head Tube Angle	70.6	71.5	72	72.5	72.5	72.5	72.5
Chainstays	415	415	415	415	415	417	417
Head Tube	120	130	152	182	202	222	242
Wheelbase	985.6	985.1	995.3	1008.7	1018.3	1029.5	1034.4
BB-Height to Hub	74	74	74	74	74	74	74
Reach	365.3	369	376.2	384.7	388.6	390.2	390.6
Stack	525.2	537.7	561.7	591.2	610.2	629.3	648.4
Length Seatpost	350	350	350	350	350	350	350
Diameter Seatpost	27.2	27.2	27.2	27.2	27.2	27.2	27.2
Angle Stem	6	6	6	6	6	6	6
Crank Length	165	170	170	170	175	175	175
Max Tyre Diameter	690	690	690	690	690	690	690
Max Tyre Width	28	28	28	28	28	28	28
Stem Length	70	90	90	100	100	100	110
Handlebar Width	380	400	420	420	440	440	460

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
