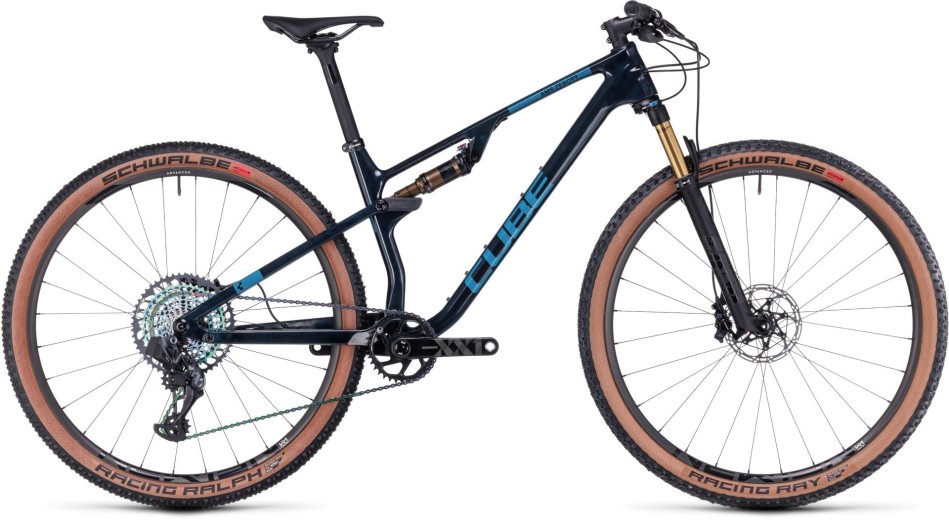

Cube AMS Zero99 C:68X SLT 2023 Liquid Blue/Blue Cross Country Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Fast is light, fast is comfortable, and fast is efficient. The AMS ZERO99 C:68× 29’s frame is crafted from our premium carbon and weighs in at a stunning 1600g, approximately. But it’s not just about low weight. Short chainstays with plenty of clearance for 2.25in tyres tuck the rear wheel in under the rider for efficient power transfer.

Slender tubes help keep the ride comfortable, rather than harsh. There are angle adjustment inserts to allow fine-tuning of the head angle. And with 100mm of travel front and rear and a geometry that’s tuned for agility and pace, you’ve got everything you need to get to the head of the pack.

Pedigree counts in racing. That’s why, with the AMS ZERO99 C:68X SLT 29, we went for Fox Factory suspension components, to provide 100mm of ground-hugging travel front and rear. Sram’s XX1 Eagle AXS 1×12 serves up wireless shifting with unmatched precision, so you’ll never miss a gear again.

Sram Level Ultimate Rainbow hydraulic disc brakes help keep your speed in check, and ultra-light Schwalbe Aerothan inner tubes ensure every ounce of your effort is translated into forward progress. Newmen carbon components – including a carbon wheelset – provide the finishing touches. The rest is up to you.

Specification

Frame	C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Wheel Size	29”
Fork	Fox 32 SC Float Factory FIT4, 2-Position Remote, Tapered, 15×110mm, 100mm, Kashima Coated
Rear Shock	Fox Float DPS Factory Remote, 190×40mm, 2-Position Remote, Kashima Coated
Shock Hardware	Front: 26×8mm, Rear: 30×8mm
Brake System	Sram Level Ultimate Rainbow, Hydr. Disc Brake (160/160)
Rear Derailleur	Sram XX1 Eagle AXS™, 12-Speed
Shifter	Sram Eagle AXS™ Controller
Bottom Bracket	Sram DUB MTB, 92mm Pressfit
Crankset	Shimano XT CS-M8100, 10-51T
Cassette	Sram XG-1299 Eagle™ Rainbow, 10-52T
Chain	Sram PC-XX1 Eagle™ Rainbow
Handlebar	Newmen Advanced 318.0, Carbon, 740mm
Stem	Newmen Evolution 318.4, 31.8mm
Grips	ACID React Pro
Headset	ACROS Integrated, Top 1 1/8”, Bottom 1 1/2”, Fiber Inserts for Angle Adjustment
Wheelset	Newmen Advanced SL X.A.25 Carbon, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tyre	Schwalbe Racing Ray, Super Race, Addix Speedgrip, Kevlar, 2.1
Rear Tyre	Schwalbe Racing Ray, Super Race, Addix Speedgrip, Kevlar, 2.1
Seat Post	Newmen Advanced, Carbon, 30.9mm
Saddle	Natural Fit Nuance SLT Carbon
Pedals	N/A
Weight	9.7kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S 29	M 29	L 29	XL 29
Seat Tube	370	420	470	520
Top Tube Horizontal	569 / 570	594 / 595	619 / 620	643 / 645
Seat Angle	74.7° / 74.5°	74.7° / 74.5°	74.7° / 74.5°	74.7° / 74.5°
Head Tube Angle	67.4° / 68°	67.4° / 68°	67.4° / 68°	67.4° / 68°
Chainstays	437	437	437	437
Head tube	100	110	120	135
Wheelbase	1130 / 1123	1156 / 1149	1181 / 1174	1208 / 1201
BB-Height to Hub	43 / 42	43 / 42	43 / 42	43 / 42
Reach	415 / 414	437 / 436	459 / 458	479 / 478
Stack	583 / 585	593 / 594	602 / 603	616 / 617
Seatpost Length	400	400	400	400
Seatpost Diameter	30.9	30.9	30.9	30.9
Stem Angle	6°	6°	6°	6°
Crank Length	170	175	175	175
Stem Length	70	80	90	100
Handlebar Width	740	740	740	740
Rear Suspension Travel	100	100	100	100

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
