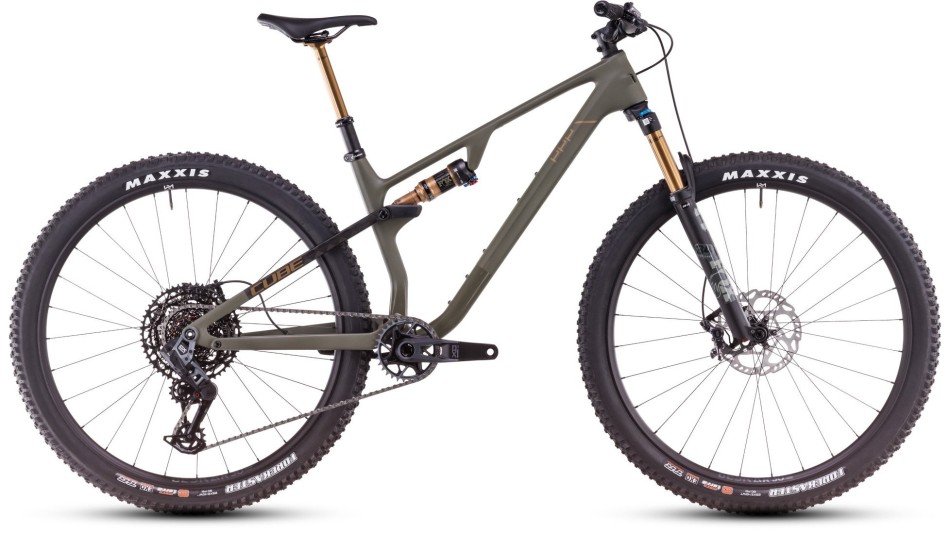

Cube AMS One11 C:68X TM 2025 Olive/Gold Cross County Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1,600g.

Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there are even Acros angle adjustment inserts to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.

There’s no better way to straighten corners, flatten roots and rocks and come out on top. The AMS ONE11 C:68X TM 29’s refined carbon chassis is just the start. With 120mm of Fox 34 Float Factory SC Grip SL travel up front and around 110mm of Fox Float Factory travel at the rear, you’re in full control.

Newmen Beskar 30 wheels wrapped in Maxxis Forekaster 2.4in tyres – with superlight Schwalbe Aerothan tubes – keep the rubber side down. Sram’s GX Eagle Transmission 1×12 gears deliver the goods via a Sram XO crank. And Shimano XT hydraulic discs bring it all to a stop – but only when you’re done shredding.

Specification

Frame	C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Fork	Fox 34 SC Float Factory GRIP SL, Open/Medium/Firm Mode, Tapered, 15×110mm, 120mm, Kashima Coated
Rear Shock	Fox Float Factory, 190×42.5mm, Open/Firm Mode, Kashima Coated
Shock Hardware	Front: 26×8mm, Rear: 30×8mm
Headset	ACROS Integrated, Top 1 1/8”, Bottom 1 1/2”, Fiber Inserts for Angle Adjustment
Stem	Newmen Evolution 318.4, 31.8mm
Handlebar	Newmen Evolution SL 318.25, 760mm
Brake System	Shimano XT BR-M8120/BR-M8100, Hydr. Disc Brake (180/180)
Shifters	Shimano XT BR-M8120/BR-M8100, Hydr. Disc Brake (180/180)
Rear Derailleur	Sram GX Eagle AXS™ Transmission, 12-Speed
Bottom Bracket	Sram DUB MTB Wide, 92mm Pressfit
Crankset	Sram X0 Eagle™ Transmission, 32T
Chainring Size	32T
Cassette	Sram XS-1270, 10-52T
Chain	Sram GX Eagle™ Transmission
Wheelset	Newmen Beskar 30 light/base, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Tyres	Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.4 WT
Saddle	ACID Nuance Lite
Seatpost	Fox Transfer Factory 30.9mm, Kashima Coated
Seatpost Clamp	CUBE Screwlock, 34.9mm
Quoted Weight	12.4 kg
Max System Weight	115 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Slack/Moderate	S	M	L	XL
Seat Tube	370	420	470	520
Top Tube Horizontal	573 / 575	598 / 600	623 / 625	648 / 650
Seat Angle	73.3° / 73.1°	73.4° / 73.2°	73.4° / 73.2°	73.4° / 73.2°
Head Tube Angle	66° / 66.6°	66.1° / 66.7°	66.1° / 66.7°	66.1° / 66.7°
Chainstays	445	445	445	445
Head Tube	100	110	120	135
Wheelbase	1141 / 1134	1167 / 1160	1193 / 1186	1219 / 1212
BB Height	1.064516129	1.03125	1.03125	1.0625
Reach	401 / 400	423 / 422	445 / 444	466 / 465
Stack	592 / 594	601 / 603	611 / 613	625 / 627
Seatpost Length	403	460	460	460
Seatpost Diameter	30.9	30.9	30.9	30.9
Angle Stem	6°	6°	6°	6°
Crank Length	170	175	175	175
Max Tyre Diameter	758	758	758	758
Max Tyre Width	64	64	64	64
Stem Length	50	60	60	70
Handlebar Width	760	760	760	760
Seatpost Drop	120	150	150	150
Rear Suspension Travel	110	110	110	110

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 3
Intended Use	Sport and competition riding with moderate technical demands of the trails
Intended Terrain	Paved surfaces, unpaved roads, gravel paths, rough paths, uneven unpaved roads, difficult terrain and unmade paths, and for which technical skill is required. Jumps and drops should be limited to 60 cm
Recommended riding skills	Technical skills and practice required
Attention	Please note that when using rear stands, mudguards, pannier racks and bicycle trailers, if permitted, the category of your bike is limited to category 2

Additional Information

Manufacturer	Cube
RRP	No
