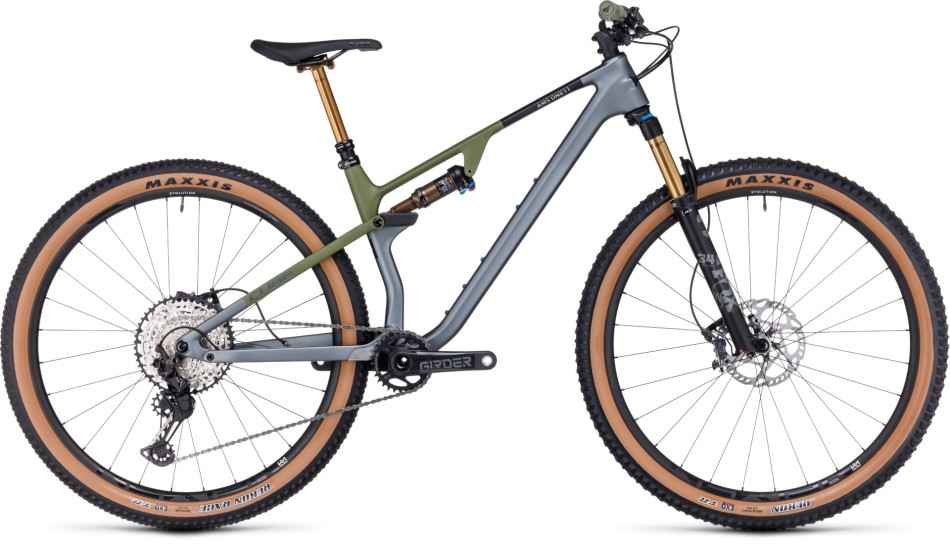

Cube AMS One11 C:68X TM 2023 Grey/Olive Down Country Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1600g.

Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there’s even an Acros angle adjustment insert to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.

There’s no better way to straighten corners, flatten roots and rocks and come out on top. The AMS ONE11 C:68X TM 29’s refined carbon chassis is just the start. With 120mm of Fox 34 Float SC Factory travel up front and around 110mm of Fox Float DPS Factory travel at the rear, you’re in full control.

Newmen Evolution wheels wrapped in Maxxis Rekon 2.4in and Rekon Race 2.35in Kevlar tyres keep the rubber side down. Shimano’s XT 1×12 transmission delivers the goods via a super lightweight, stiff Praxis Girder Carbon crank. And Shimano XT hydraulic discs bring it all to a stop – but only when you’re done shredding.

Specification

Frame	C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Wheel Size	29”
Fork	Fox 34 SC Float Factory FIT4, Open(Adjustable)/Medium/Firm Mode, Tapered, 15×110mm, 120mm, Kashima Coated
Rear Shock	Fox Float DPS Factory, 190×42.5mm, Open(Adjustable)/Medium/Firm Mode, Kashima Coated
Shock Hardware	Front: 26×8mm, Rear: 30×8mm
Brake System	Shimano XT BR-M8120/BR-M8100, Hydr. Disc Brake (180/180)
Rear Derailleur	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifter	Shimano XT SL-M8100-IR, Direct Attach
Bottom Bracket	Praxis PF92, sealed Enduro™ Bearings
Crankset	Praxis Girder Carbon, Boost, 30T
Cassette	Shimano SLX CS-M7100, 10-51T
Chain	Shimano CN-M6100
Handlebar	Newmen Evolution SL 318.25, 760mm
Stem	Newmen Evolution 318.4, 31.8mm
Grips	SDG Thrice
Headset	ACROS Integrated, Top 1 1/8”, Bottom 1 1/2”, Fiber Inserts for Angle Adjustment
Wheelset	Newmen Evolution SL A.30, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tyre	Maxxis Rekon, EXO, Tubeless Ready, 2.4
Rear Tyre	Maxxis Rekon Race, EXO, Tubeless Ready, 2.35
Seat Post	Fox Transfer Factory 30.9mm, Kashima Coated
Saddle	SDG Bel Air V3 Lux Alloy
Pedals	N/A
Weight	11.7kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S 29	M 29	L 29	XL 29
Seat Tube	370	420	470	520
Top Tube Horizontal	573 / 575	598 / 600	623 / 625	648 / 650
Seat Angle	73.3° / 73.1°	73.4° / 73.2°	73.4° / 73.2°	73.4° / 73.2°
Head Tube Angle	66° / 66.6°	66.1° / 66.7°	66.1° / 66.7°	66.1° / 66.7°
Chainstays	445	445	445	445
Head Tube	100	110	120	135
Wheelbase	1141 / 1134	1167 / 1160	1193 / 1186	1219 / 1212
BB-Height to Hub	33 / 31	33 / 32	33 / 32	34 / 32
Reach	401 / 400	423 / 422	445 / 444	466 / 465
Stack	592 / 594	601 / 603	611 / 613	625 / 627
Seatpost Length	420	480	480	480
Seatpost Diameter	30.9	30.9	30.9	30.9
Stem Angle	6°	6°	6°	6°
Crank Length	170	175	175	175
Stem Length	50	60	60	70
Handlebar Width	760	760	760	760
Seatpost Drop	125	150	150	150
Rear Suspension Travel	110	110	110	110

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
