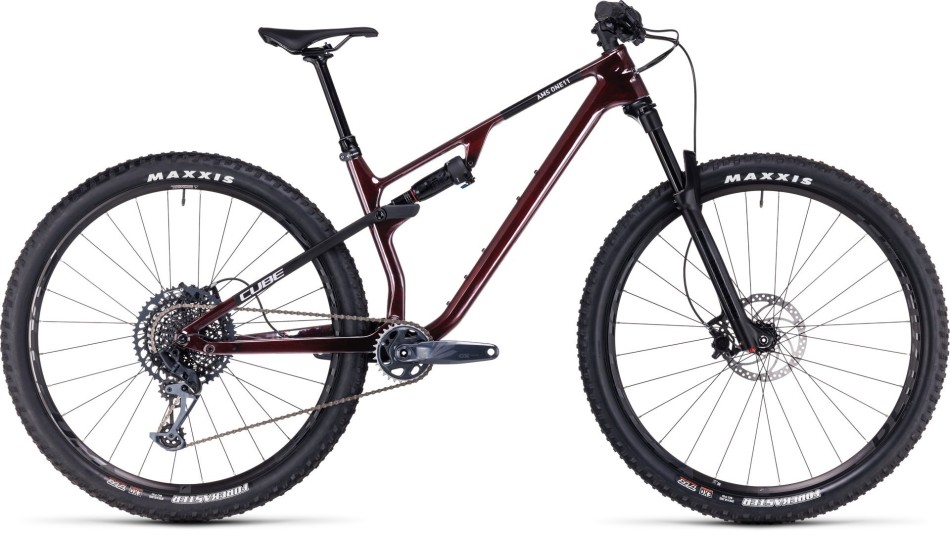

Cube AMS One11 C:68X Pro 2023 Liquid Red/Black Down Country Bike

Available with Cube in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1600g.

Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there’s even an Acros angle adjustment insert to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.

The trail won’t know what hit it. The AMS ONE11 C:68X Pro 29’s super-light carbon chassis with around 110mm of rear and 120mm of front wheel travel puts you firmly in control. A RockShox Recon Gold fork pairs with a Deluxe Select+ shock to take care of the bumps.

Sram’s wide-ranging and slick-shifting GX Eagle 1×12 gears get your power to the trail via Maxxis Forekaster 2.35in tyres on Fulcrum Red77 wheels. And Magura MT Thirty hydraulic disc brakes keep your speed in check – because power is nothing without control, right?

Specification

Frame	C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
Wheel Size	29”
Fork	RockShox Recon Gold RL Air, Tapered, 15×110mm, 120mm
Rear Shock	RockShox Deluxe Select+, 190×42.5mm
Shock Hardware	Front: 26×8mm, Rear: 30×8mm
Brake System	Magura MT Thirty, Front/Rear 2-Piston, Hydr. Disc Brake (180/180)
Rear Derailleur	Sram GX Eagle™, 12-Speed
Shifter	Sram GX Eagle™ Trigger
Bottom Bracket	Sram DUB MTB, 92mm Pressfit
Crankset	Sram GX Eagle™ Boost DUB, 30T
Cassette	Sram XG-1275 Eagle™, 10-52T
Chain	Sram SX Eagle™
Handlebar	Newmen Evolution SL 318.25, 760mm
Stem	Newmen Evolution 318.4, 31.8mm
Grips	SDG Thrice
Headset	ACROS Integrated, Top 1 1/8”, Bottom 1 1/2”, Fiber Inserts for Angle Adjustment
Wheelset	Fulcrum Red 77, 28/28 Spokes, 15×110mm/12×148mm, Tubeless Ready
Front Tyre	Maxxis Forekaster, EXO, Tubeless Ready, 2.35
Rear Tyre	Maxxis Forekaster, EXO, Tubeless Ready, 2.35
Seat Post	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Saddle	Natural Fit Nuance
Pedals	N/A
Weight	12.5kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	S 29	M 29	L 29	XL 29
Seat Tube	370	420	470	520
Top Tube Horizontal	573 / 575	598 / 600	623 / 625	648 / 650
Seat Angle	73.3° / 73.1°	73.4° / 73.2°	73.4° / 73.2°	73.4° / 73.2°
Head Tube Angle	66° / 66.6°	66.1° / 66.7°	66.1° / 66.7°	66.1° / 66.7°
Chainstays	445	445	445	445
Head Tube	100	110	120	135
Wheelbase	1141 / 1134	1167 / 1160	1193 / 1186	1219 / 1212
BB-Height to Hub	33 / 31	33 / 32	33 / 32	34 / 32
Reach	401 / 400	423 / 422	445 / 444	466 / 465
Stack	592 / 594	601 / 603	611 / 613	625 / 627
Seatpost Length	420	480	480	480
Seatpost Diameter	30.9	30.9	30.9	30.9
Stem Angle	6°	6°	6°	6°
Crank Length	170	175	175	175
Stem Length	50	60	60	70
Handlebar Width	760	760	760	760
Seatpost Drop	125	150	150	150
Rear Suspension Travel	110	110	110	110

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
