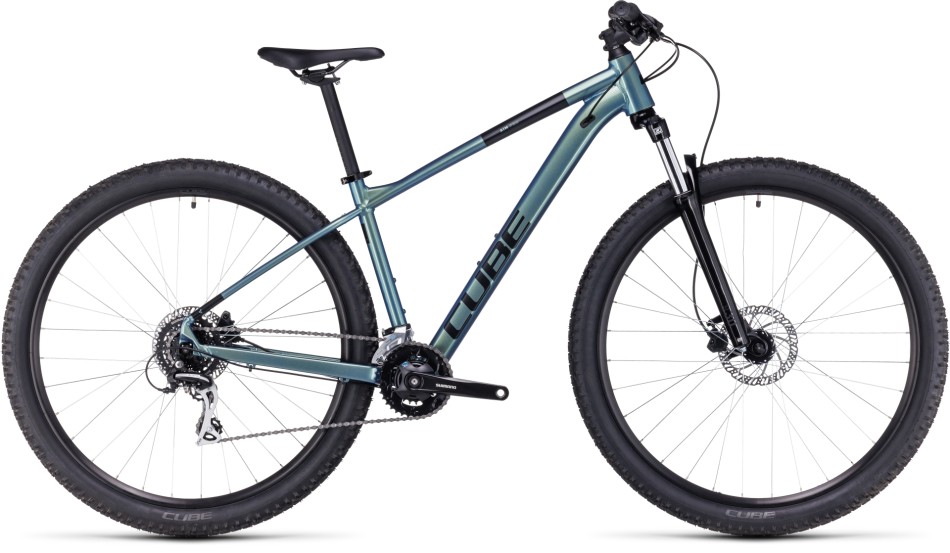

Cube Aim Pro 2023 Shift/Black Mountain Bike
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.
Beauty is more than skin deep: the Aim’s sleek looks are thanks to its Smooth Welded head tube and seat tube junctions.
It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
Updated geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there’ll be an Aim that fits perfectly.
Where d’you want to go today? With the Aim Pro’s comfortable suspension fork, grippy tyres and strong hydraulic disc brakes, the choice is yours. Take the road less travelled, and see where it leads you…
Specification
Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
Wheel Size | 27.5” X Small, Small – 29” Medium, Large, X Large, XX Large |
Fork | SR Suntour XCT Disc, 100mm |
Brake System | Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160) |
Rear Derailleur | Shimano RD-M3020, 8-Speed |
Front Derailleur | Shimano FD-M315, Top Swing, 31.8mm Clamp |
Shifters | Shimano SL-M315, Rapidfire-Plus |
Bottom Bracket | Feimin FP-B902N, 73mm BSA |
Crankset | Shimano FC-M315, 36×22T, 170mm |
Cassette | Shimano CS-HG31, 11-34T |
Chain | KMC Z8.3 |
Handlebar | CUBE Rise Trail Bar, 680mm |
Stem | CUBE Performance Stem, 31.8mm |
Grips | ACID React |
Headset | CUBE FPH863, Semi-Integrated |
Front Hub | CUBE Alloy Light, QR, 6-Bolt |
Rear Hub | CUBE Alloy Light, QR, 6-Bolt |
Rims | CUBE ZX20, 32H, Disc |
Tyres | CUBE IMPAC Smartpac, 2.25 |
Seat Post | CUBE Performance Post, 27.2mm |
Saddle | Natural Fit Venec Lite |
Pedals | CUBE PP MTB |
Weight | 14.7kg |
Specifications are subject to change without notice
Size Guide
Frame Size | Minimum Height | Maximum Height |
X Small | 155cm (5’0”) | 163cm (5’3”) |
Small | 163cm (5’3”) | 171cm (5’6”) |
Medium | 171cm (5’6”) | 179cm (5’9”) |
Large | 179cm (5’9”) | 187cm (6’1”) |
X Large | 187cm (6’1”) | 195cm (6’4”) |
XX Large | 195cm (6’4”) | 203cm (6’7”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
Frame Size | XS 27.5” | S 27.5” | M 29” | L 29” | XL 29” | XXL 29” |
Seat Tube | 340 | 370 | 420 | 470 | 515 | 560 |
Top Tube Horizontal | 555 | 575 | 595 | 615 | 635 | 655 |
Seat Angle | 74 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
Head Tube Angle | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
Chainstays | 427 | 427 | 450 | 450 | 450 | 450 |
Head Tube | 108.2 | 111 | 111 | 121.8 | 141.8 | 156.8 |
Wheelbase | 1067.5 | 1082.1 | 1125.4 | 1146.4 | 1168.2 | 1189.6 |
BB-Height to Hub | 51.5 | 51.5 | 65 | 65 | 65 | 65 |
Reach | 384.4 | 398 | 409.2 | 426.2 | 440.7 | 456.6 |
Stack | 595 | 597.6 | 627.3 | 637.4 | 656 | 669.9 |
Seat Post Length | 350 | 350 | 400 | 400 | 400 | 400 |
Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
Stem Angle | 6 | 6 | 6 | 6 | 6 | 6 |
Crank Length | 170 | 170 | 170 | 170 | 170 | 170 |
Max Tyre Diameter | 708 | 708 | 747 | 747 | 747 | 747 |
Stem Length | 45 | 45 | 60 | 60 | 75 | 75 |
Handlebar Width | 680 | 680 | 680 | 680 | 680 | 680 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Manufacturer | Cube |
---|---|
RRP | N/A |
