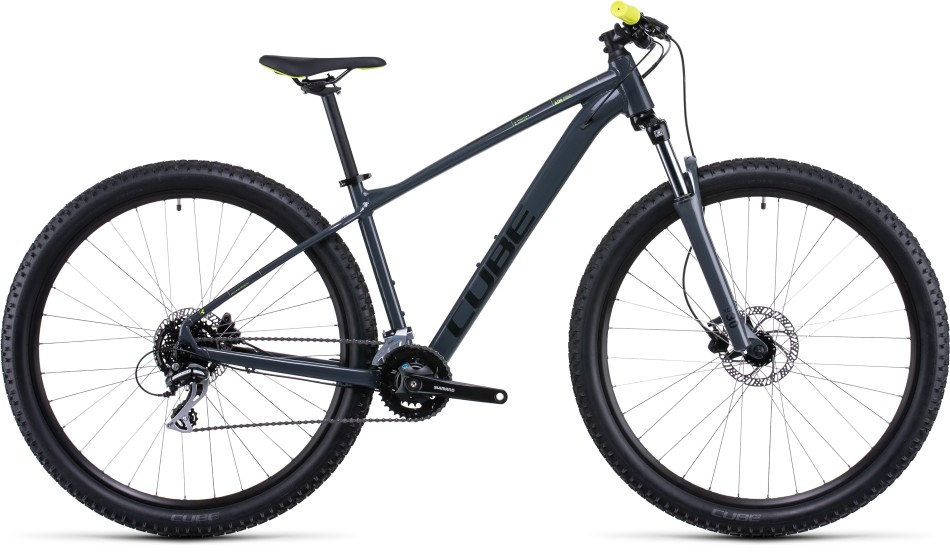

Cube Aim Pro 2022 Grey/Yellow Mountain Bike
If you've got an off-road itch that needs scratching, the new Aim Pro could be the relief you've been looking for.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
If you’ve got an off-road itch that needs scratching, the new Aim Pro could be the relief you’ve been looking for. With its grippy 2.25in tyres and 100mm of suspension fork travel, courtesy of Suntour, it’s got what you need to keep riding where the road ends.
Wide-ranging Shimano 2×8 gears will help you see off the steepest climbs, and strong hydraulic disc brakes put you in control on the descents. SizeSplit makes it easy to find the perfect fit, and the new tapered head tube frame is even ready to accept a dropper post upgrade.
Specification
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | SR Suntour XCT, 100mm |
| Brake System | Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160) |
| Rear Derailleur | Shimano RD-M360, 8-Speed |
| Front Derailleur | Shimano FD-M315, Top Swing, 31.8mm Clamp |
| Shifters | Shimano SL-M315, Rapidfire-Plus |
| Crankset | Shimano FC-M315, 36×22T |
| Cassette | Shimano CS-HG31, 11-34T |
| Chain | KMC Z8.3 |
| Front Hub | CUBE Alloy Light, QR, 6-Bolt |
| Rear Hub | CUBE Alloy Light, QR, 6-Bolt |
| Rims | CUBE ZX20, 32H, Disc |
| Tyres | CUBE IMPAC Smartpac, 2.25 |
| Stem | CUBE Performance Stem Pro, 31.8mm |
| Handlebar | CUBE Rise Trail Bar, 680mm |
| Grips | ACID React |
| Seat Post | CUBE Performance Post, 27.2mm |
| Seat Clamp | CUBE Varioclose, 31.8mm |
| Saddle | Natural Fit Venec Lite |
| Headset | CUBE FPH868, Top 1 1/8”, Bottom 1 1/2”, Semi-Integrated |
| Pedals | CUBE PP MTB |
| Weight | 14.6kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| X Small | 155cm (5’0”) | 163cm (5’3”) |
| Small | 163cm (5’3”) | 171cm (5’6”) |
| Medium | 171cm (5’6”) | 179cm (5’9”) |
| Large | 179cm (5’9”) | 187cm (6’1”) |
| X Large | 187cm (6’1”) | 195cm (6’4”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | XS | S | M | L | XL |
| Seat Tube | 340 | 370 | 420 | 470 | 515 |
| Top Tube Horizontal | 555 | 575 | 595 | 615 | 635 |
| Seat Angle | 74 | 73.5 | 73.5 | 73.5 | 73.5 |
| Head Tube Angle | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
| Chainstays | 441 | 441 | 461 | 461 | 461 |
| Head Tube | 107 | 109.8 | 109.8 | 120.6 | 140.6 |
| Wheelbase | 1067.5 | 1096.2 | 1136.5 | 1157.5 | 1174.6 |
| BB-Height to Hub | 51.5 | 51.5 | 65 | 65 | 65 |
| Reach | 384.4 | 398 | 409.2 | 426.2 | 440.7 |
| Stack | 595 | 597.6 | 627.3 | 637.4 | 656 |
| Length Seat Post | 350 | 350 | 400 | 400 | 400 |
| Diameter Seat Post | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Angle Stem | 6 | 6 | 6 | 6 | 6 |
| Crank Length | 170 | 170 | 170 | 170 | 170 |
| Stem Length | 50 | 50 | 60 | 60 | 70 |
| Handlebar Width | 680 | 680 | 680 | 680 | 680 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
