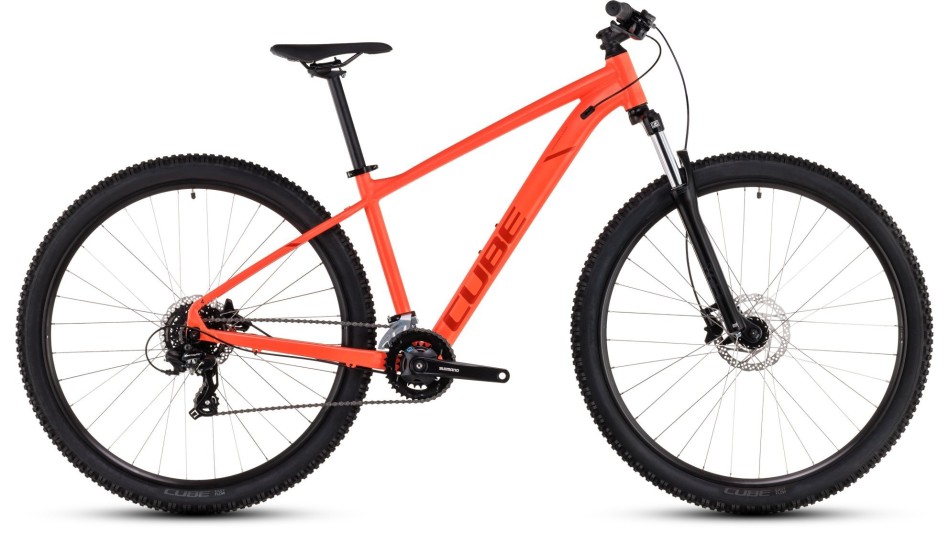

Cube Aim One 2025 Tropical/Fire Mountain Bike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

Beauty is more than skin deep: the Aim’s sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.

There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.

Carefully thought out geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there’ll be an Aim that fits perfectly.

At CUBE we believe the bike should just get out of the way and let you enjoy the ride. That’s why, with the versatile Aim ONE, we started with a 100mm suspension fork and wide, grippy tyres – so you’re always comfortable and in control.

Shimano 2×8-speed gears give you the range you need at the push of a button, and powerful disc brakes bring you safely to a stop no matter what the weather’s up to. And Size Split, with its huge range of sizes, means every rider can find their perfect Aim.

Specification

Frame	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Fork	SR Suntour XCE, 100mm
Headset	CUBE FPH863, Semi-Integrated
Stem	CUBE Performance Stem, 31.8mm
Handlebar	CUBE Rise Trail Bar, 680mm
Brake System	Clarks Clout 1, Hydr. Disc Brake PM/PM (160/160)
Shifters	Clarks Clout 1, Hydr. Disc Brake PM/PM (160/160)
Rear Derailleur	Shimano RD-TX800, 8-Speed
Front Derailleur	Shimano FD-M315, Top Swing, 31.8mm Clamp
Bottom Bracket	Thun Paso-ML, 73mm BSA
Crankset	Shimano FC-M315, 36×22T, 170mm
Chainring Size	36×22T
Cassette	Shimano CS-HG200, 12-32T
Chain	KMC Z8.3
Rims	CUBE EX25, 32H, Disc
Front Hub	CUBE Alloy Light, QR, 6-Bolt
Rear Hub	CUBE Alloy Light, QR, 6-Bolt
Tyres	CUBE MTB, 2.25
Pedals	CUBE PP MTB
Saddle	ACID Venec Lite
Seatpost	CUBE Performance Post, 27.2mm
Seatpost Clamp	CUBE Varioclose, 31.8mm
Quoted Weight	14.5 kg
Max System Weight	140 kg – The maximum system weight is the maximum total weight of the bike, rider and any luggage combined

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
X Small	155cm (5’0”)	163cm (5’3”)
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’4”)
XX Large	195cm (6’4”)	203cm (6’7”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	XS 27.5”	S 27.5”	M 29”	L 29”	XL 29”	XXL 29”
Seat Tube	340	370	420	470	515	560
Top Tube Horizontal	555	575	595	615	635	655
Seat Angle	74	73.5	73.5	73.5	73.5	73.5
Head Tube Angle	68.5	68.5	68.5	68.5	68.5	68.5
Chainstays	427	427	450	450	450	450
Head Tube	108.2	111	111	121.8	141.8	156.8
Wheelbase	1067.5	1082.1	1125.4	1146.4	1168.2	1189.6
BB-Height to Hub	51.5	51.5	65	65	65	65
Reach	384.4	398	409.2	426.2	440.7	456.6
Stack	595	597.6	627.3	637.4	656	669.9
Seat Post Length	350	350	400	400	400	400
Seat Post Diameter	27.2	27.2	27.2	27.2	27.2	27.2
Stem Angle	6	6	6	6	6	6
Crank Length	170	170	170	170	170	170
Max Tyre Diameter	708	708	747	747	747	747
Stem Length	45	45	60	60	75	75
Handlebar Width	680	680	680	680	680	680

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Bike Classification

Bike Classification	Category 2
Intended Use	Leisure riding and trekking under moderate effort
Intended Terrain	Paved surfaces, unpaved roads and gravel paths with moderate uphill and downhill gradients. Under these conditions, contact with uneven terrain and repeated loss of tire contact with the ground may occur. Drops are limited to 15 cm or less
Recommended riding skills	No special riding skills required

Additional Information

Manufacturer	Cube
RRP	No
