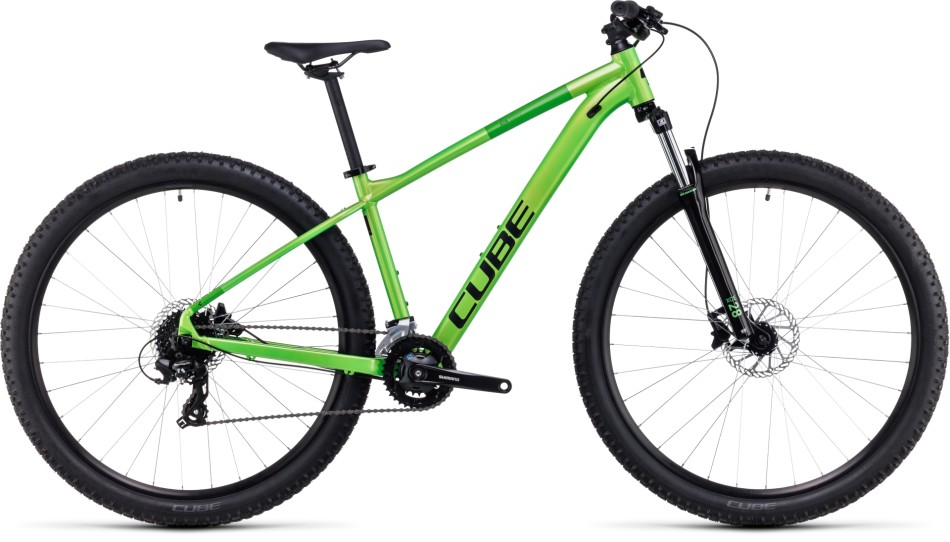

Cube Aim 2024 Green/Black Mountain Bike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

Beauty is more than skin deep: the Aim’s sleek looks are thanks to its Smooth Welded head tube and seat tube junctions.

It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.

Updated geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there’ll be an Aim that fits perfectly.

Go anywhere, do anything: a great bicycle opens up your horizons. The Aim’s comfortable suspension fork, grippy tyres and dependable disc brakes give you the comfort and control you need to explore wherever you like. For work, for play, for everyone.

Specification

Frame	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Wheel Size	27.5” X Small, Small – 29” Medium, Large, X Large
Fork	SR Suntour XCE, 100mm
Brake System	Clarks Clout 1, Hydr. Disc Brake PM/FM (160/160)
Rear Derailleur	Shimano RD-TX800, 8-Speed
Front Derailleur	Shimano FD-M315, Top Swing, 31.8mm Clamp
Shifters	Shimano SL-M315, Rapidfire-Plus
Bottom Bracket	Feimin FP-B902N, 73mm BSA
Crankset	Shimano FC-M315, 36×22T, 170mm
Cassette	Shimano CS-HG200, 12-32T
Chain	KMC Z8.3
Front Hub	CUBE Alloy Light, QR, 6-Bolt
Rear Hub	CUBE Alloy Light, QR, 6-Bolt
Rims	CUBE ZX20, 32H, Disc
Tyres	CUBE IMPAC Smartpac, 2.25
Stem	CUBE Performance Stem, 31.8mm
Handlebar	CUBE Rise Trail Bar, 680mm
Grips	ACID React
Seat Post	CUBE Performance Post, 27.2mm
Saddle	Natural Fit Venec Lite
Headset	CUBE FPH863, Semi-Integrated
Pedals	CUBE PP MTB
Weight	14.9kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
X Small	155cm (5’0”)	163cm (5’3”)
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’4”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	XS	S	M	L	XL
Seat Tube	340	370	420	470	515
Top Tube Horizontal	555	575	595	615	635
Seat Angle	74	73.5	73.5	73.5	73.5
Head Tube Angle	68.5	68.5	68.5	68.5	68.5
Chainstays	441	441	461	461	461
Head Tube	107	109.8	109.8	120.6	140.6
Wheelbase	1067.5	1096.2	1136.5	1157.5	1174.6
BB-Height to Hub	51.5	51.5	65	65	65
Reach	384.4	398	409.2	426.2	440.7
Stack	595	597.6	627.3	637.4	656
Length Seat Post	350	350	400	400	400
Diameter Seat Post	27.2	27.2	27.2	27.2	27.2
Angle Stem	6	6	6	6	6
Crank Length	170	170	170	170	170
Stem Length	50	50	60	60	70
Handlebar Width	680	680	680	680	680

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
