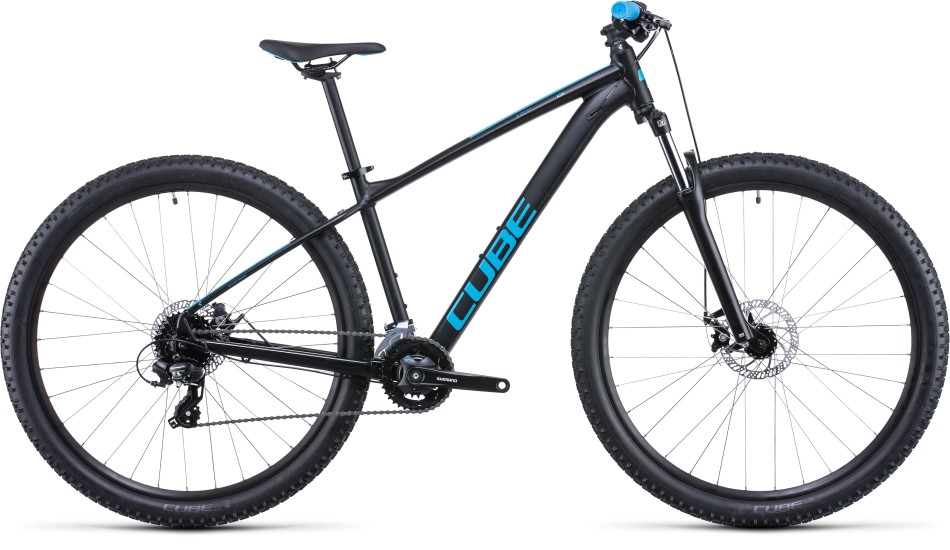

Cube Aim 2022 Black/Blue Mountain Bike
The Aim's comfortable suspension fork, grippy tyres and dependable disc brakes give you the comfort and control you need to explore wherever you like.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
At CUBE we believe the bike should just get out of the way and let you enjoy the ride. That’s why, with the brand-new Aim, we started with a Suntour 100mm suspension fork and 2.25in tyres – for grip, comfort and control.
Shimano’s 2×8-speed gears give you the range you need at the push of a button, and powerful flat mount disc brakes bring you safely to a stop. And SizeSplit, with a wider range of sizes than ever before, means every rider can find their ideal Aim.
Specification
| Frame | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Fork | SR Suntour XCE, 100mm |
| Brake System | Tektro MD-280/U310R, Mech. Disc Brake (160/160) |
| Rear Derailleur | Shimano RD-TX800, 8-Speed |
| Front Derailleur | Shimano FD-M315, Top Swing, 31.8mm Clamp |
| Shifters | Shimano SL-M315, Rapidfire-Plus |
| Crankset | Shimano FC-M315, 36×22T |
| Cassette | Shimano CS-HG200, 12-32 T |
| CHAIN | KMC Z8.3 |
| Front Hub | CUBE Alloy Light, QR, 6-Bolt |
| Rear Hub | CUBE Alloy Light, QR, 6-Bolt |
| Rims | CUBE ZX20, 32H, Disc |
| Tyres | CUBE IMPAC Smartpac, 2.25 |
| Stem | CUBE Performance Stem, 31.8mm |
| Handlebar | CUBE Rise Trail Bar, 680mm |
| Grips | ACID React |
| Seat Post | CUBE Performance Post, 27.2mm |
| Seat Clamp | CUBE Varioclose, 31.8mm |
| Saddle | Natural Fit Venec Lite |
| Headset | CUBE FPH863, Semi-Integrated |
| Pedals | CUBE PP MTB |
| Weight | 14.8kg |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| X Small | 155cm (5’0”) | 163cm (5’3”) |
| Small | 163cm (5’3”) | 171cm (5’6”) |
| Medium | 171cm (5’6”) | 179cm (5’9”) |
| Large | 179cm (5’9”) | 187cm (6’1”) |
| X Large | 187cm (6’1”) | 195cm (6’4”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | XS | S | M | L | XL |
| Seat Tube | 340 | 370 | 420 | 470 | 515 |
| Top Tube Horizontal | 555 | 575 | 595 | 615 | 635 |
| Seat Angle | 74 | 73.5 | 73.5 | 73.5 | 73.5 |
| Head Tube Angle | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
| Chainstays | 441 | 441 | 461 | 461 | 461 |
| Head Tube | 107 | 109.8 | 109.8 | 120.6 | 140.6 |
| Wheelbase | 1067.5 | 1096.2 | 1136.5 | 1157.5 | 1174.6 |
| BB-Height to Hub | 51.5 | 51.5 | 65 | 65 | 65 |
| Reach | 384.4 | 398 | 409.2 | 426.2 | 440.7 |
| Stack | 595 | 597.6 | 627.3 | 637.4 | 656 |
| Length Seat Post | 350 | 350 | 400 | 400 | 400 |
| Diameter Seat Post | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| Angle Stem | 6 | 6 | 6 | 6 | 6 |
| Crank Length | 170 | 170 | 170 | 170 | 170 |
| Stem Length | 50 | 50 | 60 | 60 | 70 |
| Handlebar Width | 680 | 680 | 680 | 680 | 680 |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Cube |
|---|---|
| RRP | N/A |
