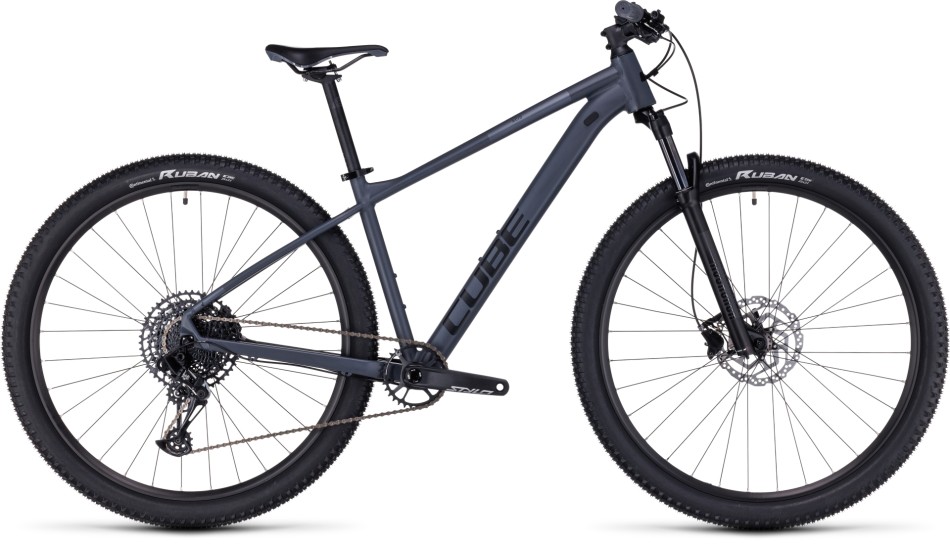

Cube Acid 2023 Grey/Pearl Mountain Bike

Available with Cube in the sizes shown above. Expect delivery within 14 days of placing an order.

The Acid’s sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance.

There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.

Updated geometry includes a lower top tube and tapered head tube for more confident handling, cables run internally for reduced maintenance, and there’s plenty of room to run wide, grippy and comfortable 2.1in tyres.

Our SizeSplit system has an expanded range too, so however tall you are there’ll be an Acid that fits perfectly. And, as your skills increase, there’s scope to fit a dropper post upgrade.

Your bike should work with you, not against you. That’s the reason we selected Sram’s wide-ranging and precise shifting Eagle 1×12 transmission for the Acid – so the right gear is always right beneath your fingers. With its dropper-ready frame and great component selection, it’s ready to rock.

Specification

Frame	Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Wheel Size	27.5” X Small, Small – 29” Medium, Large, X Large, XX Large
Fork	RockShox Judy Silver TK AIR, 100mm, PopLoc
Brake System	Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160)
Rear Derailleur	Sram NX Eagle, 12-Speed
Shifter	Sram NX Eagle Trigger
Bottom Bracket	Sram Power Spline, 73mm BSA
Crankset	Sram Stylo Eagle DUB, 32T, 170mm
Cassette	Sram PG-1210 Eagle, 11-50T
Chain	Sram SX Eagle
Handlebar	CUBE Rise Trail Bar, 680mm
Stem	CUBE Performance Stem SLX, 31.8mm
Grips	ACID React
Headset	CUBE FPH868, Semi-Integrated
Front Hub	Shimano Deore HB-M6000, QR, Centerlock
Rear Hub	Shimano Deore HB-M6000, QR, Centerlock
Rims	CUBE ZX20, 32H, Disc
Tyres	Schwalbe Smart Sam, Active, 2.25
Seat Post	CUBE Performance Post, 27.2mm
Saddle	Natural Fit Venec Lite
Pedals	CUBE PP MTB
Weight	13.3kg

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
X Small	155cm (5’0”)	163cm (5’3”)
Small	163cm (5’3”)	171cm (5’6”)
Medium	171cm (5’6”)	179cm (5’9”)
Large	179cm (5’9”)	187cm (6’1”)
X Large	187cm (6’1”)	195cm (6’4”)
XX Large	195cm (6’4”)	203cm (6’7”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	XS 27.5”	S 27.5”	M 29”	L 29”	XL 29”	XXL 29”
Seat Tube	340	370	420	470	515	560
Top Tube Horizontal	555	575	595	615	635	655
Seat Angle	74	73.5	73.5	73.5	73.5	73.5
Head Tube Angle	68.5	68.5	68.5	68.5	68.5	68.5
Chainstays	427	427	450	450	450	450
Head Tube	108.2	111	111	121.8	141.8	156.8
Wheelbase	1067.5	1082.1	1125.4	1146.4	1168.2	1189.6
BB-Height to Hub	51.5	51.5	65	65	65	65
Reach	384.4	398	409.2	426.2	440.7	456.6
Stack	595	597.6	627.3	637.4	656	669.9
Seat Post Length	350	350	400	400	400	400
Seat Post Diameter	27.2	27.2	27.2	27.2	27.2	27.2
Stem Angle	6	6	6	6	6	6
Crank Length	175	175	175	175	175	175
Max Tyre Diameter	708	708	747	747	747	747
Stem Length	50	50	60	60	70	70
Handlebar Width	680	680	680	680	680	680

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
