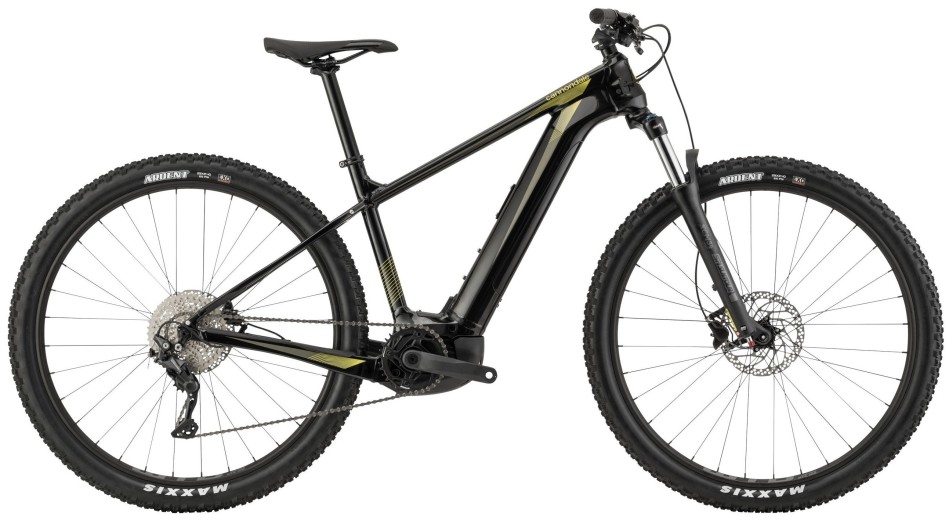

Cannondale Trail Neo 3 2023 eBike
Light and lively, stiff and snappy on everything from serious singletrack to city streets, Trail’s progressive frame and cleanly integrated Bosch drive unit showcase our unmatched aluminum expertise.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Cube Reaction Hybrid Pro 800 2025 Grey/Black eMTB
Starting at: £2,799.00
-
Mondraker Chaser 2025 Orange/Grey eMTB
Starting at: £4,599.00
Details
Available with Cannondale in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
Light and lively, stiff and snappy on everything from serious singletrack to city streets, Trail’s progressive frame and cleanly integrated Bosch drive unit showcase our unmatched aluminum expertise.
Short chainstays for agility and traction, a slack head angle for solid stability, and a battery and drive unit positioned as low and centrally as possible create a surprisingly nimble, yet steady feel.
True mountain bike specs distinguish Trail Neo: powerful hydraulic brakes, wide handlebars and short stems. But it’s versatile too, with pre-wired light cables and clever mounts for racks and fenders.
Specification
| Frame | SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148×12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts |
| Fork | SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset |
| Rims | WTB STX i25 TCS, 32h, tubeless ready |
| Hubs | (F) Shimano MT400, 15×110mm thru-axle / ® Shimano MT400, 12×148mm thru-axle |
| Spokes | DT Swiss Champion |
| Tyres | Maxxis Ardent, 27.5/29 × 2.4”, Wire 60TPI Exo |
| Crank | FSA Bosch E-Bike w/ custom Ai offset, 34T |
| Chain | Shimano HG54, 10-Speed |
| Cassette | Shimano Deore, 11-42, 10-Speed |
| Rear Derailleur | Shimano Deore M4100 |
| Shifter | Shimano Deore M4100, 10-speed |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Grips | Fabric Funguy |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
| Headset | Integrated Sealed Bearing, Tapered |
| Brakes | Shimano MT200 hydraulic disc, 180mm RT10 rotors |
| Display | Bosch Purion |
| Battery | Bosch PowerTube 500Wh |
| Charger | Bosch 2A |
| Drive Unit | Bosch Performance Line CX |
| Saddle | Cannondale Ergo XC |
| Seatpost | Cannondale 4, 6061 Alloy, 31.6 × 350mm |
| Extras | Pre-installed light cables |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| S | 162cm (5’4”) | 172cm (5’8”) |
| M | 170cm (5’7”) | 182cm (6’0”) |
| L | 182cm (6’0”) | 190cm (6’3”) |
| XL | 193cm (6’4”) | 203cm (6’8”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | S | M | L | XL |
| A – Seat Tube Length | 40.0cm | 43.5cm | 47.0cm | 50.0cm |
| B – Top Tube Horizontal | 58.4cm | 59.9cm | 63.2cm | 66.5cm |
| C – Top Tube Actual | 56.9cm | 57.8cm | 60.8cm | 63.9cm |
| D – Head Tube Angle | 67.0° | 67.0° | 67.0° | 67.0° |
| E – Seat Tube Angle | 74.0° | 74.0° | 74.0° | 74.0° |
| F – Standover | 75.0cm | 75.0cm | 75.8cm | 75.6cm |
| G – Head Tube Length | 12.0cm | 12.0cm | 13.0cm | 14.0cm |
| H – Wheelbase | 116.3cm | 117.8cm | 121.3cm | 124.6cm |
| I – Front Center | 70.1cm | 71.6cm | 75.0cm | 78.4cm |
| J – Chain Stay Length | 47.0cm | 47.0cm | 47.0cm | 47.0cm |
| K – Bottom Bracket Drop | 6.5cm | 6.5cm | 6.5cm | 6.5cm |
| L – Bottom Bracket Height | 31.5cm | 31.5cm | 31.5cm | 31.5cm |
| M – Fork Rake | 5.1cm | 5.1cm | 5.1cm | 5.1cm |
| N -Trail | 10.6cm | 10.6cm | 10.6cm | 10.6cm |
| O – Stack | 62.5cm | 62.5cm | 63.4cm | 64.3cm |
| P – Reach | 40.5cm | 42.00cm | 45.0cm | 48.0cm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Cannondale |
|---|---|
| RRP | No |
