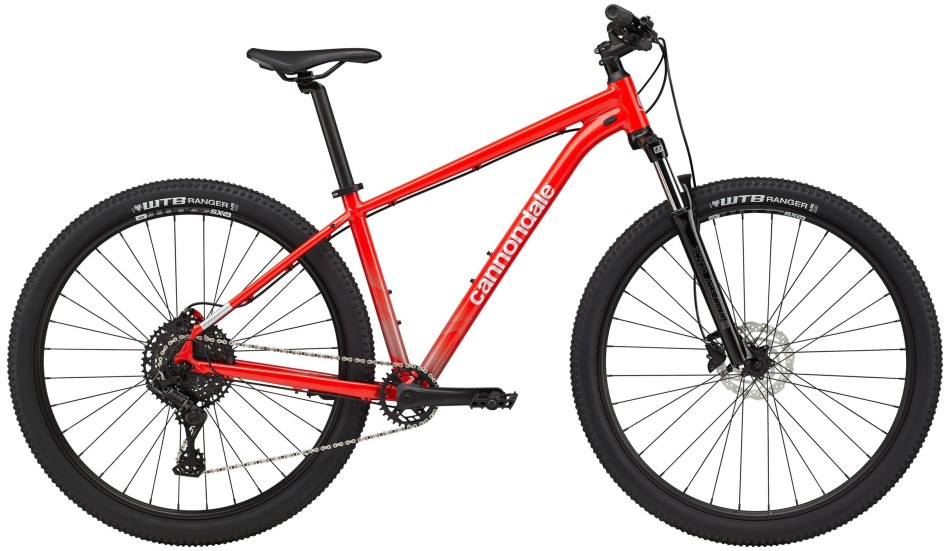

Cannondale Trail 5 2023 Red Mountain Bike
A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Marin Rift Zone E2 2024 eMTB
Starting at: £4,494.99
-
Hope Tech V4 Brake Pads Sintered
£20.00 -
Mondraker Dusty R 2024 eGravel Bike
Starting at: £4,299.00
Details
Available with Cannondale in the sizes shown above. Expect delivery within 3-4 working days of placing an order.
A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
Low-impact trails, gravel roads, leisurely ride
Specification
| Frame | SmartForm C3 Alloy, SAVE, 1-1/8” headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73 |
| Fork | SR Suntour XCM, 100mm, coil, 42mm offset (27.5”) 46mm offset (29”) |
| Rims | WTB SX19, 32h |
| Hubs | (F) Shimano HB-TX505, QR / ® Shimano FH-TX505, QR |
| Spokes | Stainless Steel, 14g |
| Tyres | WTB Ranger Comp, 29×2.25” (27.5×2.25” – XS, SM), DNA Compound |
| Pedals | Cannondale Platform |
| Crank | Prowheel, Charm 30T |
| Bottom Bracket | Sealed bearing cartridge, square taper |
| Chain | KMC X10, 10-speed |
| Cassette | microSHIFT, 11-48T, 10-speed |
| Rear Derailleur | microSHIFT Advent X |
| Shifter | microSHIFT Advent X, 10-Speed |
| Handlebar | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
| Grips | Cannondale Dual-Density |
| Stem | 6061 Alloy, 31.8, 7° |
| Headset | Semi-Integrated, 1-1/8” |
| Brakes | Tektro M275 hydraulic disc, 160/160mm rotors |
| Saddle | Cannondale Stage 3 |
| Seatpost | Cannondale 3, 6061 Alloy, 31.6 × 350mm (XS – SM), 400mm (MD-XL) |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| Small | 154cm (5’1”) | 165cm (5’5”) |
| Medium | 162cm (5’4”) | 175cm (5’9”) |
| Large | 172cm (5’8”) | 182cm (6’0”) |
| X Large | 182cm (6’0”) | 190cm (6’3”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | X Small | Small | Medium | Large | X Large |
| Wheel Size | 27.5 | 27.5 | 29 | 29 | 29 |
| A – Seat Tube Length | 33.0cm | 38.1cm | 43.2cm | 47.0cm | 53.3cm |
| B – Top Tube Horizontal | 53.5cm | 57.7cm | 60.9cm | 63.4cm | 65.9cm |
| C – Top Tube Actual | N/A | N/A | N/A | N/A | N/A |
| D – Head Tube Angle | 68.0° | 68.0° | 68.0° | 68.0° | 68.0° |
| E – Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| F – Standover | 67.3cm | 71.0cm | 76.8cm | 79.5cm | 83.9cm |
| G – Head Tube Length | 9.5cm | 9.5cm | 10.5cm | 11.5cm | 12.5cm |
| H – Wheelbase | 105.4cm | 109.8cm | 114.0cm | 116.6cm | 119.2cm |
| I – Front Center | 62.1cm | 66.5cm | 70.2cm | 72.8cm | 75.4cm |
| J – Chain Stay Length | 44.0cm | 44.0cm | 44.0cm | 44.5cm | 44.5cm |
| K – Bottom Bracket Drop | 6.0cm | 6.0cm | 6.5cm | 6.5cm | 6.5cm |
| L – Bottom Bracket Height | 29.3cm | 29.3cm | 30.7cm | 30.7cm | 30.7cm |
| M – Fork Rake | 4.2cm | 4.2cm | 4.6cm | 4.6cm | 4.6cm |
| N – Trail | 9.7cm | 9.7cm | 10.1cm | 10.1cm | 10.1cm |
| O – Stack | 57.3cm | 59.1cm | 62.3cm | 63.2cm | 64.1cm |
| P – Reach | 36.5cm | 40.2cm | 42.5cm | 44.7cm | 46.9cm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Cannondale |
|---|---|
| RRP | No |
