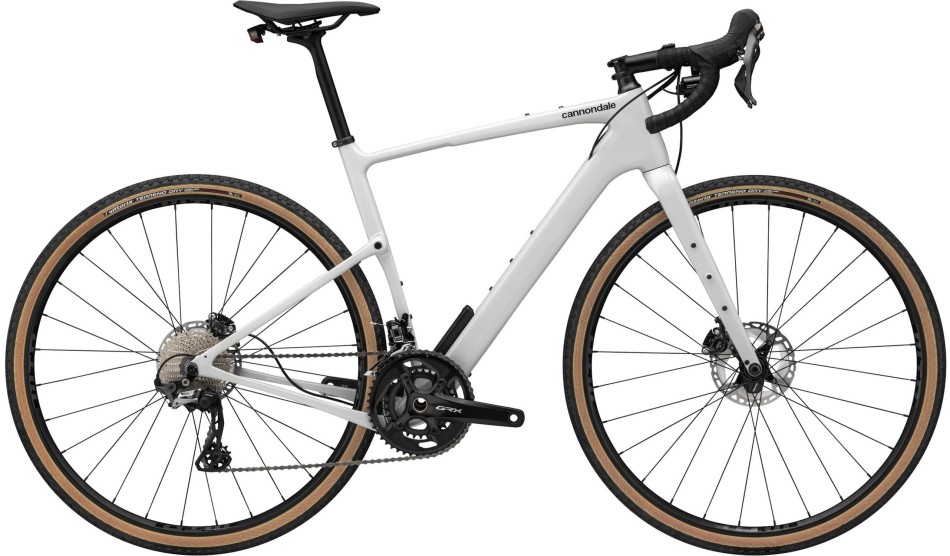

Cannondale Topstone Carbon 2 L 2023 Chalk Gravel Bike

Available with Cannondale in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits.

Delivering a smooth ride without the added weight and complexity of a shock and links, Kingpin is our answer for the most demanding gravel riders. Whether you need more comfort to go long, more traction to push beyond or more give to take on the tech – Kingpin is the maintenance-free, lightweight answer to your prayers.

On every ride, SmartSense has your back. SmartSense’s system of intelligent lights (and optional rear-facing radar) increases your visibility out on the open road and makes it easy to ride smart.

Lightweight Topstone Carbon frameset with Kingpin suspension / SmartSense Light equipped

Shimano GRX 800 11-speed gravel group / SAVE Carbon seatpost

WTB KOM Light rims

Specification

Frame	Topstone Carbon, Kingpin suspension system, SmartSense equipped, 12×142mm thru-axle, 27.2 dropper post ready, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts
Fork	Topstone Carbon, 1-1/8” to 1.5” steerer, 55mm OutFront offset, flat mount disc, internal routing, 12×100 thru-axle, triple bottle/gear mounts, fender mounts
Rims	WTB KOM Light i23 TCS, 700c, 28h, tubeless ready
Hubs	(F) Formula cartridge bearing, 12×100mm, centerlock / ® Formula cartridge bearing, 12×142mm, centerlock
Spokes	Stainless Steel, 14g
Tyres	WTB Riddler TCS Light, 700 × 45c, tubeless ready
Pedals	Not included
Crank	Shimano GRX 800, 48/31
Bottom Bracket	Shimano BSA 68
Chain	Shimano HG701, 11-speed
Cassette	Shimano HG800, 11-34, 11-speed
Front Derailleur	Shimano GRX 800, braze-on
Rear Derailleur	Shimano GRX 810, Shadow RD+
Shifters	Shimano GRX 800, 11-speed
Handlebar	Cannondale 2 ShortDrop, 7050 alloy, 12 deg flare drop
Grips	Fizik Solocush Soft, 3mm
Stem	Cannondale 2, 6061 Alloy, 31.8, 7°
Headset	Integrated, Carbon, 1-1/8” – 1-1/2”
Brakes	Shimano GRX 800 hydraulic disc, 160/160mm MT800 rotors
Saddle	Fizik Terra Argo X5, S-alloy rails
Seatpost	SAVE Carbon SmartSense, 27.2, 350mm (XS-L), 400mm (XL)
Connectivity	Cannondale Wheel Sensor
Extras	SmartSense with Lights

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
XS	147cm (4’10”)	165cm (5’5”)
SM	160cm (5’3”)	175cm (5’9”)
MD	170cm (5’7”)	185cm (6’1”)
LG	177cm (5’10”)	193cm (6’4”)
XL	182cm (6’0”)	203cm (6’8”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	XS	SM	MD	LG	XL
A – Seat Tube Length	41.0cm	45.8cm	50.5cm	55.3cm	59.0cm
B – Top Tube Horizontal	53.3cm	54.4cm	55.7cm	57.2cm	58.7cm
C – Top Tube Actual	50.3cm	51.6cm	53.2cm	55.0cm	56.7cm
D – Head Tube Angle	70.0°	71.2°	71.2°	71.2°	71.2°
E – Seat Tube Angle Effective	73.1°	73.1°	73.1°	73.1°	73.1°
E – Seat Tube Angle	71.4°	71.6°	71.8°	71.9°	72.1°
F – Standover	70.4cm	74.5cm	78.5cm	82.3cm	85.7cm
G – Head Tube Length	10.5cm	12.3cm	15.0cm	17.7cm	20.5cm
H – Wheelbase	101.0cm	101.3cm	102.9cm	104.4cm	106.1cm
I – Front Center	60.1cm	60.3cm	61.7cm	63.3cm	64.9cm
J – Chain Stay Length	42.0cm	42.0cm	42.0cm	42.0cm	42.0cm
K – Bottom Bracket Drop	7.4cm	6.9cm	6.7cm	6.7cm	6.4cm
L – Bottom Bracket Height	27.8cm	28.3cm	28.5cm	28.5cm	28.8cm
M – Fork Rake	5.5cm	5.5cm	5.5cm	5.5cm	5.5cm
N – Trail	6.9cm	6.2cm	6.2cm	6.2cm	6.2cm
0 – Stack	53.4cm	55.1cm	57.4cm	60.0cm	62.4cm
P – Reach	37.1cm	37.7cm	38.3cm	39.0cm	39.7cm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
