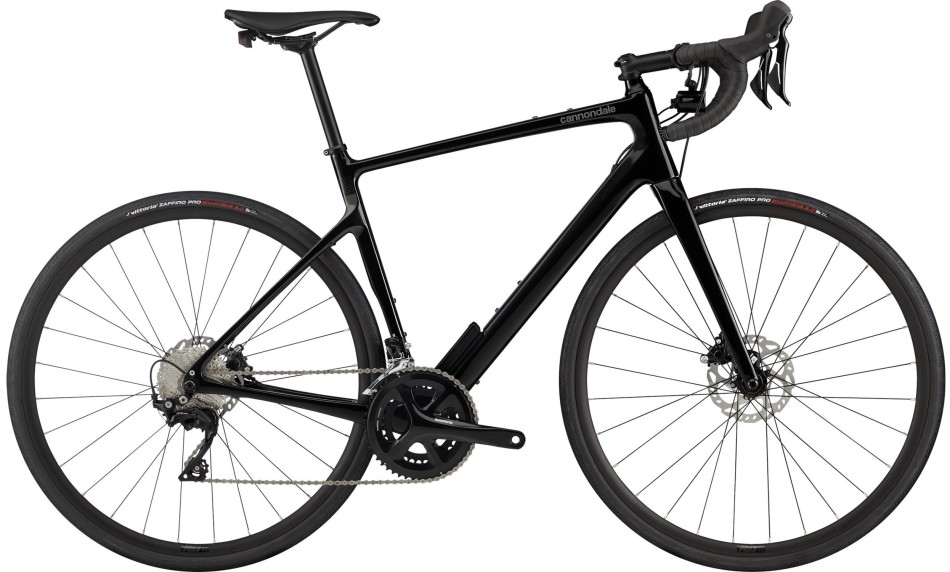

Cannondale Synapse Carbon 3 L 2024 Black Road Bike

Available with Cannondale in the sizes shown above. Expect delivery within 3-4 working days of placing an order.

With Synapse, comfort is built in. Discreet flex zones in the rear triangle, seat tube and seatpost absorb road chatter and bumps without adding weight or isolating you from the ride experience.

Lightweight carbon construction. Subtle aerodynamic shaping of the frame and fork. Size-specific design for perfectly tuned stiffness. It all adds up to a machine that loves to fly.

With a comfortably balanced riding position, confidence-inspiring handling, room for 35mm wide tires for cushion and grip, and plenty of gear/bottle mounts, Synapse is ready to rock on any road, anywhere.

Lightweight Synapse Carbon Frameset / Full SmartSense system with radar and lights

Specification

Frame	Synapse Carbon, SmartSense enabled, Proportional Response size-specific design, BSA threaded BB, flat mount brake, 12×142mm thru-axle, thru-tube internal cable routing with Switch Plate, removable fender bridge, hidden rack/fender mounts
Fork	Synapse Carbon, integrated crown race, Proportional Response size-specific design, 12×100mm thru-axle, thru-tube internal routing, hidden fender mounts
Rims	RD 2.1, 28h, 21mm IW
Hubs	(F) Formula CL-712, 12×100mm centerlock / ® Formula RXC-400, 12×142mm centerlock
Spokes	Stainless Steel, 14g
Tyres	Vittoria Zaffiro Pro Reflective, 700 × 30c
Pedals	Not included
Crank	Shimano RS510, BSA, 50/34
Bottom Bracket	Shimano BSA
Chain	Shimano HG701, 11-speed
Cassette	Shimano 105 11-34, 11-speed
Front Derailleur	Shimano 105, braze-on
Rear Derailleur	Shimano 105 GS
Shifters	Shimano 105 hydraulic disc, 11-speed
Handlebar	Cannondale 3, 6061 Alloy, Compact
Grips	Fabric Knurl Bar Tape
Stem	Cannondale 3, 6061 Alloy, 31.8, 7°
Headset	Synapse Sealed Bearing, integrated, 1-1/4”-1-1/8”
Brakes	Shimano 105 hydraulic disc, 160/160mm RT70 rotors
Saddle	Fizik Aliante Delta, S-alloy rails
Seatpost	Cannondale 3 SmartSense, 6061 Alloy, 27.2 × 350mm (48-56), 400mm (58-61)
Connectivity	Cannondale Wheel Sensor
Extras	SmartSense with Lights, Trainer-compatible thru-axle

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
48	160cm (5’3”)	170cm (5’7”)
51	165cm (5’5”)	175cm (5’9”)
54	170cm (57”)	180cm (5’9”)
56	177cm (5’8”)	185cm (6’1”)
58	182cm (6’0”)	193cm (6’4”)
61	187cm (6’2”)	193cm (6’6”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	48	51	54	56	58	61
A – Seat Tube Length	40.7cm	44.3cm	48.00cm	52.0cm	55.0cm	59.0m
B – Top Tube Horizontal	53.3cm	54.4cm	55.5cm	56.7cm	57.9cm	59.8cm
C – Top Tube Actual	51.0	52.1	53.3	54.7	56.0	57.9
D – Head Tube Angle	71.3°	71.4°	73.1°	73.2°	73.3°	73.4°
E – Seat Tube Angle	73.0°	73.0°	73.0°	73.0°	73.0°	73.0°
F – Standover	71.2cm	74.2cm	77.3cm	78.7cm	83.3cm	86.8cm
G – Head Tube Length	10.9cm	13.0cm	14.3cm	16.4cm	18.7cm	21.8cm
H – Wheelbase	99.1cm	100.2cm	98.7cm	99.8cm	101.1cm	102.8cm
I – Front Center	58.8cm	59.8cm	58.3cm	59.4cm	60.6cm	62.3cm
J – Chain Stay Length	41.5cm	41.5cm	41.5cm	41.5cm	41.5cm	41.5cm
K – Bottom Bracket Drop	7.5cm	7.5cm	7.3cm	7.3cm	7.0cm	7.0cm
L – Bottom Bracket Height	27.0cm	27.0cm	27.2cm	27.2cm	27.5cm	27.5cm
M – Fork Rake	5.5cm	5.5cm	5.8cm	5.7cm	5.6cm	5.6cm
N – Trail	5.9cm	5.8cm	5.8cm	5.7cm	5.6cm	5.6cm
0 – Stack	53.0cm	55.0cm	57.0cm	59.0cm	61.0cm	64.0cm
P – Reach	37.1cm	37.6cm	38.1cm	38.7cm	39.3cm	40.2cm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
