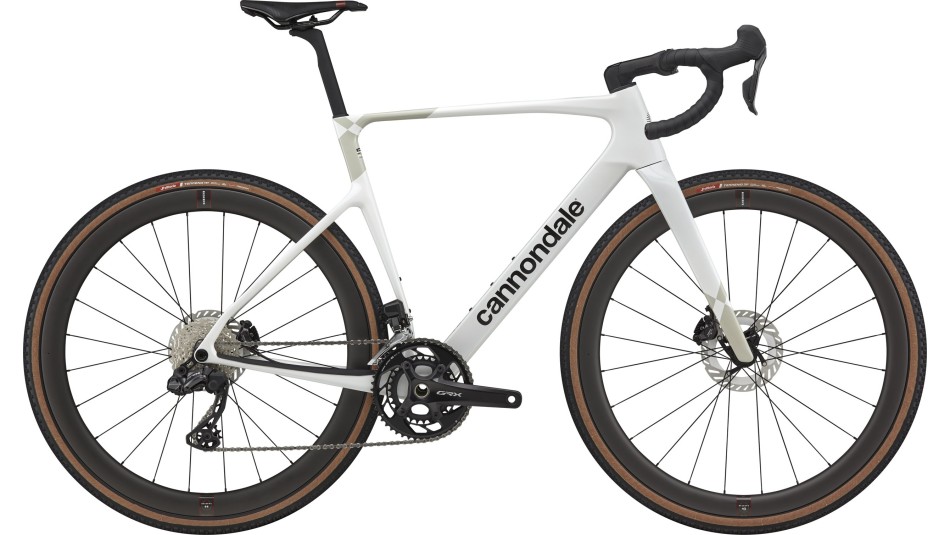

Cannondale SuperX Carbon 2 2025 Cashmere Gravel Bike

Available with Cannondale in the sizes shown above. Expect delivery within 3-4 working days of placing an order.

A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…

Elite gravel racing, KOM hunting, Going like hell

Precision Meets Power. SuperX 2 is a masterclass in controlled chaos. The lightweight carbon frame pairs perfectly with Reserve GR wheels, designed to sail through gravel and eat up km’s. Shimano GRX Di2 electronic shifting is lightning-fast and smooth-as-silk, and hydraulic disc brakes to keep control at your fingertips. Vittoria Terreno tires deliver maximum grip on race day, while aero tube shapes cut through wind. Every detail of SuperX 2 makes this bike a purebred racer, bound for the top step.

Specification

Frame	SuperX Carbon, Proportional Response construction, internal cable routing, 12×142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Fork	SuperX Carbon, integrated crown race, 12×100mm thru-axle, flat mount disc, internal routing, 1-1/8” to 1-1/2” Delta steerer, 55mm offset
Headset	Integrated, 1-1/8” – 1.5”
Rear Derailleur	Shimano GRX 825, Di2, Shadow RD+
Front Derailleur	Shimano GRX 825 Di2, braze-on
Shifters	Shimano GRX 825, Di2, 12-speed
Chain	Shimano M8100, 12-speed
Crank	Shimano RX 820, 48/31
Cassette	Shimano Ultegra R8100, 11-34, 12-speed
Bottom Bracket	Shimano BSA 68
Brakes	Shimano GRX 820, 160/160mm CL800 rotors
Brake Levers	Shimano GRX Di2 RX825 hydraulic disc
Front Hub	DT Swiss 370, 12×100mm centerlock
Rear Hub	DT Swiss 370, 12×142mm centerlock
Rims	Reserve 40/44 GR, Carbon, Turbulent Aero tech, 24h, tubeless ready
Spokes	Sapim CX-Delta J-bend
Tyres	Vittoria Terreno T50, 700×40c, tubeless ready
Handlebar	Vision Trimax Aero Alloy
Stem	Cannondale C1 Conceal, Alloy, 31.8, -6°
Bar Tape	Cannondale Bar Tape, 3.5mm
Saddle	Prologo Dimension AGX T4.0
Seatpost	Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)
Connectivity	Cannondale Wheel Sensor
Extras	Reserve Fillmore valves, Shimano Di2 charger

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
46	152cm (4’11”)	162cm (5’4”)
51	160cm (5’3”)	170cm (5’7”)
54	165cm (5“5”)	175cm (5’9”)
56	172cm (5’7”)	182cm (5’11”)
58	177cm (5’9”)	187cm (6’2”)
61	182cm (6’0”)	193cm (6’4”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	46	51	54	56	58	61
A – Seat Tube Length cm	44.0	48.8	52.4	54.6	56.6	58.9
B – Top Tube Horizontal cm	51.0	52.1	54.0	55.8	57.5	59.4
C – Top Tube Actual cm	47	48.4	50.4	52.1	53.8	55.6
D – Head Tube Angle	70.0°	71.0°	71.0°	71.0°	71.0°	71.0°
E – Seat Tube Angle	74.3°	74.3°	73.7°	73.3°	72.9°	72.3°
F – Standover cm	74.6	78.2	81.2	83.2	83.6	84.9
G – Head Tube Length cm	8.6	10.8	13.2	15.3	17.7	19.8
H – Wheelbase cm	99.8	100.5	102.0	103.4	104.9	106.2
I – Front Center cm	58.8	59.3	60.7	62.1	63.6	64.8
J – Chain Stay Length cm	42.2	42.2	42.2	42.2	42.2	42.2
K – Bottom Bracket Drop cm	7.7	7.2	6.9	6.9	6.7	6.7
L – Bottom Bracket Height cm	28.3	28.8	29.0	29.0	29.3	29.3
M – Fork Rake cm	5.5	5.5	5.5	5.5	5.5	5.5
N – Trail cm	7.2	6.5	6.5	6.5	6.5	6.5
0 – Stack cm	51.5	53.5	55.5	57.5	59.5	61.5
P – Reach cm	36.5	37.1	37.8	38.5	39.2	39.8
Q – Axle to Crown cm	40.0	40.0	40.0	40.0	40.0	40.0

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
